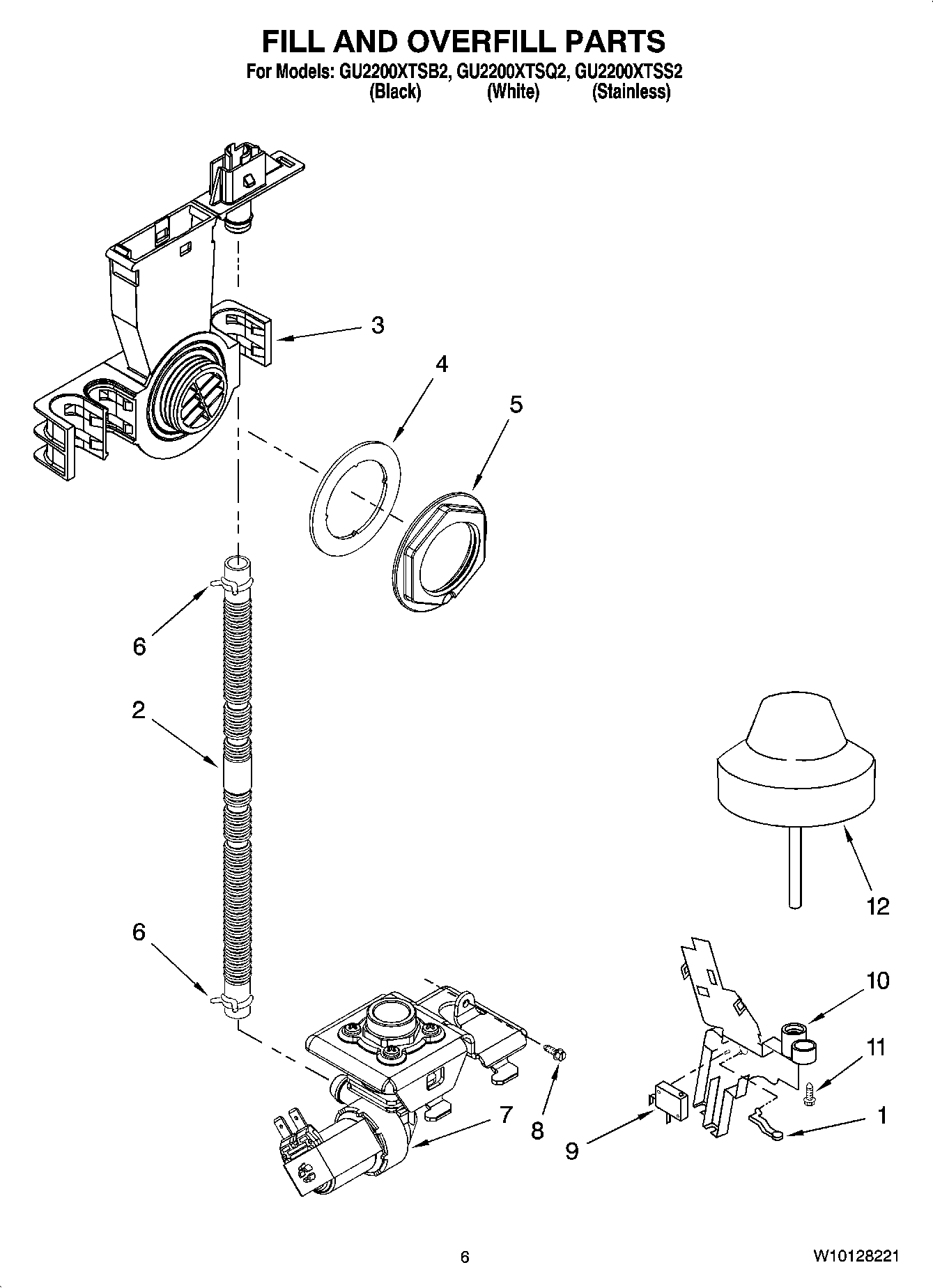

GU2200XTSB2 06 – FILL AND OVERFILL PARTS

Written by

Products

Position	Product
1	WP8268892 Whirlpool Dishwasher Lever
2	W10878507 Whirlpool Inlet Hose
3	WPW10195536 Whirlpool Water Inlet Valve
4	WP8531323 Whirlpool Gasket Seal
5	WPW10508676 Whirlpool Dishwasher Tube Nut
6	WP596669 Whirlpool Hose Clamp
7	WPW10158389 Whirlpool Dishwasher Inlet Valve
8	WP489069 Whirlpool Compactor Screw
9	WP8268909 Whirlpool Dishwasher Switch
10	WPW10175383 Whirlpool Dishwasher Standpipe
11	WP304231 Whirlpool Dishwasher Screw
12	WP8268895 Whirlpool Dishwasher Float Assembly
