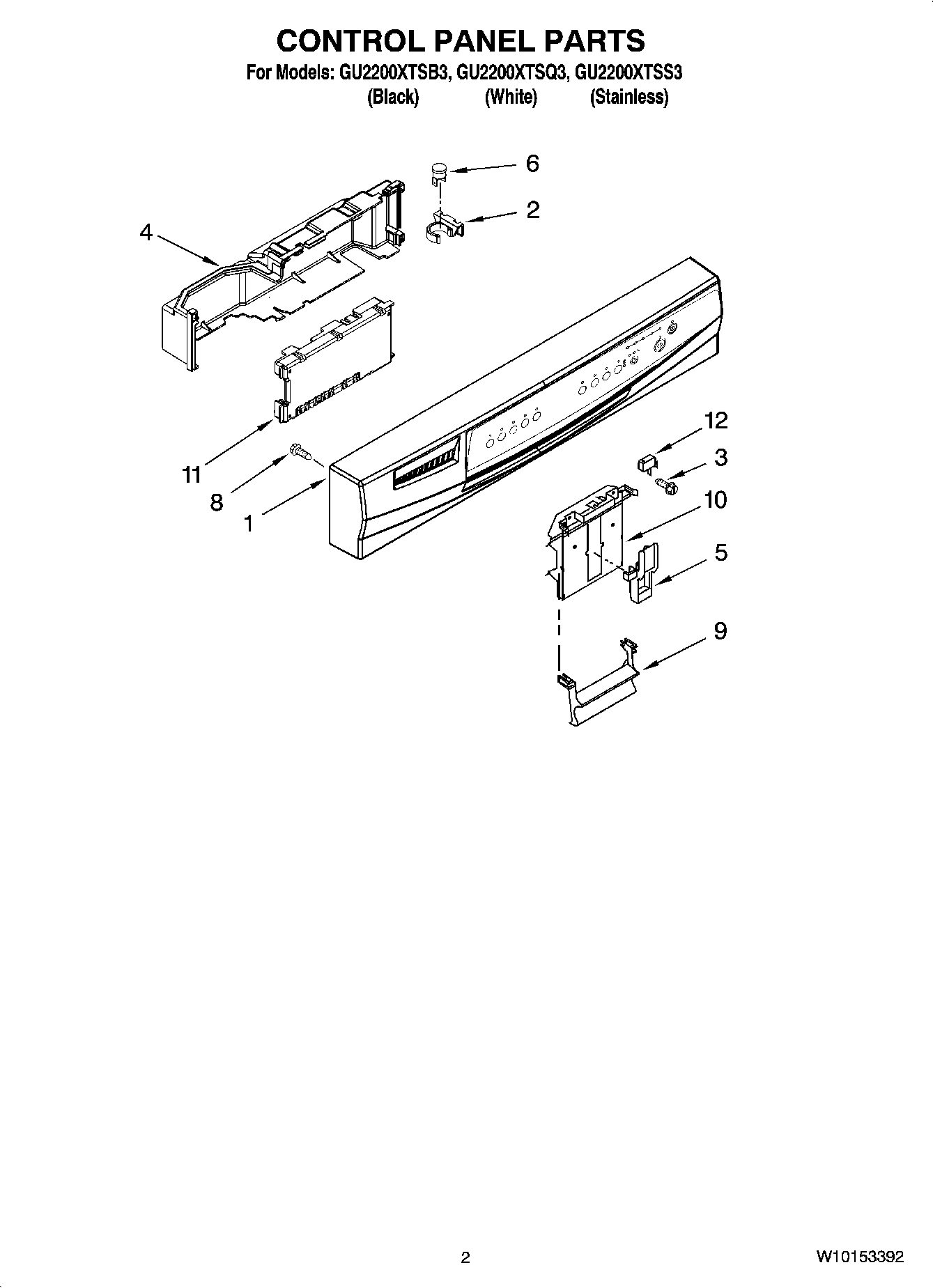

GU2200XTSB3 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Asm. Includes Active Overlay & Insert (White)
1	Console Asm. Includes Active Overlay & Insert (Black)
2	Clip, BI-Metal
3	WP3400412 Whirlpool Dishwasher Screw
4	Cover Control Shield Assembly
5	WP8524471 Whirlpool Dishwasher Actuator
6	W10258275 Whirlpool Dishwasher Bimetal Fuse
8	WPW10348409 Whirlpool Screw
9	WP8534985 Whirlpool Dishwasher Handle
9	WP8534984 Whirlpool Dishwasher Handle
10	8193882 Whirlpool Dishwasher Primary Latch Bolt
11	WPW10084142 Whirlpool Dishwasher Electronic Control Board + Core
12	WP8269209 Whirlpool Door Switch
