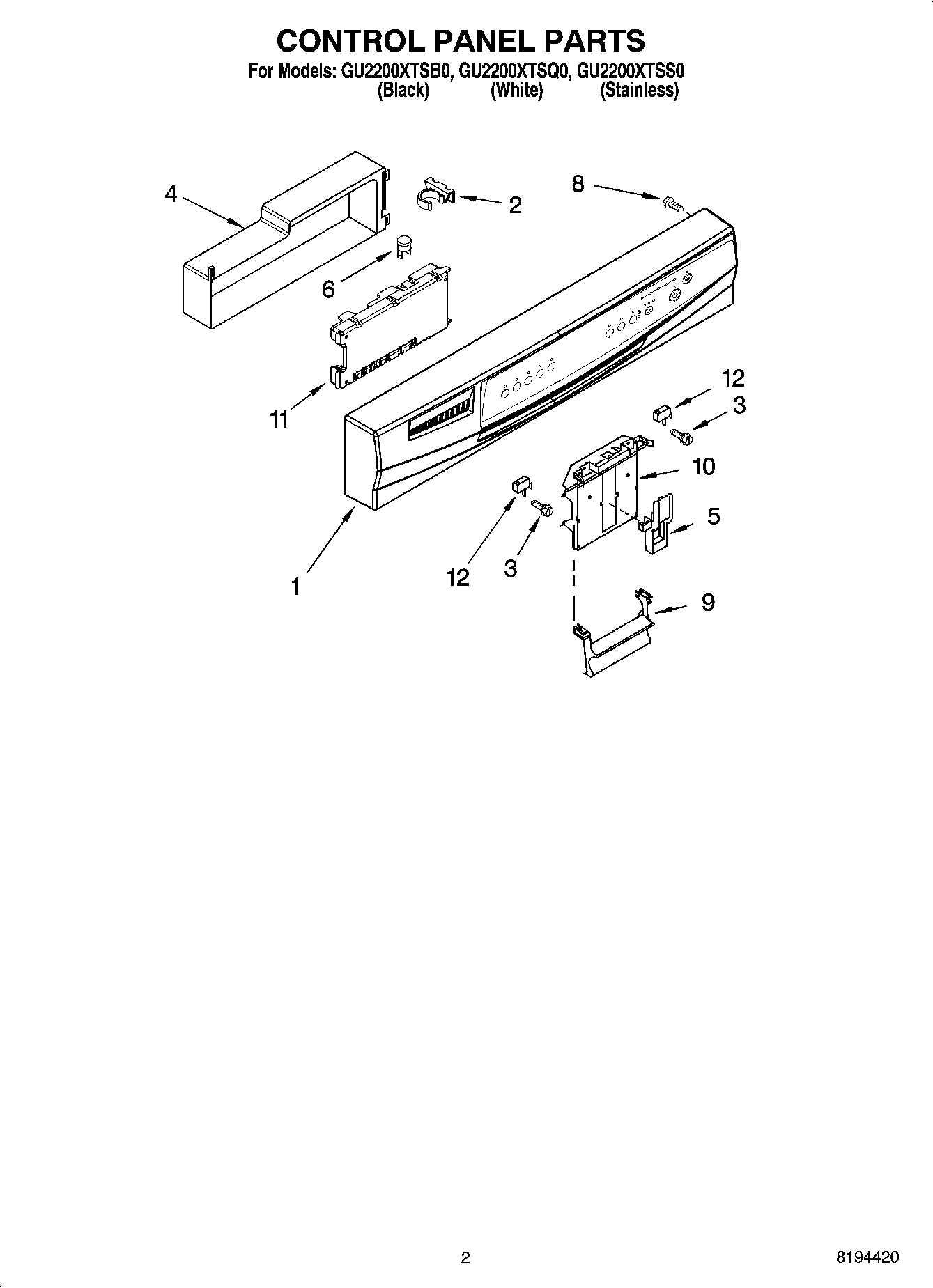

GU2200XTSQ0 02 – CONTROL PANEL PARTSadmin2025-04-26T11:38:13+00:00GU2200XTSQ0 02 – CONTROL PANEL PARTS ProductsPositionProduct1Console Asm. Includes Active Overlay & Insert (White)1Console Asm. Includes Active Overlay & Insert (Black)2Clip, BI-Metal3WP3400412 Whirlpool Dishwasher Screw4Cover Control Shield Assembly5WP8524471 Whirlpool Dishwasher Actuator6W10258275 Whirlpool Dishwasher Bimetal Fuse8WPW10348409 Whirlpool Screw9WP8534985 Whirlpool Dishwasher Handle9WP8534984 Whirlpool Dishwasher Handle108193882 Whirlpool Dishwasher Primary Latch Bolt11WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board12WP8269209 Whirlpool Door Switch
