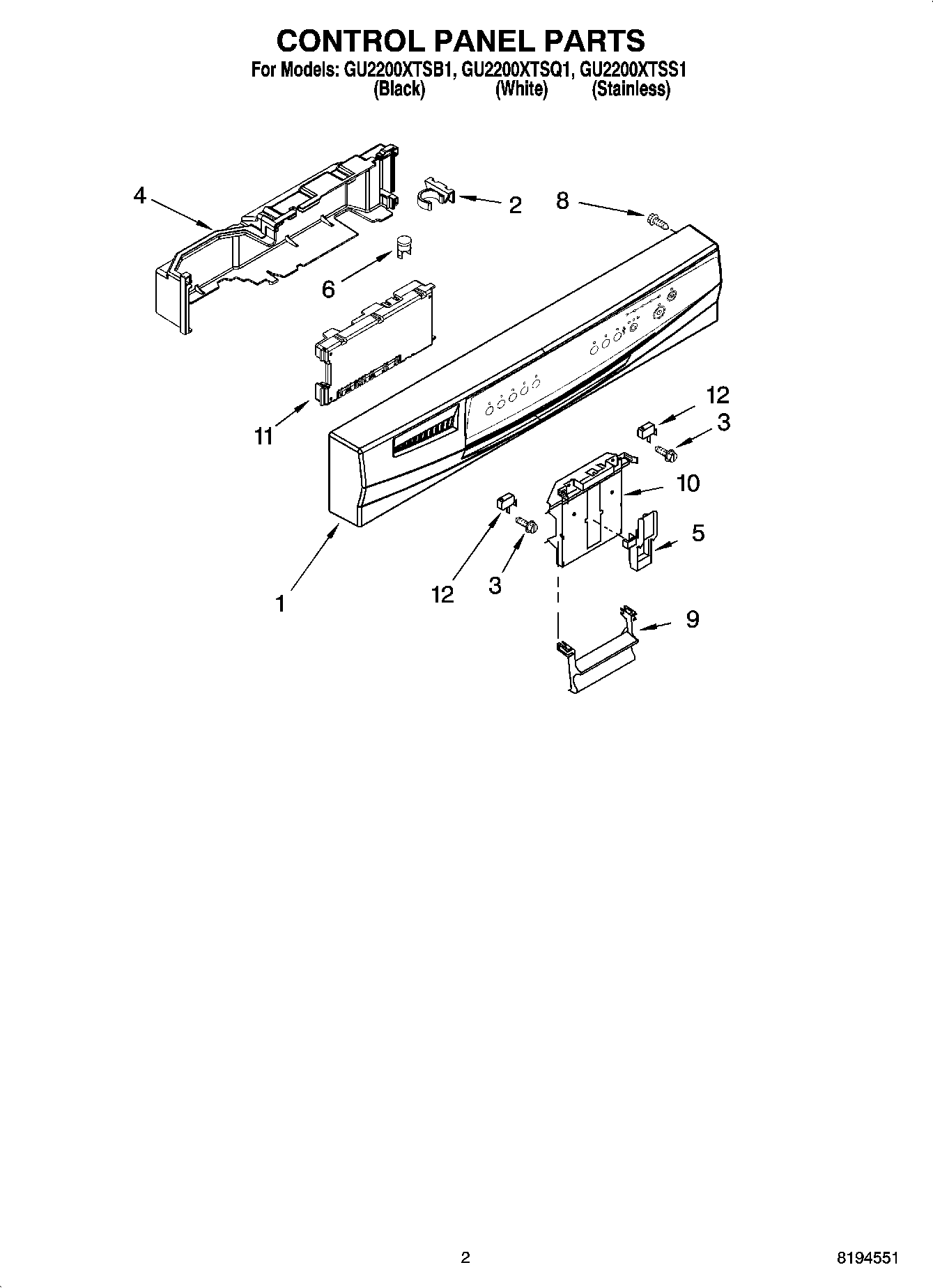

GU2200XTSQ1 02 – CONTROL PANEL PARTS

GU2200XTSQ1 02 – CONTROL PANEL PARTS

Written by

in

GU2200XTSQ1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Asm. Includes Active Overlay & Insert (White)
1Console Asm. Includes Active Overlay & Insert (Black)
2Clip, BI-Metal
3WP3400412 Whirlpool Dishwasher Screw
4Cover Control Shield Assembly
5WP8524471 Whirlpool Dishwasher Actuator
6W10258275 Whirlpool Dishwasher Bimetal Fuse
8WPW10348409 Whirlpool Screw
9WP8534985 Whirlpool Dishwasher Handle
9WP8534984 Whirlpool Dishwasher Handle
108193882 Whirlpool Dishwasher Primary Latch Bolt
11WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
12WP8269209 Whirlpool Door Switch
