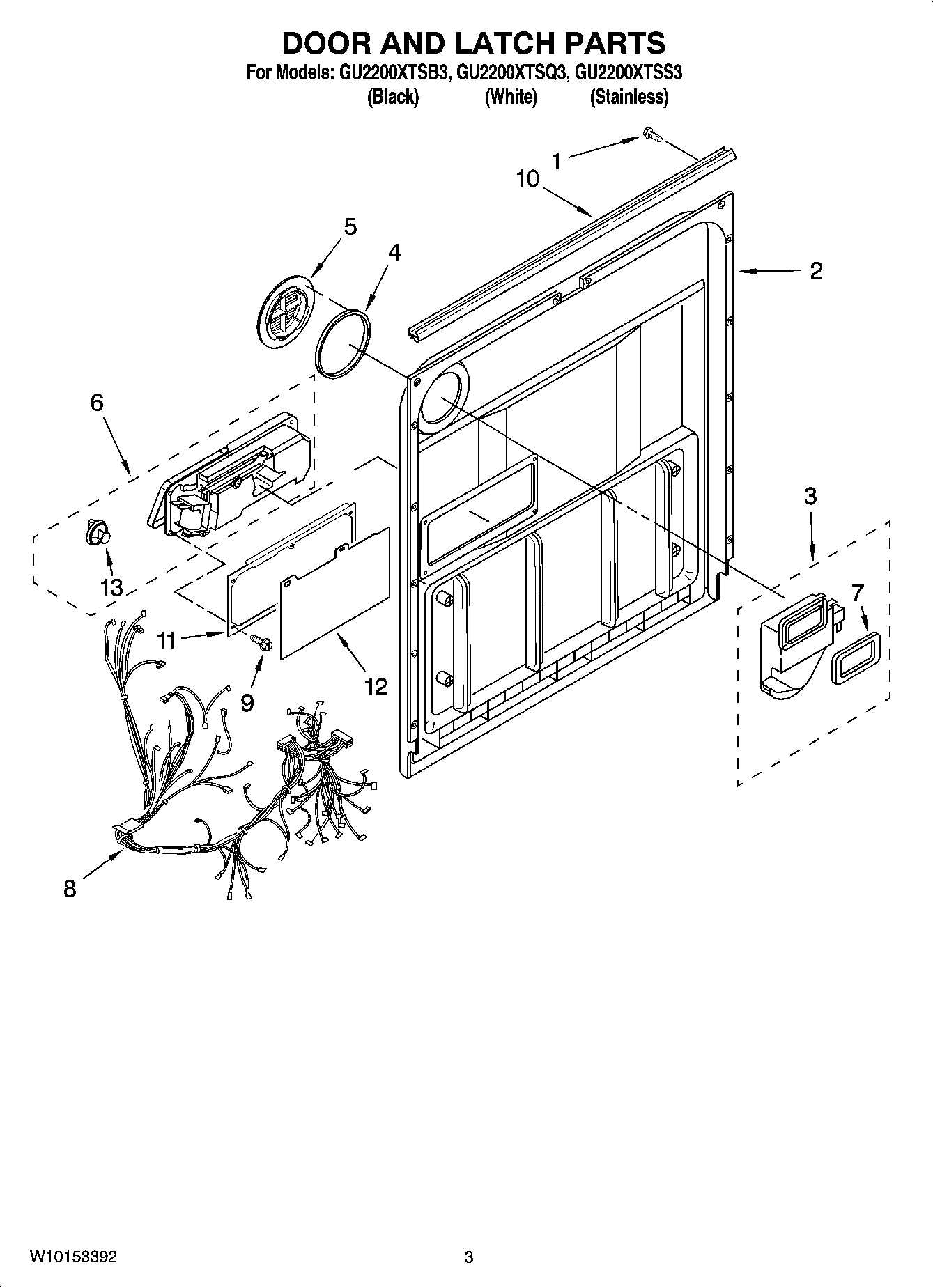

GU2200XTSQ3 03 – DOOR AND LATCH PARTS

GU2200XTSQ3 03 – DOOR AND LATCH PARTS

Written by

in

GU2200XTSQ3 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2Inner Door Mastic Assembly (Also Order Item 6)
3WP8558980 Whirlpool Dishwasher Vent
4WP8269259 Whirlpool Air Vent Gasket
5Deflector, Vent (Also Order Item 6)
6DISPENSER-DW DETERGENT
7WP8269258 Whirlpool Dishwasher Gasket
8Wiring Harness Main
9WPW10177098 Whirlpool Dishwasher Screw
10WP8269296 Whirlpool Dishwasher Seal
11WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
12WP8531865 Whirlpool Dishwasher Door Shield
13WP8558307 Whirlpool Rinse Aid Dispenser Cap
