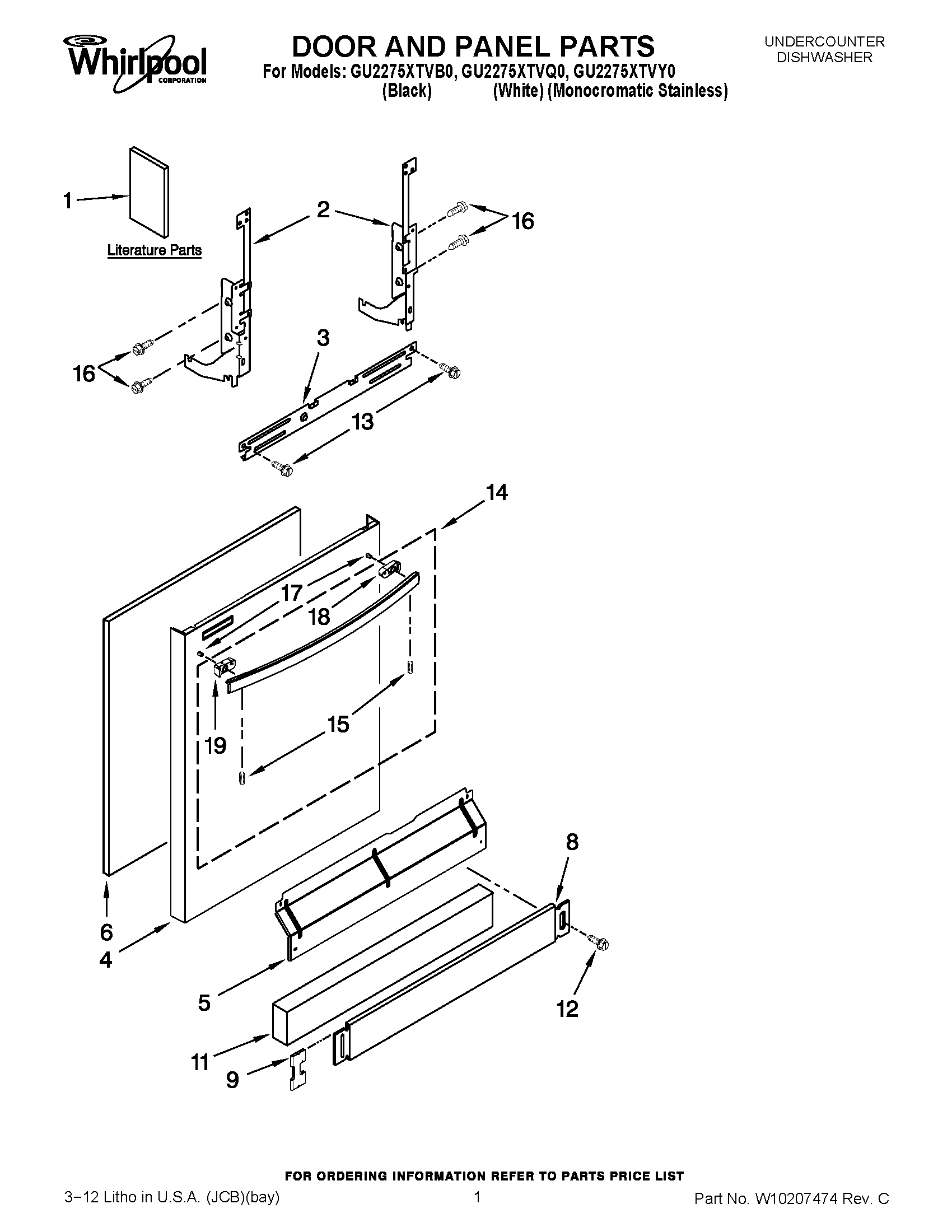

GU2275XTVQ0 01 – DOOR AND PANEL PARTS

GU2275XTVQ0 01 – DOOR AND PANEL PARTS

Written by

in

GU2275XTVQ0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Instructions, Installation
1Guide, Use & Care Spanish
1Tech Sheet
1Guide, Use & Care English/French
1Energy Guide
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4PANEL FRONT (INCLUDES ITEM 14) (STAINLESS)
4PANEL FRONT (INCLUDES ITEM 14) (WHITE)
4PANEL FRONT (INCLUDES ITEM 14) (BLACK)
5W10909066 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
8W10799406 Whirlpool Dishwasher Toe Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
9WP8269016 Whirlpool Clip Assembly
11SHIELD
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
13SCREW
14Handle
14Handle (Black)
14Handle (White)
15WP8534008 Whirlpool Screw
16WPW10109200 Whirlpool Screw
17WP8564951 Whirlpool Dishwasher Stud
18Endcap, Right (Black)
18Endcap, Left (White)
18Endcap, Right (Midnight Grey)
19Endcap, Right (White)
19ENDCAP, LEFT (ULTIMATE SILVER)
19Endcap, Left (Black)
