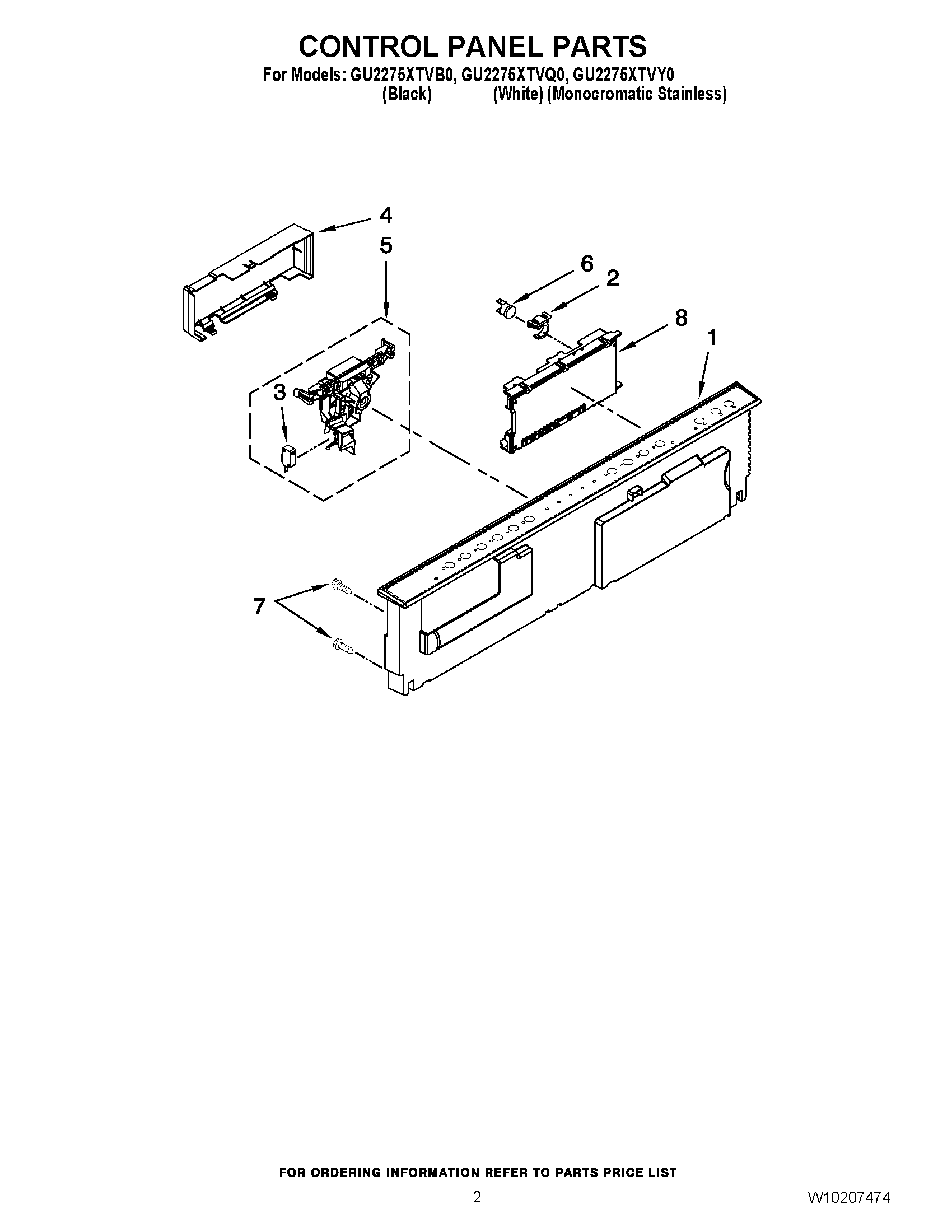

GU2275XTVQ0 02 – CONTROL PANEL PARTS

GU2275XTVQ0 02 – CONTROL PANEL PARTS

Written by

in

GU2275XTVQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Asm. Includes Active Overlay & Insert (Black)
1WPW10175238 Whirlpool Dishwasher Control Panel
1WPW10175237 Whirlpool Dishwasher Control Panel
2Clip, BI-Metal
3WP8269209 Whirlpool Door Switch
4Cover Control Shield Assembly
5WPW10404409 Whirlpool Dishwasher Door Latch
6W10258275 Whirlpool Dishwasher Bimetal Fuse
7WPW10348409 Whirlpool Screw
8WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
