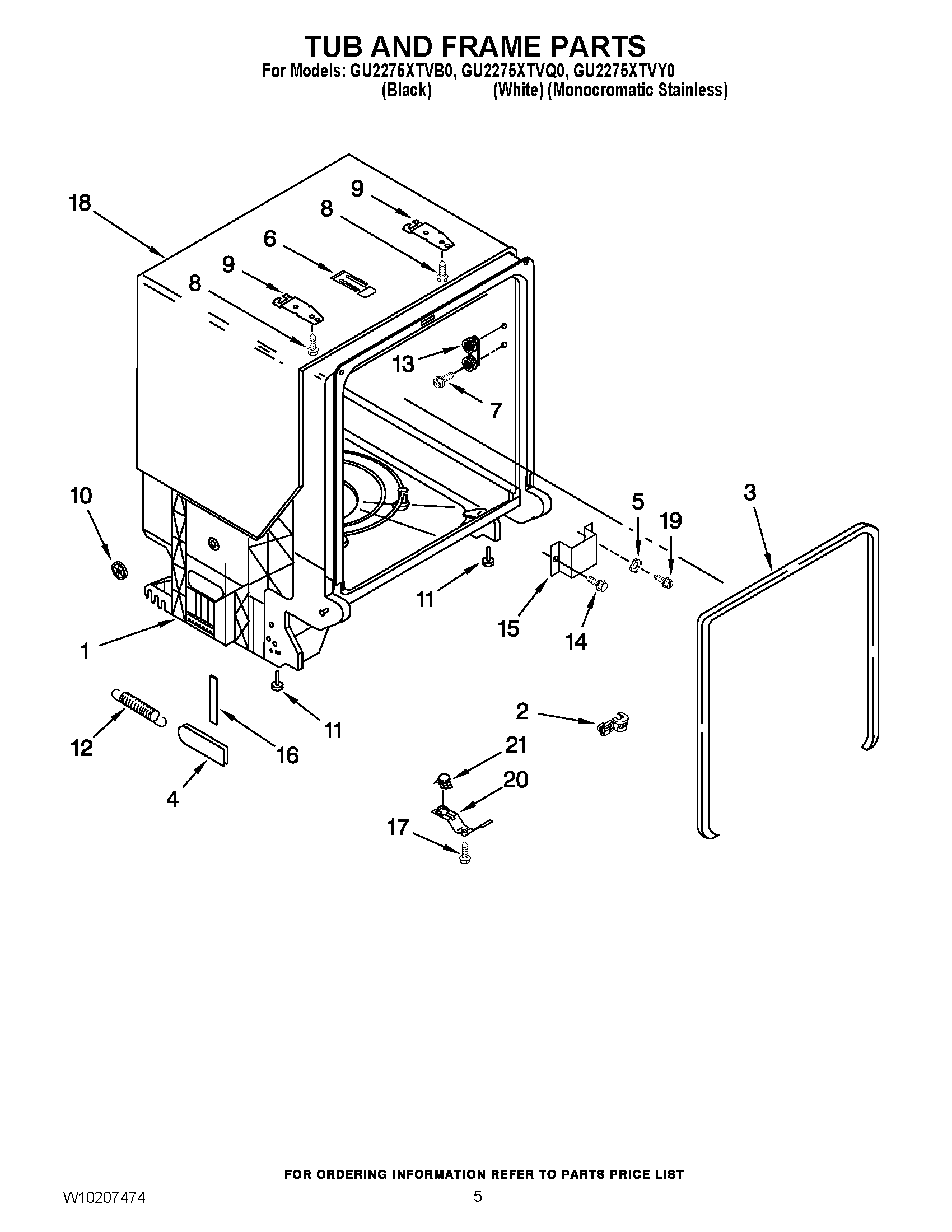

GU2275XTVQ0 05 – TUB AND FRAME PARTS

GU2275XTVQ0 05 – TUB AND FRAME PARTS

Written by

in

GU2275XTVQ0 05 – TUB AND FRAME PARTS

Products

PositionProduct
1TUB-DISHWR
2W11384788 Whirlpool Dishwasher Relief Strainer
3W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
4WP8268990 Whirlpool Dishwasher Door Spring Bushing
5WP3378128 Whirlpool Dishwasher Washer
6Strike, Latch
7W10817436 Whirlpool Screw
8WP489443 Whirlpool Refrigerator Screw
9WP8269145 Whirlpool Dishwasher Mounting Bracket
10WP8269831 Whirlpool Dishwasher Wheel
118193716 Whirlpool Leveling Leg
12WPW10337934 Whirlpool Spring Assembly
13WP8575897 Whirlpool Dishwasher Tub Wheel
14WP3400892 Whirlpool Dishwasher Screw
15WP8268991 Whirlpool Dishwasher Cover Assembly
16WP8268961 Whirlpool Friction Pad
17WP304231 Whirlpool Dishwasher Screw
18W11086533 Whirlpool Dishwasher Shield
19WP3400014 Whirlpool Dishwasher Screw
20W10539489 Whirlpool Dishwasher Bracket-Stat
21WP661566 Whirlpool High Limit Thermostat
