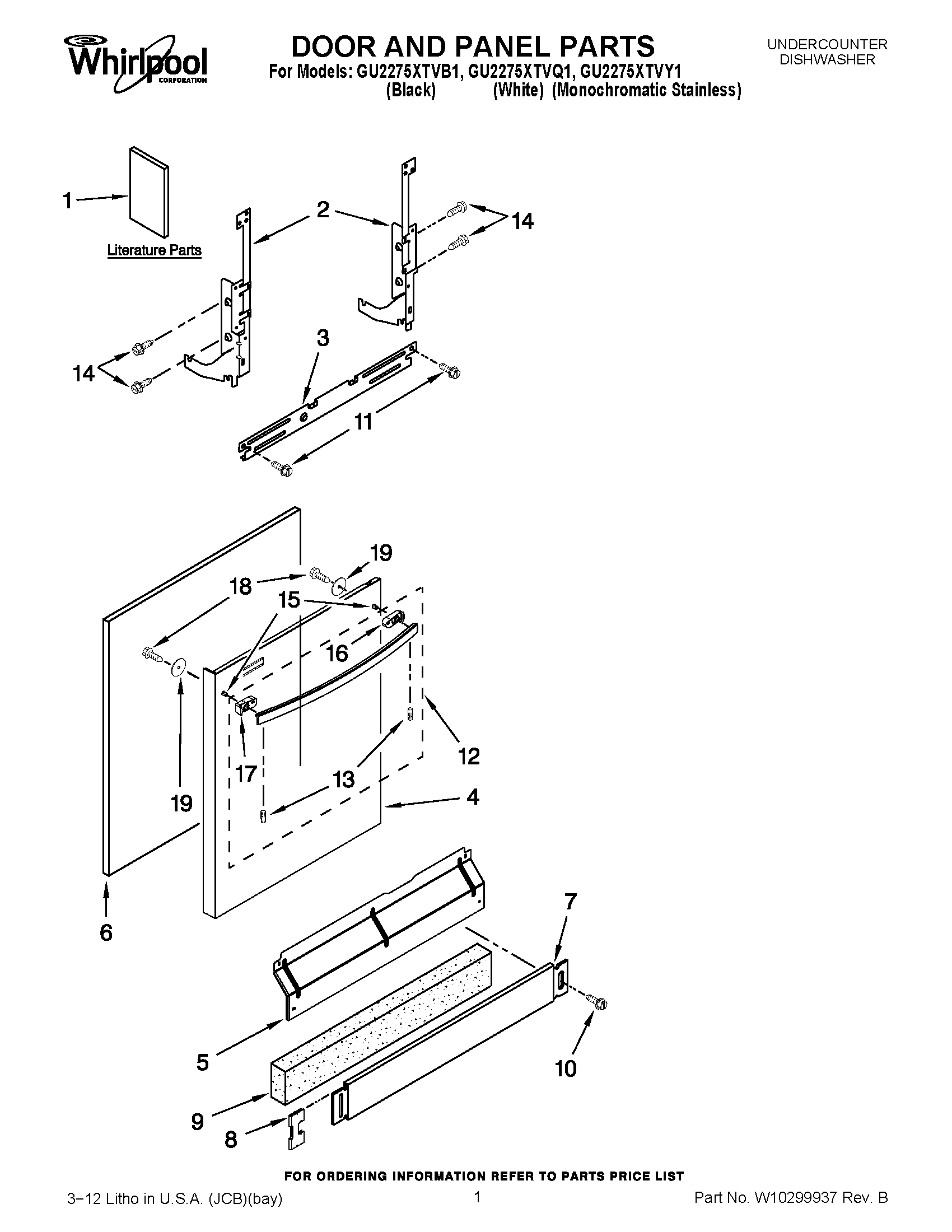

GU2275XTVQ1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1Guide, Use & Care Spanish
1Guide, Use & Care English/French
1Instructions, Installation
1Tech Sheet
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4PANEL FRONT (INCLUDES ITEM 14) (STAINLESS)
4PANEL FRONT (INCLUDES ITEM 14) (WHITE)
4PANEL FRONT (INCLUDES ITEM 14) (BLACK)
5W10909066 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7W10909064 Whirlpool Dishwasher Black Access Panel
7WPW10586591 Whirlpool Dishwasher Toe Panel
8WP8269016 Whirlpool Clip Assembly
9SHIELD
10WPW10503549 Whirlpool Dishwasher Retainer Clip
10WP302868 Whirlpool Screw
11SCREW
12Handle (White)
12Handle (Black)
12Handle
13WP8534008 Whirlpool Screw
14WPW10109200 Whirlpool Screw
15WP8564951 Whirlpool Dishwasher Stud
16Endcap, Right (Midnight Grey)
16Endcap, Right (Black)
16Endcap, Left (White)
17Endcap, Right (White)
17ENDCAP, LEFT (ULTIMATE SILVER)
17Endcap, Left (Black)
18Screw
19PLATE-BACKING
