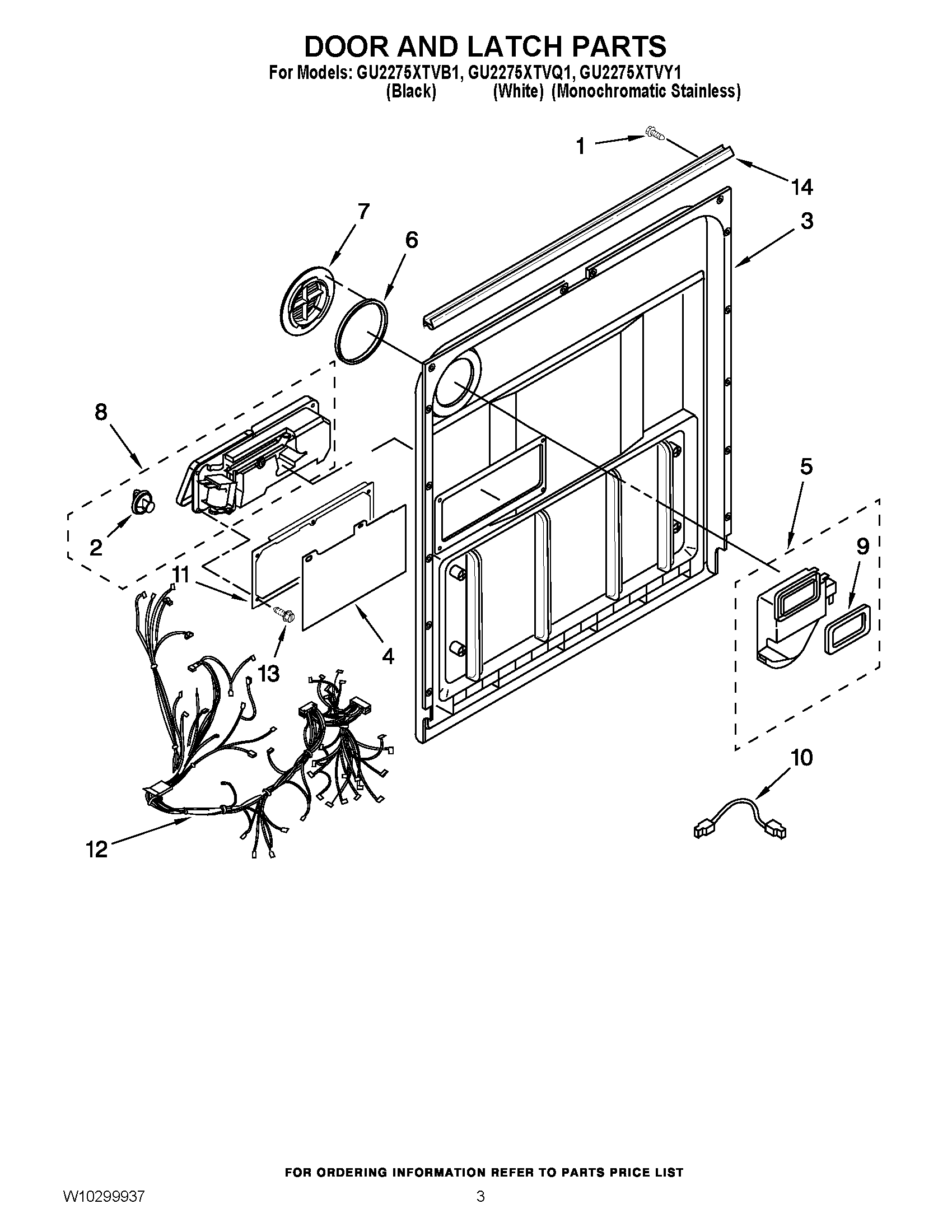

GU2275XTVQ1 03 – DOOR AND LATCH PARTS

GU2275XTVQ1 03 – DOOR AND LATCH PARTS

Written by

in

GU2275XTVQ1 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348413 Whirlpool Dishwasher Screw
2WP8558307 Whirlpool Rinse Aid Dispenser Cap
3Inner Door Mastic Assembly (Also Order Item 6)
4WP8531865 Whirlpool Dishwasher Door Shield
5WPW10164259 Whirlpool Dishwasher Vent Assembly
6WP8269259 Whirlpool Air Vent Gasket
7Deflector, Vent (Also Order Item 5)
8WPW10195175 Whirlpool Dishwasher Detergent Dispenser
9WP8269258 Whirlpool Dishwasher Gasket
10Harness, Vent Motor
11WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
12WPW10413093 Whirlpool Dishwasher Wire Harness
13WPW10177098 Whirlpool Dishwasher Screw
14WP8269296 Whirlpool Dishwasher Seal
