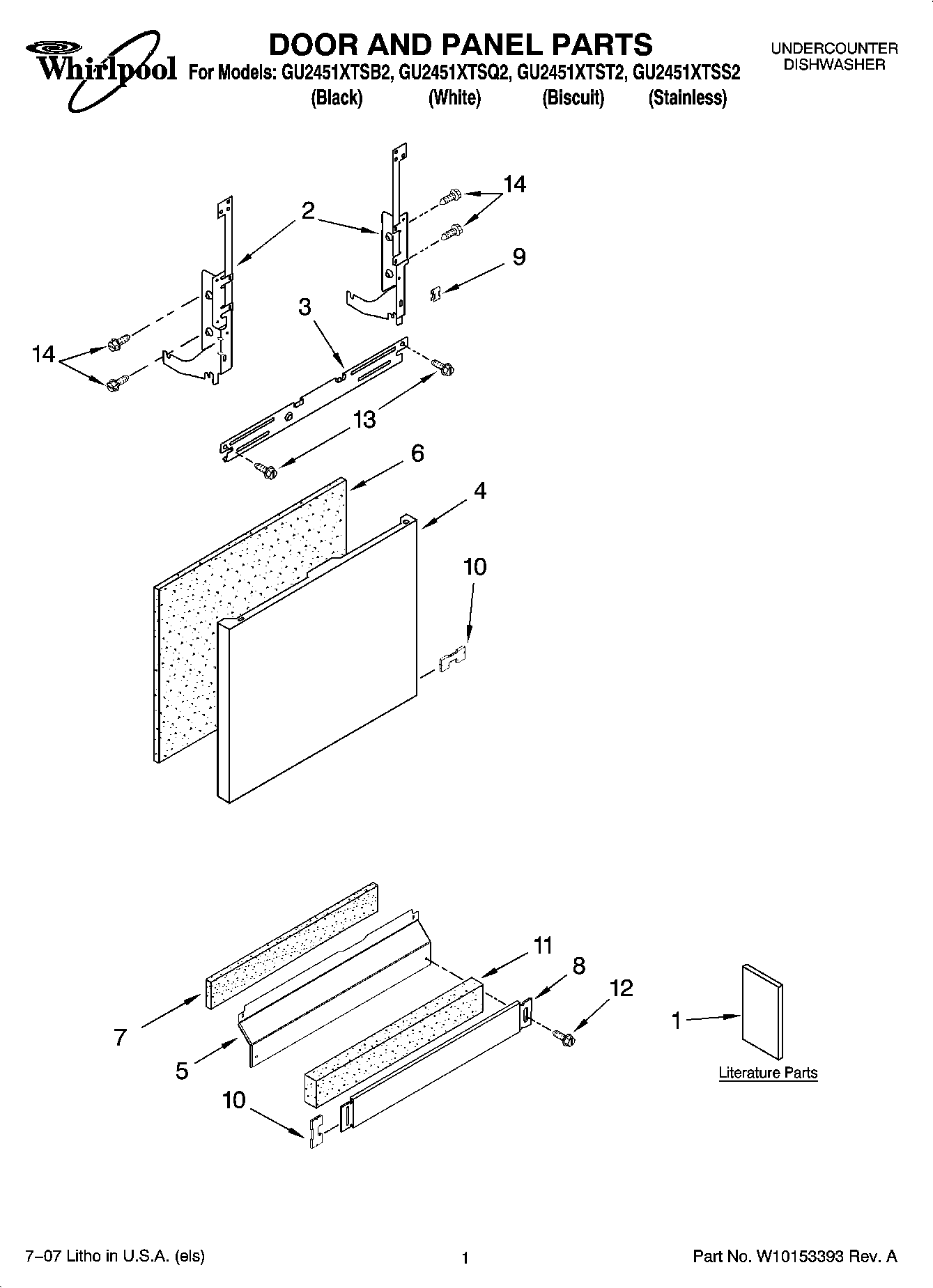

GU2451XTSQ2 01 – DOOR AND PANEL PARTS

GU2451XTSQ2 01 – DOOR AND PANEL PARTS

Written by

in

GU2451XTSQ2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1Guide, Use & Care
1Tech Sheet
1Instructions, Installation
2W11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3Stiffener, Door
4W10301577 Whirlpool Outer Door Panel
4W10384707 Whirlpool Dishwasher Panel
4Panel Front (Includes 7) (White)
4W10301571 Whirlpool Dishwasher Panel
5W10871198 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
5PANEL
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7SHIELD
8W10909064 Whirlpool Dishwasher Black Access Panel
8Toe Panel (Includes Items 7 & 11) (Biscuit)
8WPW10586591 Whirlpool Dishwasher Toe Panel
9Clip, Grounding
10WP8269016 Whirlpool Clip Assembly
12WPW10503550 Whirlpool Dishwasher Retainer
12WP302868 Whirlpool Screw
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13SCREW
14WPW10109200 Whirlpool Screw
