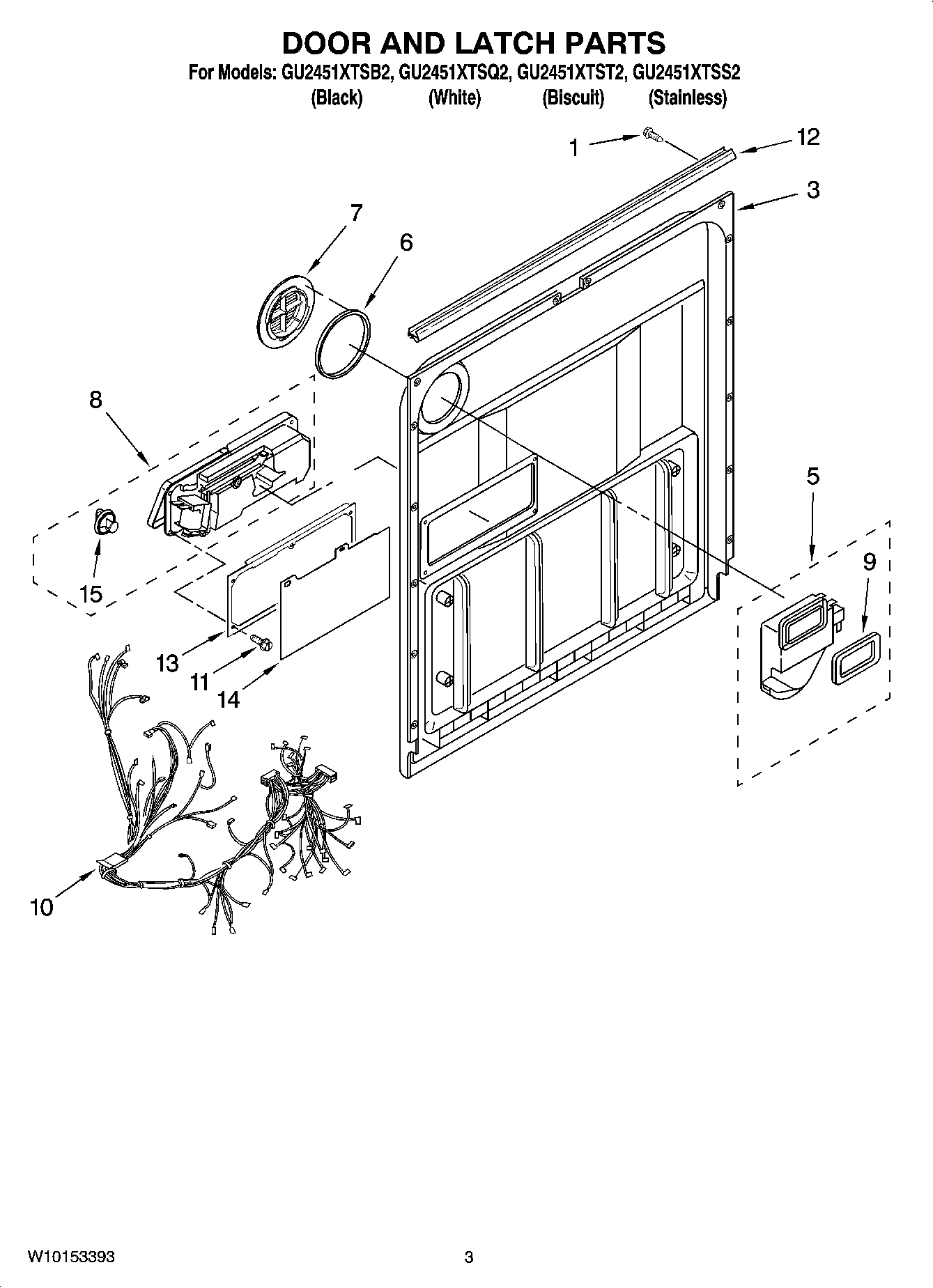

GU2451XTSQ2 03 – DOOR AND LATCH PARTS

GU2451XTSQ2 03 – DOOR AND LATCH PARTS

Written by

in

GU2451XTSQ2 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
3Inner Door Mastic Assembly (Also Order Item 6)
5WP8558980 Whirlpool Dishwasher Vent
6WP8269259 Whirlpool Air Vent Gasket
7Deflector, Vent (Also Order Item 6)
8DISPENSER-DW DETERGENT
9WP8269258 Whirlpool Dishwasher Gasket
10Wiring Harness Main
11WPW10177098 Whirlpool Dishwasher Screw
12WP8269296 Whirlpool Dishwasher Seal
13WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
14WP8531865 Whirlpool Dishwasher Door Shield
15WP8558307 Whirlpool Rinse Aid Dispenser Cap
