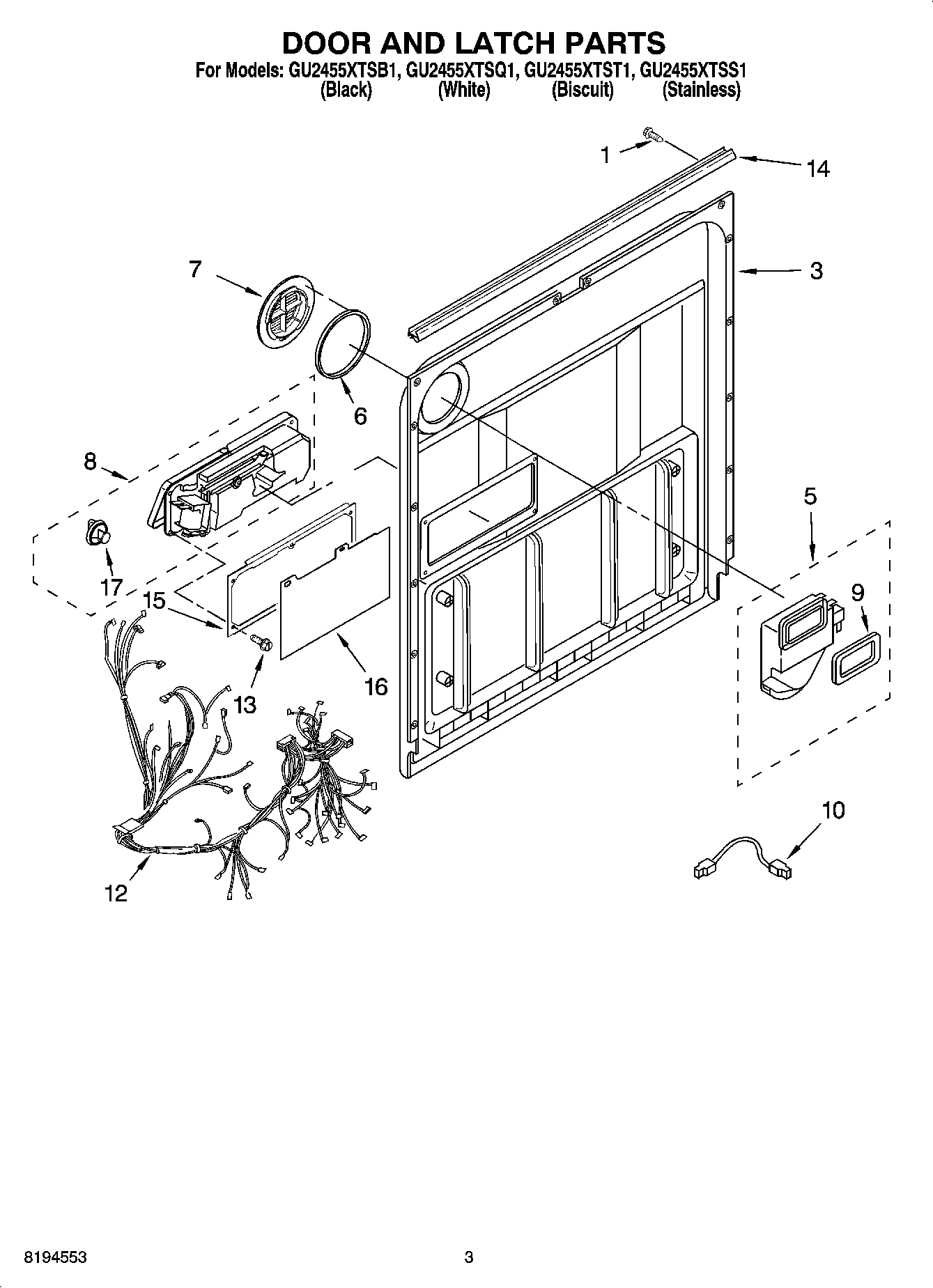

GU2455XTSB1 03 – DOOR AND LATCH PARTS

GU2455XTSB1 03 – DOOR AND LATCH PARTS

Written by

in

GU2455XTSB1 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
3Inner Door Mastic Assembly (Also Order Item 6)
5WPW10164259 Whirlpool Dishwasher Vent Assembly
6WP8269259 Whirlpool Air Vent Gasket
7Deflector, Vent (Also Order Item 5)
8DISPENSER-DW DETERGENT
9WP8269258 Whirlpool Dishwasher Gasket
10Harness, Vent Motor
12Wiring Harness Main
13WPW10177098 Whirlpool Dishwasher Screw
14WP8269296 Whirlpool Dishwasher Seal
15WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
16WP8531865 Whirlpool Dishwasher Door Shield
17WP8558307 Whirlpool Rinse Aid Dispenser Cap
