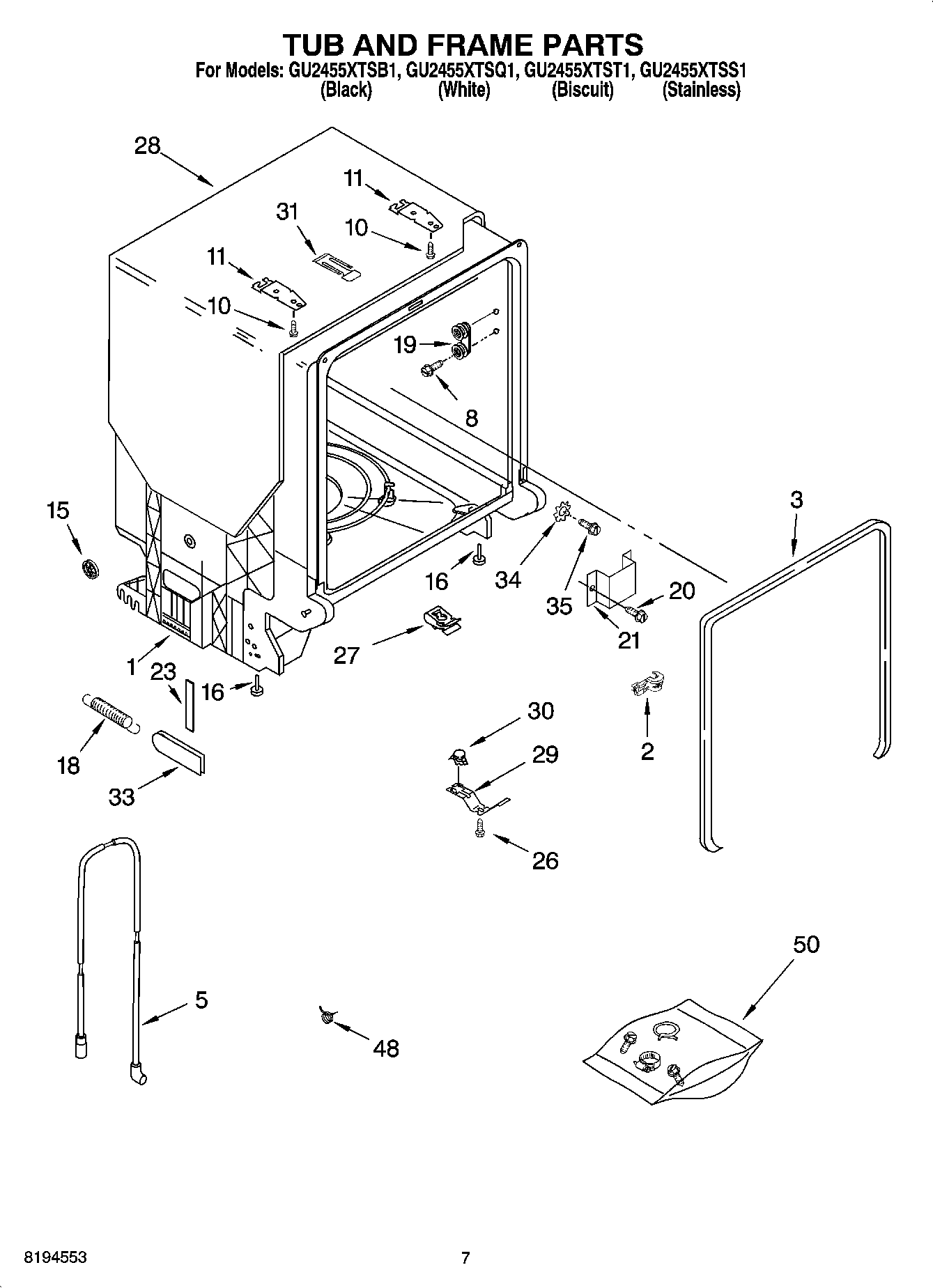

GU2455XTSB1 07 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB-DISHWR
2	W11384788 Whirlpool Dishwasher Relief Strainer
3	W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
5	WPW10358302 Whirlpool Dishwasher Drain Hose
8	W10817436 Whirlpool Screw
10	WP489443 Whirlpool Refrigerator Screw
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
15	WP8269831 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
18	WPW10337934 Whirlpool Spring Assembly
19	WP8575897 Whirlpool Dishwasher Tub Wheel
20	WP3400892 Whirlpool Dishwasher Screw
21	WP8268991 Whirlpool Dishwasher Cover Assembly
23	WP8268961 Whirlpool Friction Pad
26	WP304231 Whirlpool Dishwasher Screw
27	WP8269016 Whirlpool Clip Assembly
28	W10877094 Whirlpool Shield
29	W10539489 Whirlpool Dishwasher Bracket-Stat
30	WP661566 Whirlpool High Limit Thermostat
31	WP8580309 Whirlpool Dishwasher Strike
33	WP8268990 Whirlpool Dishwasher Door Spring Bushing
34	WP3378128 Whirlpool Dishwasher Washer
35	WP3400014 Whirlpool Dishwasher Screw
48	WP356138 Whirlpool Hose Clamp
50	WPW10292170 Whirlpool Dishwasher Miscellaneous Parts
