GU2455XTST0 01 – DOOR AND PANEL PARTS
Written by
in

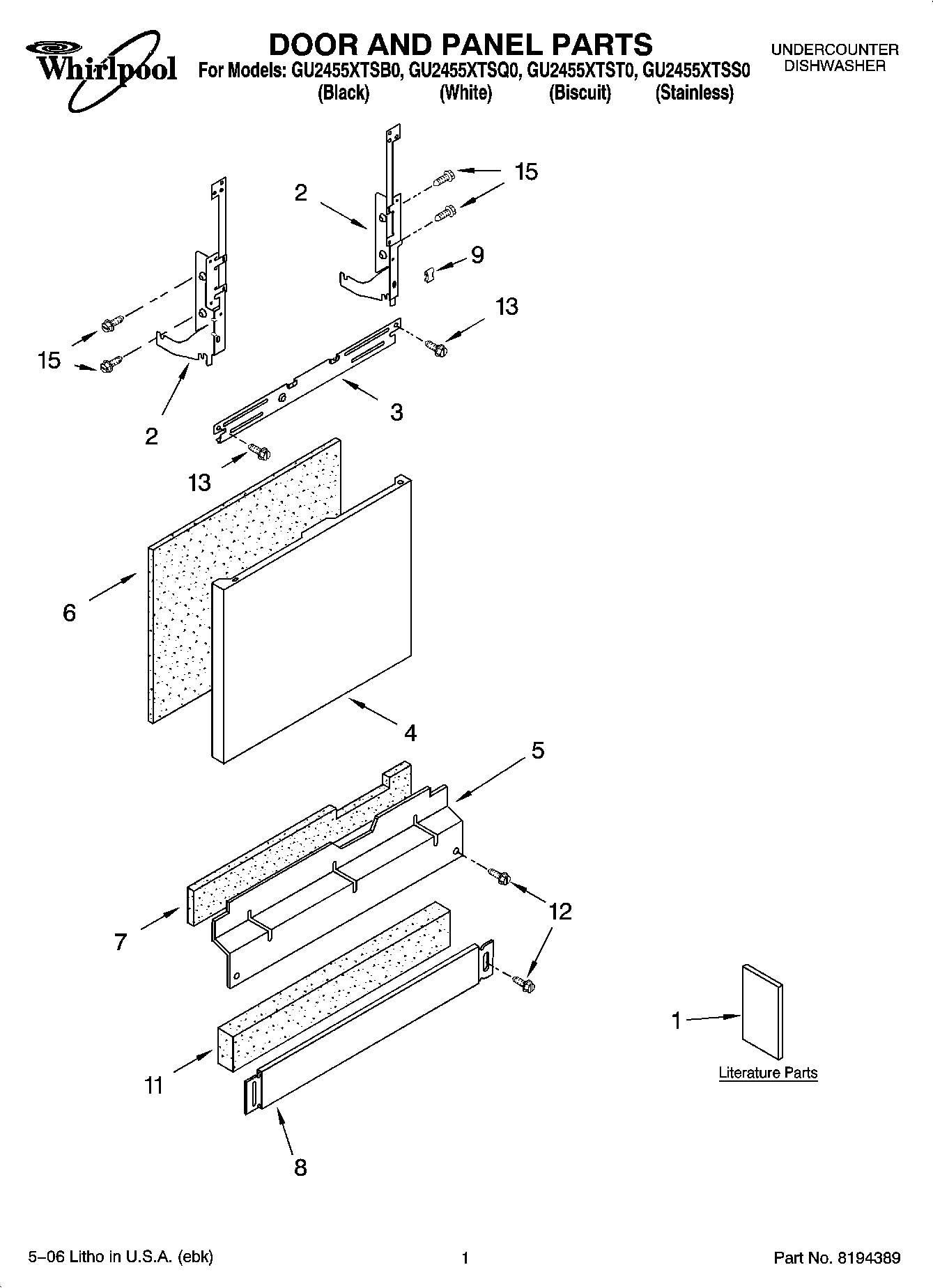

GU2455XTST0 01 – DOOR AND PANEL PARTS
Products
Position
Product
1
Energy Guide
1
Guide, Use & Care
1
Tech Sheet
1
Instructions, Installation
2
W11613573 Whirlpool Door Hinge
2
W11613572 Whirlpool Dishwasher Door Hinge
3
Stiffener, Door
4
W10384707 Whirlpool Dishwasher Panel
4
Panel Front (Includes 7) (White)
4
W10301577 Whirlpool Outer Door Panel
4
W10301571 Whirlpool Dishwasher Panel
5
W10909066 Whirlpool Dishwasher Panel
5
W10871198 Whirlpool Dishwasher Panel
6
WPW10073520 Whirlpool Dishwasher Insulation Pad
8
Toe Panel (Includes Items 7 & 11) (Biscuit)
8
W10909064 Whirlpool Dishwasher Black Access Panel
8
WPW10586591 Whirlpool Dishwasher Toe Panel
9
Clip, Grounding
11
SHIELD
12
WP302868 Whirlpool Screw
12
WPW10503549 Whirlpool Dishwasher Retainer Clip
12
WPW10503550 Whirlpool Dishwasher Retainer
13
SCREW
15
WPW10109200 Whirlpool Screw
←
