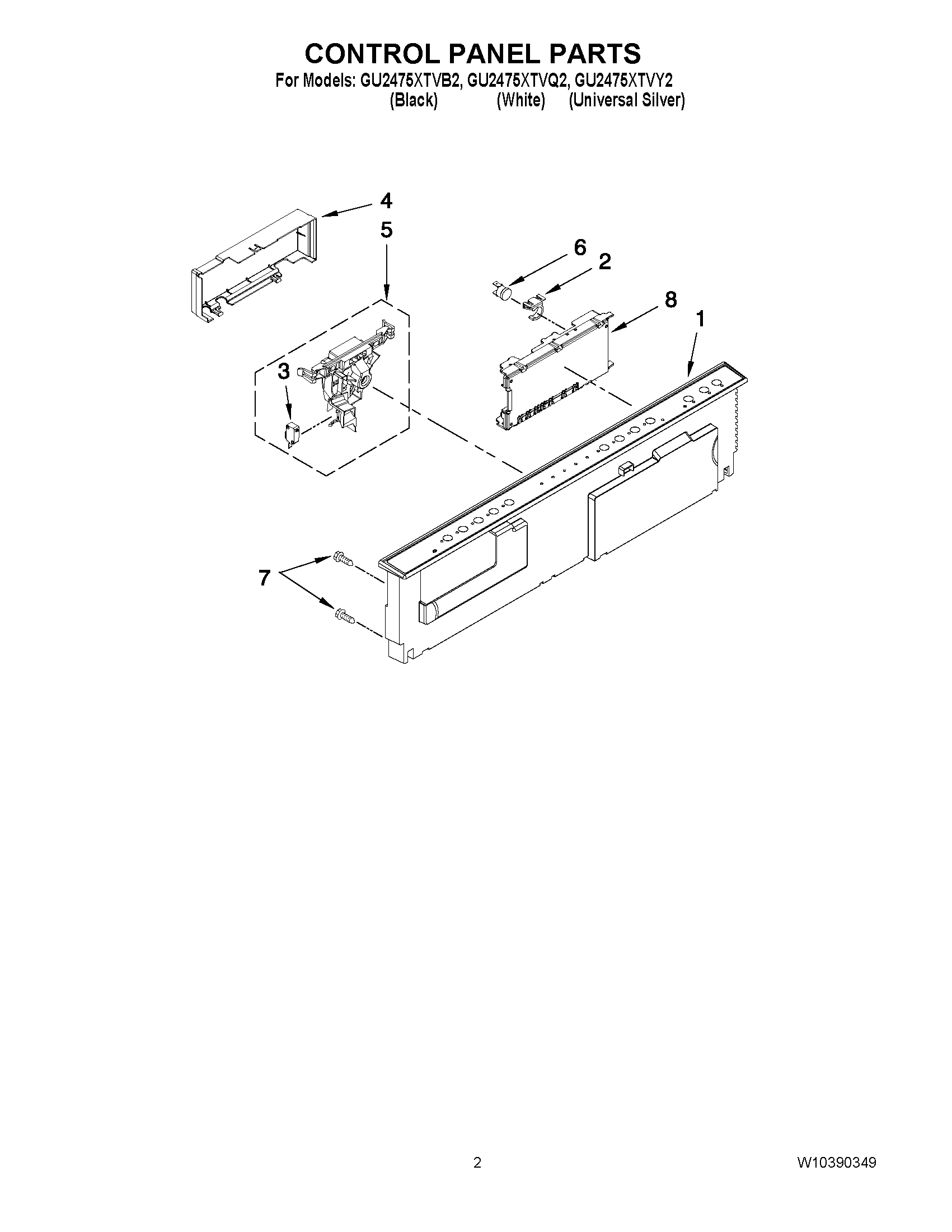

GU2475XTVB2 02 – CONTROL PANEL PARTS

GU2475XTVB2 02 – CONTROL PANEL PARTS

Written by

in

GU2475XTVB2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1WPW10175239 Whirlpool Dishwasher Control Panel
1WPW10175240 Whirlpool Dishwasher Control Panel
1WPW10175241 Whirlpool Dishwasher Control Panel
2Clip, BI-Metal
4Cover Control Shield Assembly
5WPW10404409 Whirlpool Dishwasher Door Latch
6W10258275 Whirlpool Dishwasher Bimetal Fuse
7WPW10348413 Whirlpool Dishwasher Screw
8WPW10285179-includeCORE Whirlpool WPW10285179 Dishwasher Electronic Control Board
