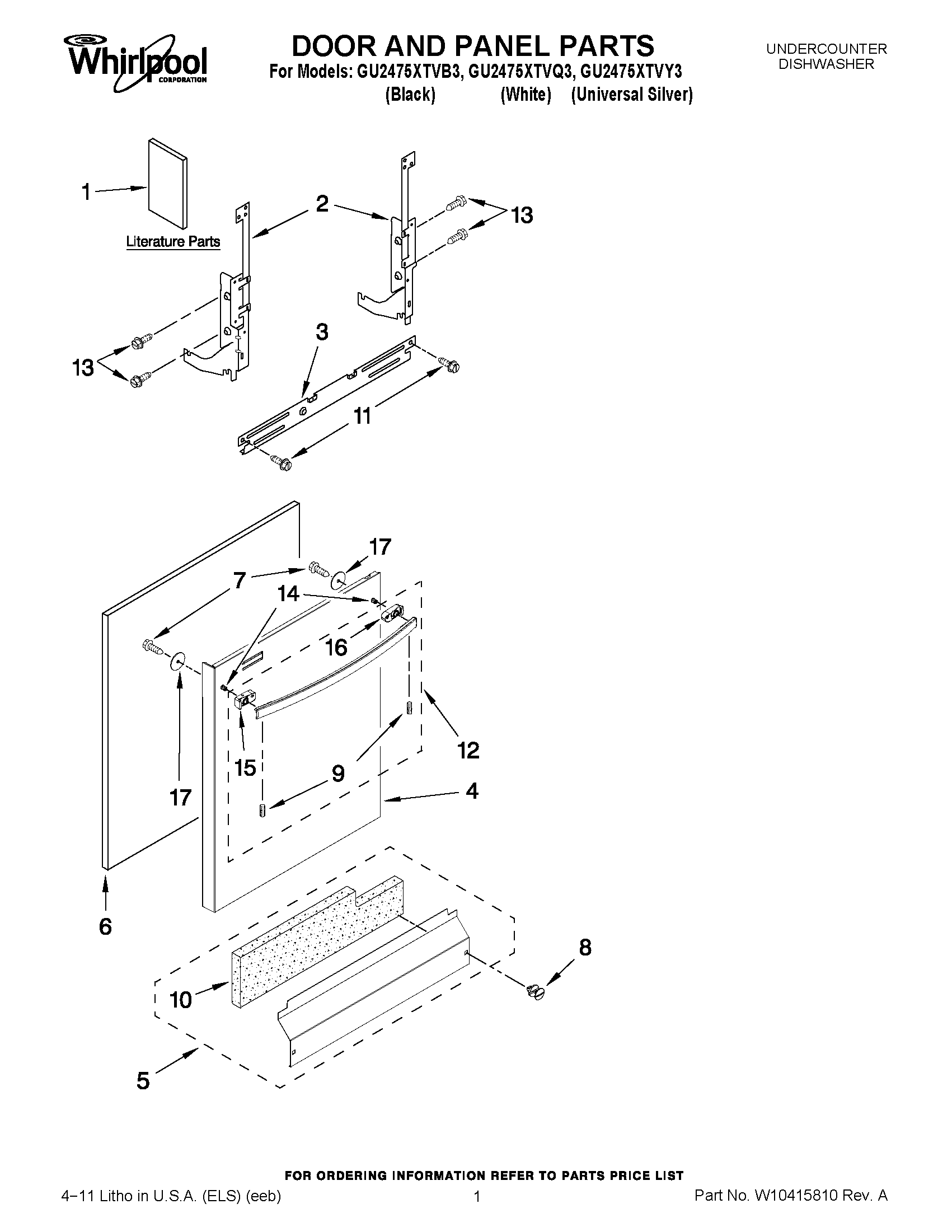

GU2475XTVB3 01 – DOOR AND PANEL PARTSadmin2025-04-26T11:37:32+00:00GU2475XTVB3 01 – DOOR AND PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ENERGY GUIDE |
| 1 | Guide, Use & Care Spanish |
| 1 | INSTRUCTIONS, INSTALLATION |
| 1 | Guide, Use & Care English/French |
| 1 | Tech Sheet |
| 2 | W11613572 Whirlpool Dishwasher Door Hinge |
| 2 | W11613573 Whirlpool Door Hinge |
| 3 | Stiffener, Door |
| 4 | PANEL FRONT (INCLUDES ITEM 14) (STAINLESS) |
| 4 | PANEL FRONT (INCLUDES ITEM 14) (WHITE) |
| 4 | PANEL FRONT (INCLUDES ITEM 14) (BLACK) |
| 5 | W10827632 Whirlpool Dishwasher Control Panel |
| 5 | W10827631 Whirlpool Toe Panel |
| 6 | WPW10073520 Whirlpool Dishwasher Insulation Pad |
| 7 | Screw |
| 8 | WPW10503549 Whirlpool Dishwasher Retainer Clip |
| 8 | WPW10503548 Whirlpool Dishwasher Panel Retainer Clip |
| 9 | WP8534008 Whirlpool Screw |
| 10 | SHIELD |
| 11 | SCREW |
| 12 | Handle |
| 12 | Handle (White) |
| 12 | Handle (Black) |
| 13 | WPW10109200 Whirlpool Screw |
| 14 | WP8564951 Whirlpool Dishwasher Stud |
| 15 | Endcap, L/H |
| 15 | Endcap, Left (Black) |
| 15 | Endcap, Left (White) |
| 16 | Endcap, Right (Black) |
| 16 | Endcap, Right (White) |
| 16 | Endcap, R/H |
| 17 | PLATE-BACKING |
