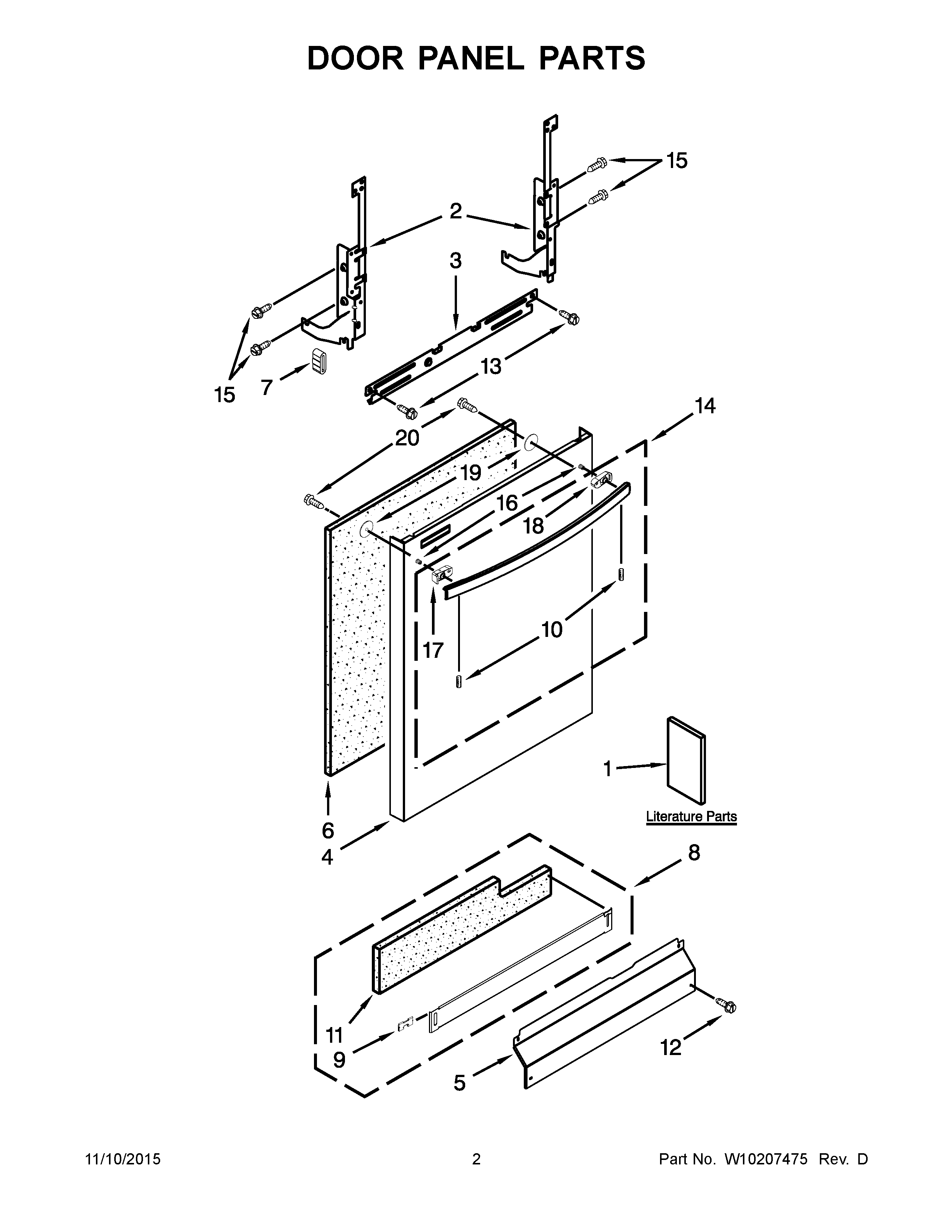

GU2475XTVY0 02 – DOOR PANEL PARTS

GU2475XTVY0 02 – DOOR PANEL PARTS

Written by

in

GU2475XTVY0 02 – DOOR PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1CGuide, Use & Care Spanish
1AENERGY GUIDE
1DTech Sheet
1BGuide, Use & Care English/French
2W11613573 Whirlpool Door Hinge
2AW11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4APANEL FRONT (INCLUDES ITEM 14) (WHITE)
4BPANEL FRONT (INCLUDES ITEM 14) (STAINLESS)
4PANEL FRONT (INCLUDES ITEM 14) (BLACK)
5W10909064 Whirlpool Dishwasher Black Access Panel
5AW10909066 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7WP8268961 Whirlpool Friction Pad
8AW10799406 Whirlpool Dishwasher Toe Panel
9WP8269016 Whirlpool Clip Assembly
11SHIELD
12WP302868 Whirlpool Screw
12AWPW10503549 Whirlpool Dishwasher Retainer Clip
13SCREW
14AHandle (White)
14BHandle
14Handle (Black)
15WPW10109200 Whirlpool Screw
16WP8564951 Whirlpool Dishwasher Stud
17AEndcap, Left (White)
17Endcap, Left (Black)
17BENDCAP, LEFT (ULTIMATE SILVER)
18Endcap, Right (Black)
18AEndcap, Right (White)
18BEndcap, R/H
19PLATE-BACKING
20WPW10348413 Whirlpool Dishwasher Screw
