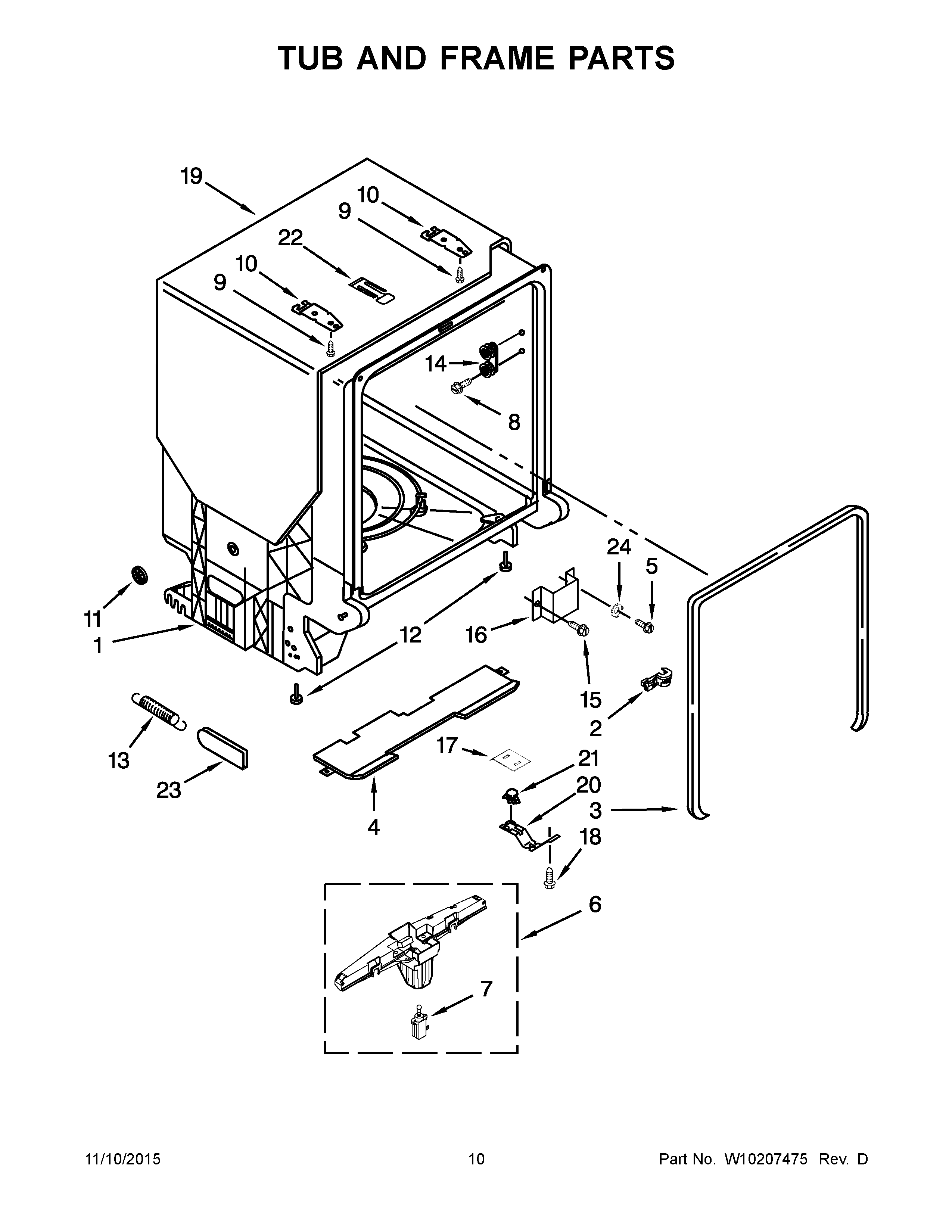

GU2475XTVY0 06 – TUB AND FRAME PARTS

GU2475XTVY0 06 – TUB AND FRAME PARTS

Written by

in

GU2475XTVY0 06 – TUB AND FRAME PARTS

Products

PositionProduct
1TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2W11384788 Whirlpool Dishwasher Relief Strainer
3W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
4WPW10746770 Whirlpool Insulation Pad
5WP3400014 Whirlpool Dishwasher Screw
6Actuator Assembly
7Motor, Wax
8W10817436 Whirlpool Screw
9W10165274 Whirlpool Dishwasher Screw
10WP8269145 Whirlpool Dishwasher Mounting Bracket
11WP8269831 Whirlpool Dishwasher Wheel
128193716 Whirlpool Leveling Leg
13WPW10337934 Whirlpool Spring Assembly
14WP8575897 Whirlpool Dishwasher Tub Wheel
15WP3400892 Whirlpool Dishwasher Screw
16WP8268991 Whirlpool Dishwasher Cover Assembly
17W10321574 Whirlpool Dishwasher Shield
18WP304231 Whirlpool Dishwasher Screw
19W10877094 Whirlpool Shield
20W10539489 Whirlpool Dishwasher Bracket-Stat
21WP661566 Whirlpool High Limit Thermostat
22STRIKE, LATCH
23WP8268990 Whirlpool Dishwasher Door Spring Bushing
24WP3378128 Whirlpool Dishwasher Washer
