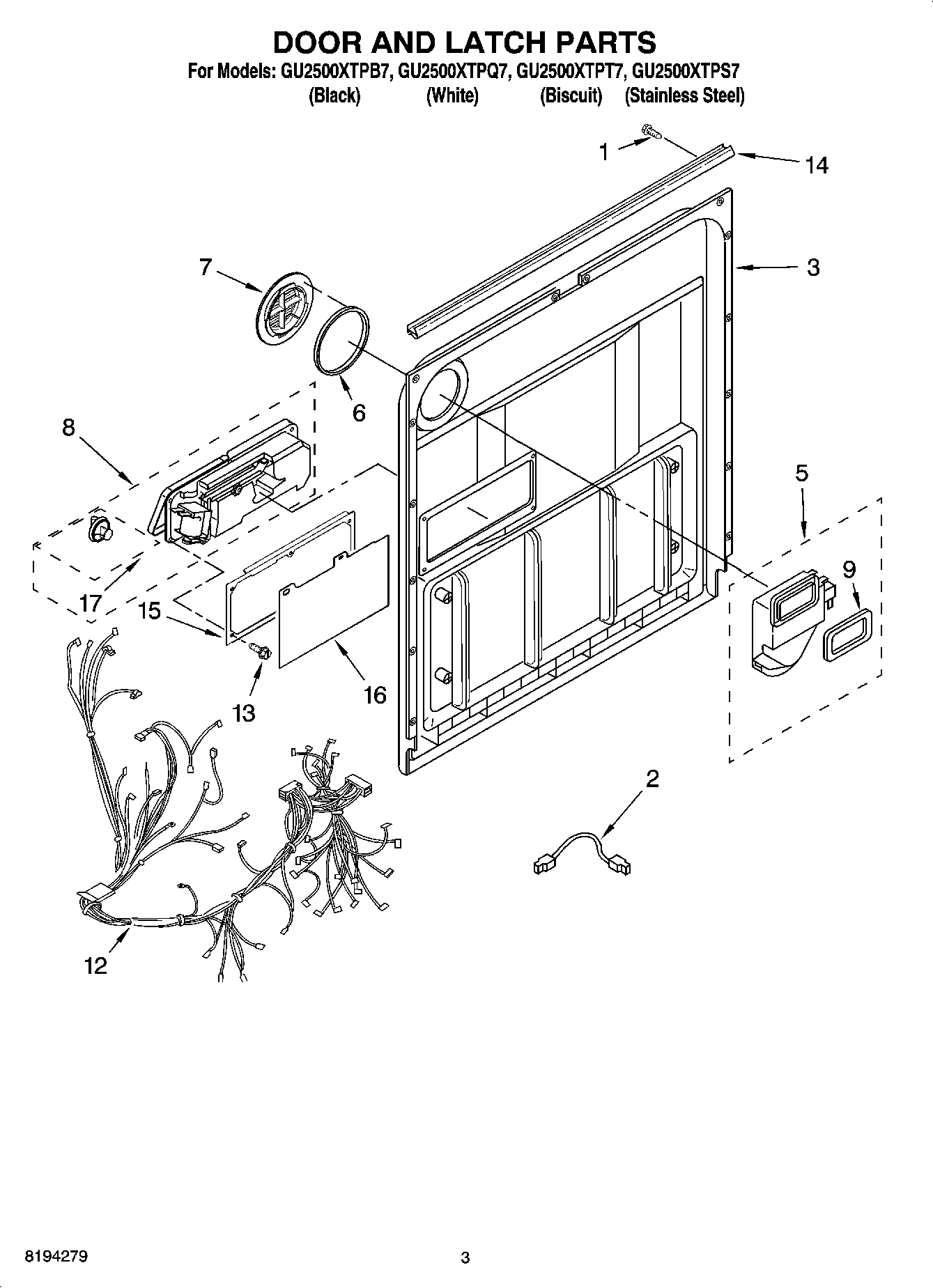

GU2500XTPB7 03 – DOOR AND LATCH PARTS

GU2500XTPB7 03 – DOOR AND LATCH PARTS

Written by

in

GU2500XTPB7 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2Harness, Vent Motor
3WP8269311 Whirlpool Dishwasher Inner Door
5WPW10164259 Whirlpool Dishwasher Vent Assembly
6WP8269259 Whirlpool Air Vent Gasket
7DEFLECTOR
8WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
9WP8269258 Whirlpool Dishwasher Gasket
12Wiring Harness Main
13WPW10177098 Whirlpool Dishwasher Screw
14WP8269296 Whirlpool Dishwasher Seal
15WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
16WP8531865 Whirlpool Dishwasher Door Shield
17WP8558307 Whirlpool Rinse Aid Dispenser Cap
