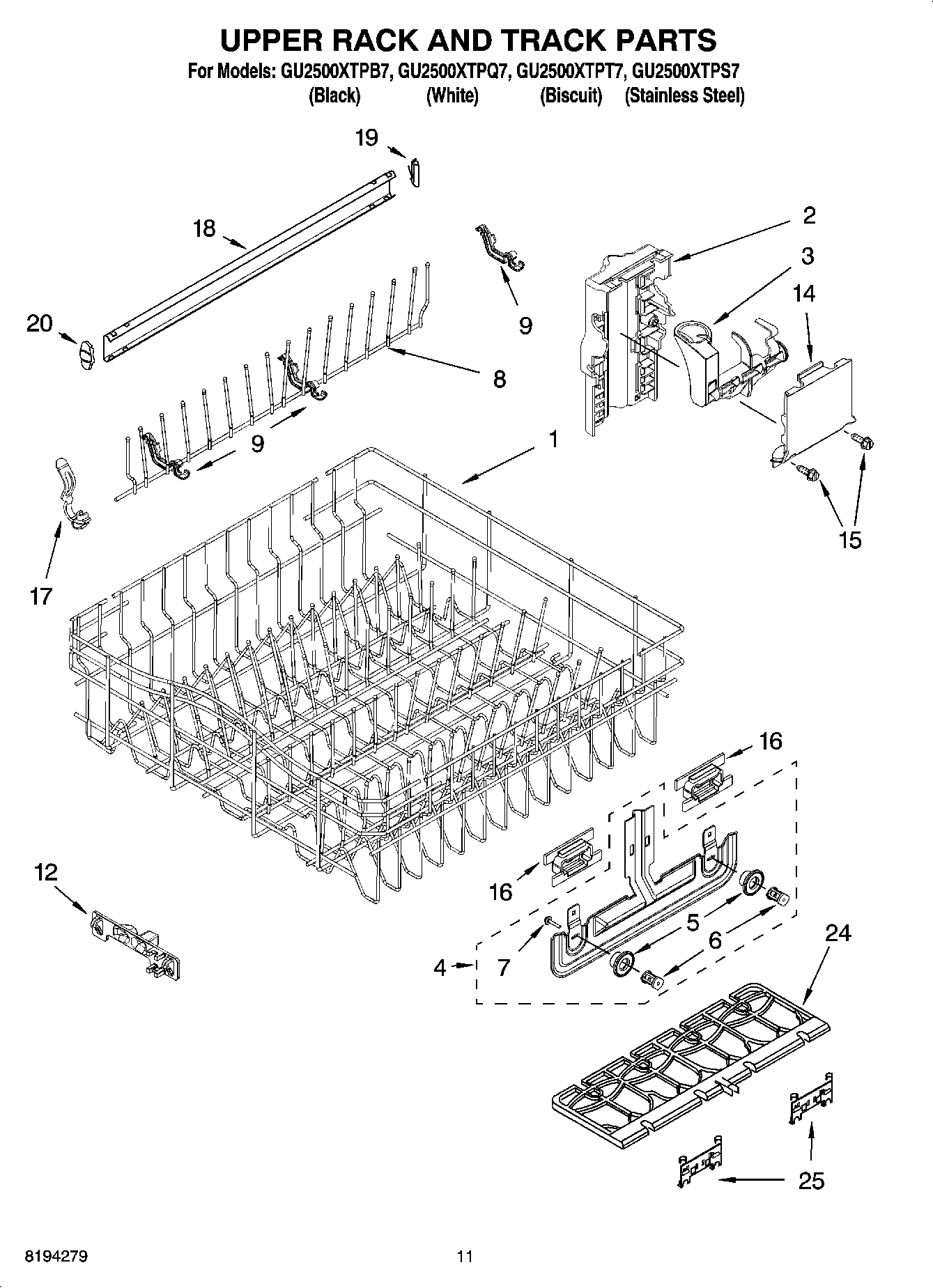

GU2500XTPB7 09 – UPPER RACK AND TRACK PARTS
Written by
in
GU2500XTPB7 09 – UPPER RACK AND TRACK PARTS
Products
Position
Product
1
W10727422 Whirlpool Dishwasher Dishrack
2
Housing, Adjuster
3
Actuator, Adjuster (Left Hand)
3
Actuator, Adjuster (Right Hand)
4
W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
5
WP3385088 Whirlpool Dishwasher Upper Wheel
6
WP8268703 Whirlpool Dishwasher Rack Axle
7
WP8281156 Whirlpool Dishwasher Screw
8
W10727426 Whirlpool Dishwasher Rack Tine
9
WP8539189 Whirlpool Dishwasher Pivot Tine
12
WP8539119 Whirlpool Dishwasher Positioner
14
Cover, Adjuster
15
WP9741232 Whirlpool Dishwasher Screw
16
Positioner, Arm
17
WP8539113 Whirlpool Dishwasher No Flip Dishrack Clip
18
WP3385089 Whirlpool Track
19
WP8565925 Whirlpool Slide Rail Stop
24
Cupshelf
25
8269736 Whirlpool Dishwasher Clip
←
