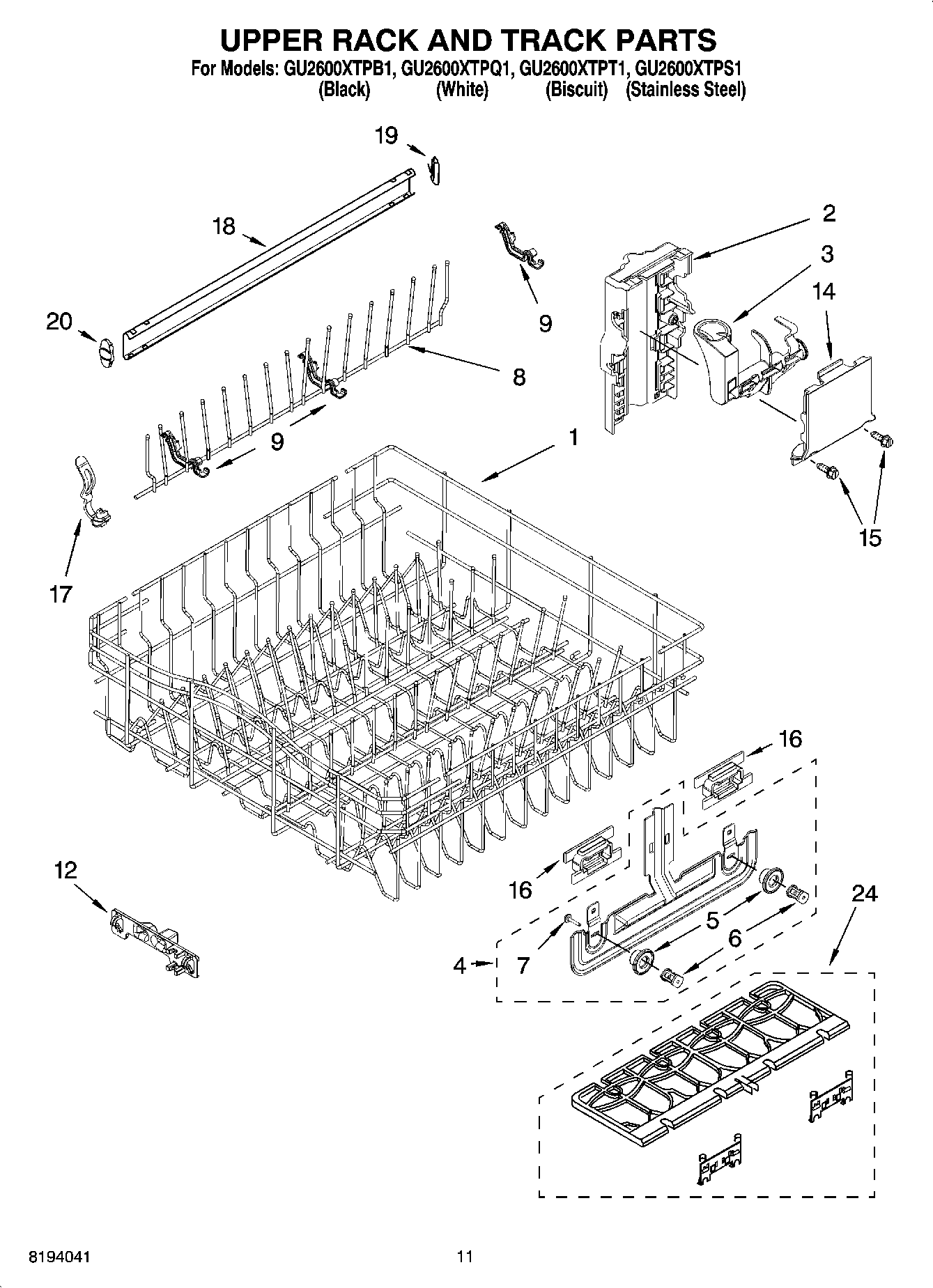

GU2600XTPB1 09 – UPPER RACK AND TRACK PARTS

GU2600XTPB1 09 – UPPER RACK AND TRACK PARTS

Written by

in

GU2600XTPB1 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10727422 Whirlpool Dishwasher Dishrack
2Housing, Adjuster
3Actuator, Adjuster (Left Hand)
3Actuator, Adjuster (Right Hand)
4W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
5WP3385088 Whirlpool Dishwasher Upper Wheel
6WP8268703 Whirlpool Dishwasher Rack Axle
7WP8281156 Whirlpool Dishwasher Screw
8W10727426 Whirlpool Dishwasher Rack Tine
9WP8539189 Whirlpool Dishwasher Pivot Tine
12WP8539119 Whirlpool Dishwasher Positioner
14Cover, Adjuster
15WP9741232 Whirlpool Dishwasher Screw
16Positioner, Arm
17WP8539113 Whirlpool Dishwasher No Flip Dishrack Clip
18WP3385089 Whirlpool Track
19WP8565925 Whirlpool Slide Rail Stop
24Cupshelf, Assembly
