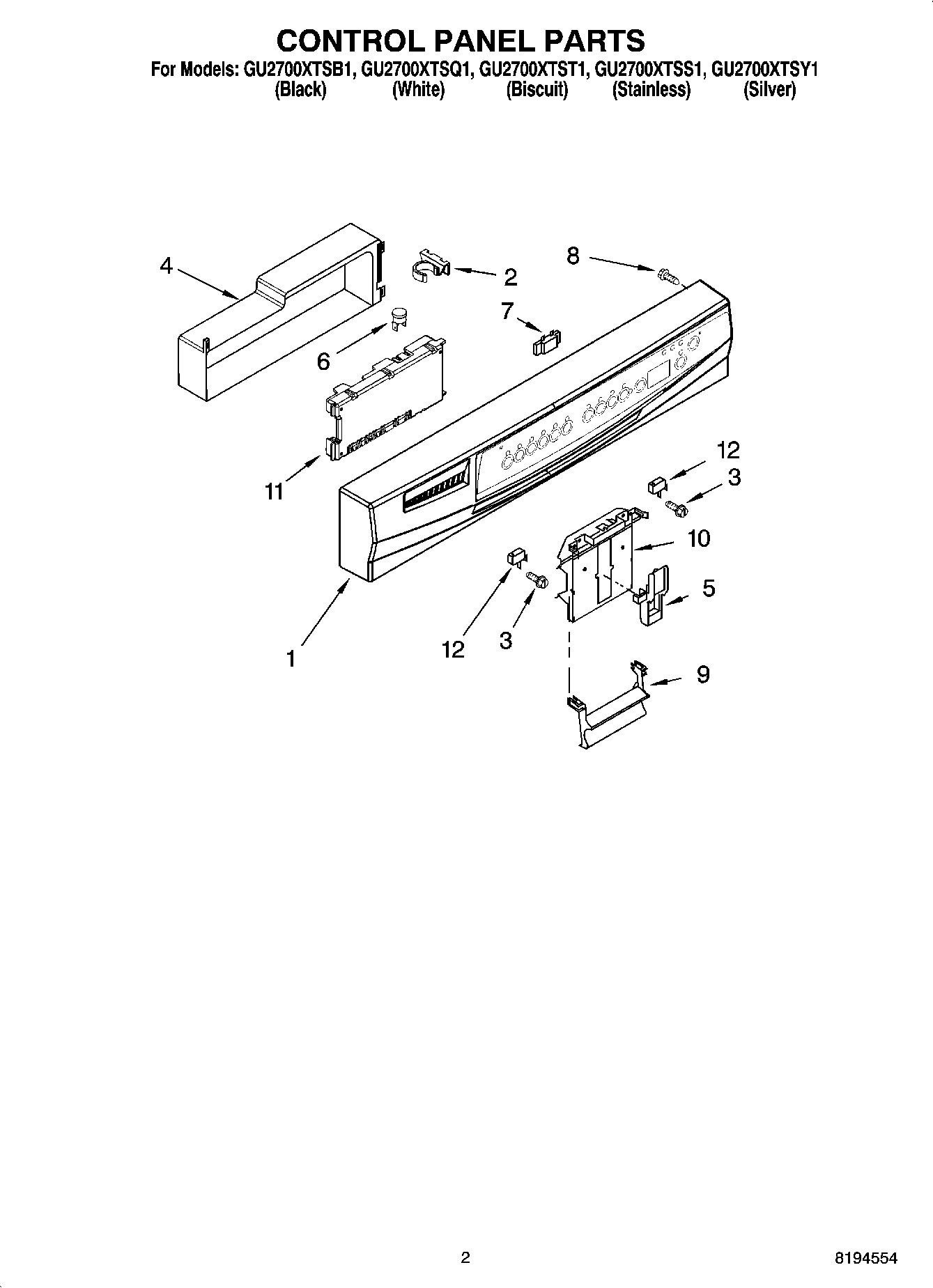

GU2700XTSS1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Asm. Includes Active Overlay & Insert (Silver)
1	Console Asm. Includes Active Overlay & Insert (Biscuit)
1	Console Asm. Includes Active Overlay & Insert (White)
1	Console Asm. Includes Active Overlay & Insert (Black)
2	Clip, BI-Metal
3	WP3400412 Whirlpool Dishwasher Screw
4	Cover Control Shield Assembly
5	WP8524471 Whirlpool Dishwasher Actuator
6	W10258275 Whirlpool Dishwasher Bimetal Fuse
7	WP8269206 Whirlpool Dishwasher Display
8	WPW10348409 Whirlpool Screw
9	Handle, Latch (Black)
9	8575334 Whirlpool Dishwasher Handle
9	Handle, Latch (White)
9	8575333 Whirlpool Dishwasher Handle
10	8193882 Whirlpool Dishwasher Primary Latch Bolt
11	WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
12	WP8269209 Whirlpool Door Switch
