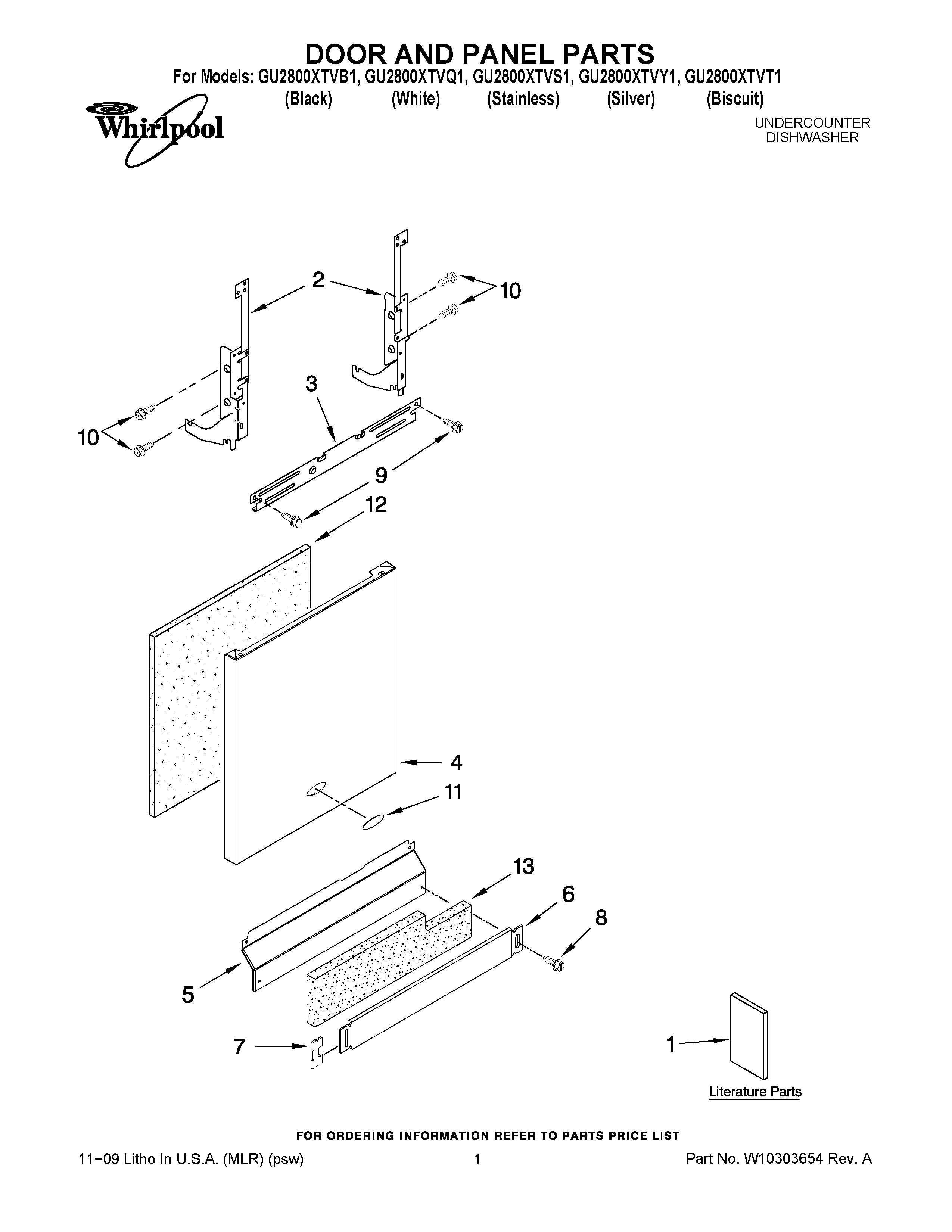

GU2800XTVY1 01 – DOOR AND PANEL PARTS

GU2800XTVY1 01 – DOOR AND PANEL PARTS

Written by

in

GU2800XTVY1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1GUIDE, USE & CARE (SPANISH)
1Instructions, Installation
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1TECH SHEET (ENGLISH)
1ENERGY GUIDE
1TECH SHEET (FRENCH)
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Panel Front (Stainless)
4Panel Front (Black)
4Panel Front (White)
4Panel Front (Biscuit)
5W10871198 Whirlpool Dishwasher Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10909066 Whirlpool Dishwasher Panel
6TOE PANEL (INCLUDES ITEMS 11 & 18) (BISCUIT)
6W10799406 Whirlpool Dishwasher Toe Panel
7WP8269016 Whirlpool Clip Assembly
8WPW10503549 Whirlpool Dishwasher Retainer Clip
8WPW10503550 Whirlpool Dishwasher Retainer
8WP302868 Whirlpool Screw
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
11NAMEPLATE
12WPW10073520 Whirlpool Dishwasher Insulation Pad
13SHIELD
