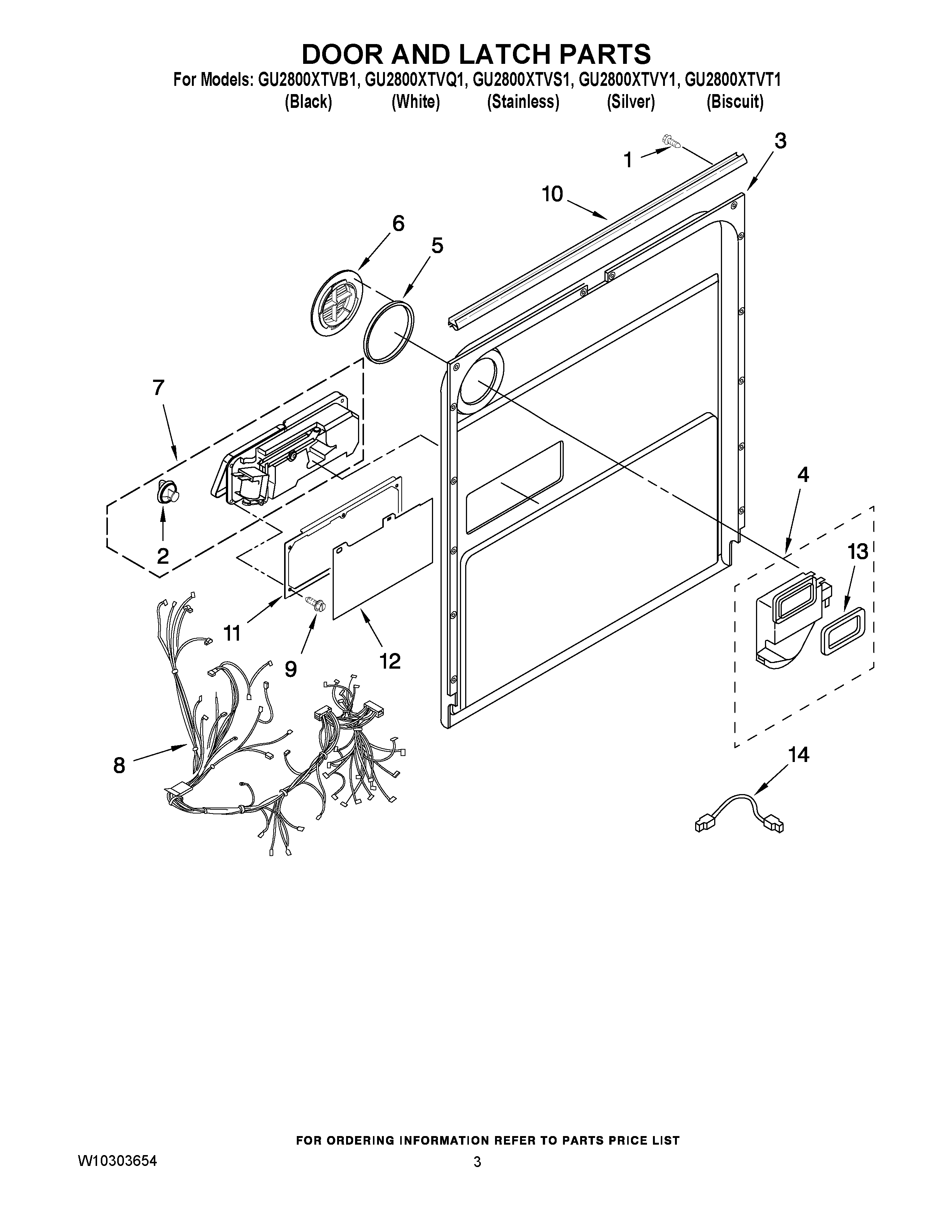

GU2800XTVY1 03 – DOOR AND LATCH PARTS

GU2800XTVY1 03 – DOOR AND LATCH PARTS

Written by

in

GU2800XTVY1 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348413 Whirlpool Dishwasher Screw
2WP8558307 Whirlpool Rinse Aid Dispenser Cap
3Inner Door Mastic Assembly (Also Order Item 6)
4WPW10164259 Whirlpool Dishwasher Vent Assembly
5WP8269259 Whirlpool Air Vent Gasket
6Deflector, Vent (Also Order Item 5)
7WPW10195175 Whirlpool Dishwasher Detergent Dispenser
8Wiring Harness Main
9WPW10177098 Whirlpool Dishwasher Screw
10WP8269296 Whirlpool Dishwasher Seal
11WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
12WP8531865 Whirlpool Dishwasher Door Shield
13WP8269258 Whirlpool Dishwasher Gasket
14Harness, Vent Motor
