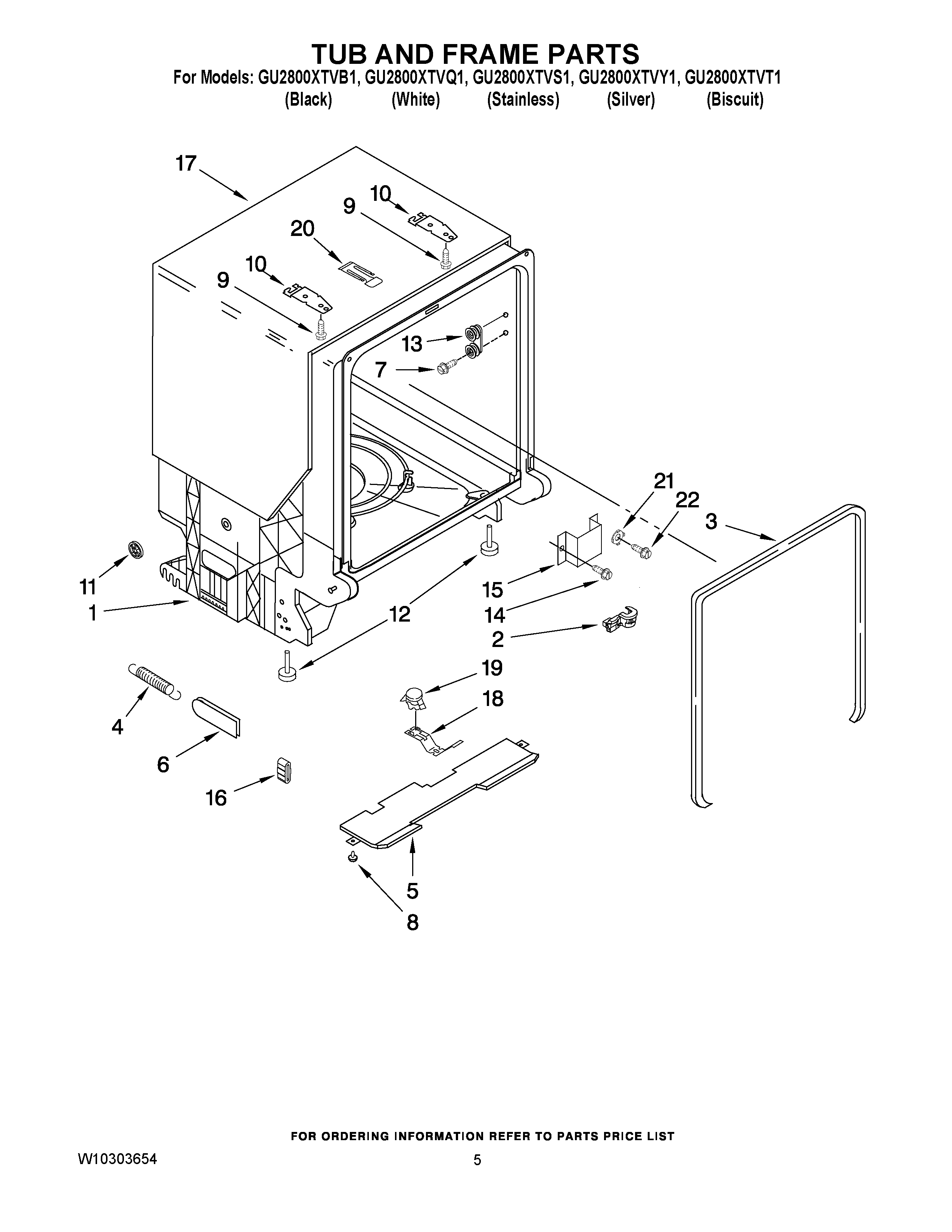

GU2800XTVY1 05 – TUB AND FRAME PARTS
Written by
in
GU2800XTVY1 05 – TUB AND FRAME PARTS
Products
Position
Product
1
TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2
W11384788 Whirlpool Dishwasher Relief Strainer
3
W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
4
WPW10337934 Whirlpool Spring Assembly
5
WPW10746770 Whirlpool Insulation Pad
6
WP8268990 Whirlpool Dishwasher Door Spring Bushing
7
WPW10348407 Whirlpool Dishwasher Screw
8
WP3400924 Whirlpool Dishwasher Retainer
9
WP308685 Whirlpool Microwave Screw
10
WP8269145 Whirlpool Dishwasher Mounting Bracket
11
WP8269831 Whirlpool Dishwasher Wheel
12
8193716 Whirlpool Leveling Leg
13
WP8575897 Whirlpool Dishwasher Tub Wheel
14
WP3400892 Whirlpool Dishwasher Screw
15
WP8268991 Whirlpool Dishwasher Cover Assembly
16
WP8268961 Whirlpool Friction Pad
17
W10877094 Whirlpool Shield
18
W10539489 Whirlpool Dishwasher Bracket-Stat
19
WP661566 Whirlpool High Limit Thermostat
20
WP8580309 Whirlpool Dishwasher Strike
21
WP3378128 Whirlpool Dishwasher Washer
22
WP3400014 Whirlpool Dishwasher Screw
←
