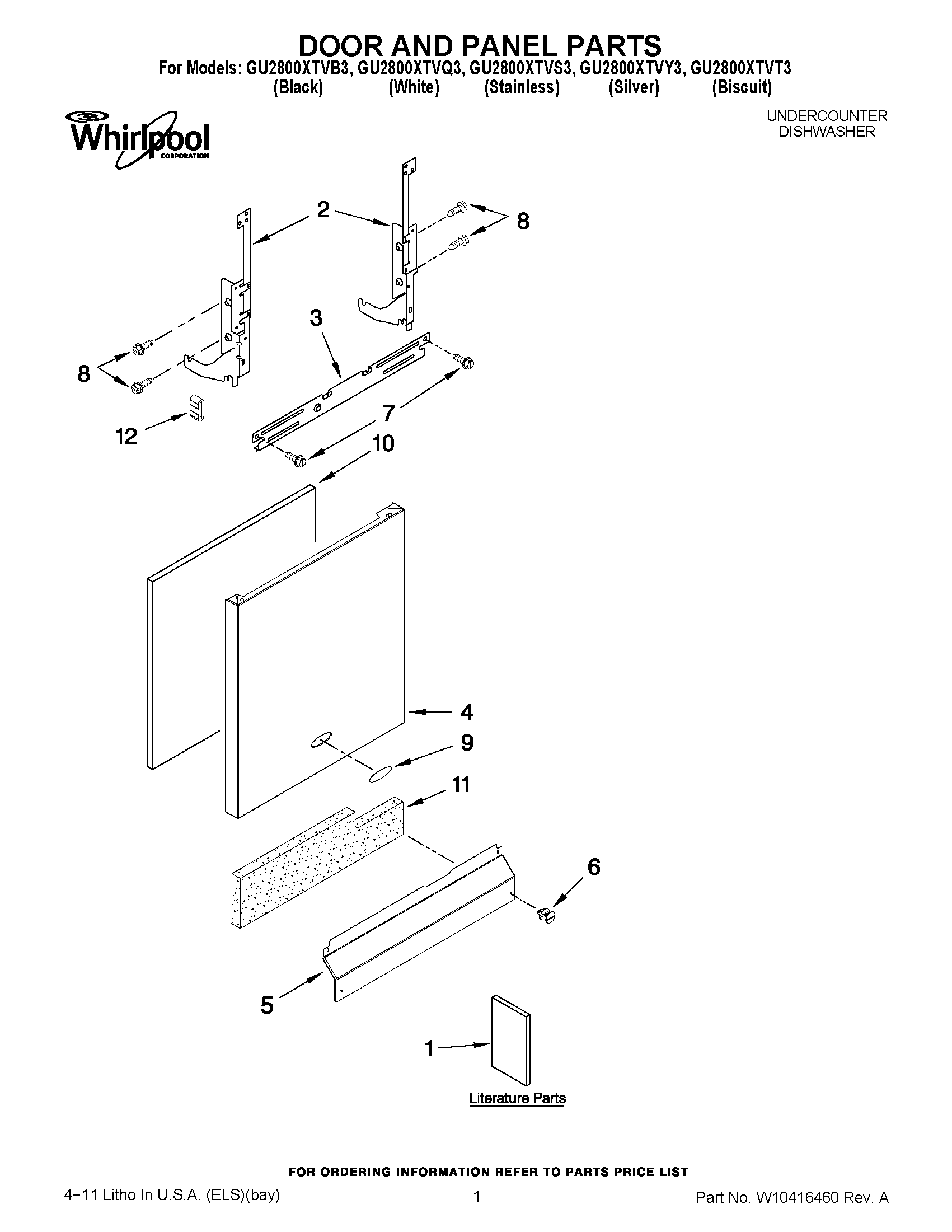

GU2800XTVY3 01 – DOOR AND PANEL PARTS

GU2800XTVY3 01 – DOOR AND PANEL PARTS

Written by

in

GU2800XTVY3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1INSTRUCTIONS, INSTALLATION
1TECH SHEET (ENGLISH)
1TECH SHEET (FRENCH)
1GUIDE, USE & CARE (SPANISH)
1ENERGY GUIDE
2W11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3Stiffener, Door
4PANEL FRONT (BLACK)
4PANEL FRONT (WHITE)
4PANEL FRONT (STAINLESS)
4PANEL FRONT (BISCUIT)
5W10827631 Whirlpool Toe Panel
5W10827632 Whirlpool Dishwasher Control Panel
5W10369028 Whirlpool Dishwasher Panel
6WPW10503550 Whirlpool Dishwasher Retainer
6WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
6WPW10503549 Whirlpool Dishwasher Retainer Clip
7WP489069 Whirlpool Compactor Screw
8WPW10109200 Whirlpool Screw
9NAMEPLATE
10WPW10073520 Whirlpool Dishwasher Insulation Pad
11SHIELD
12W10321574 Whirlpool Dishwasher Shield
