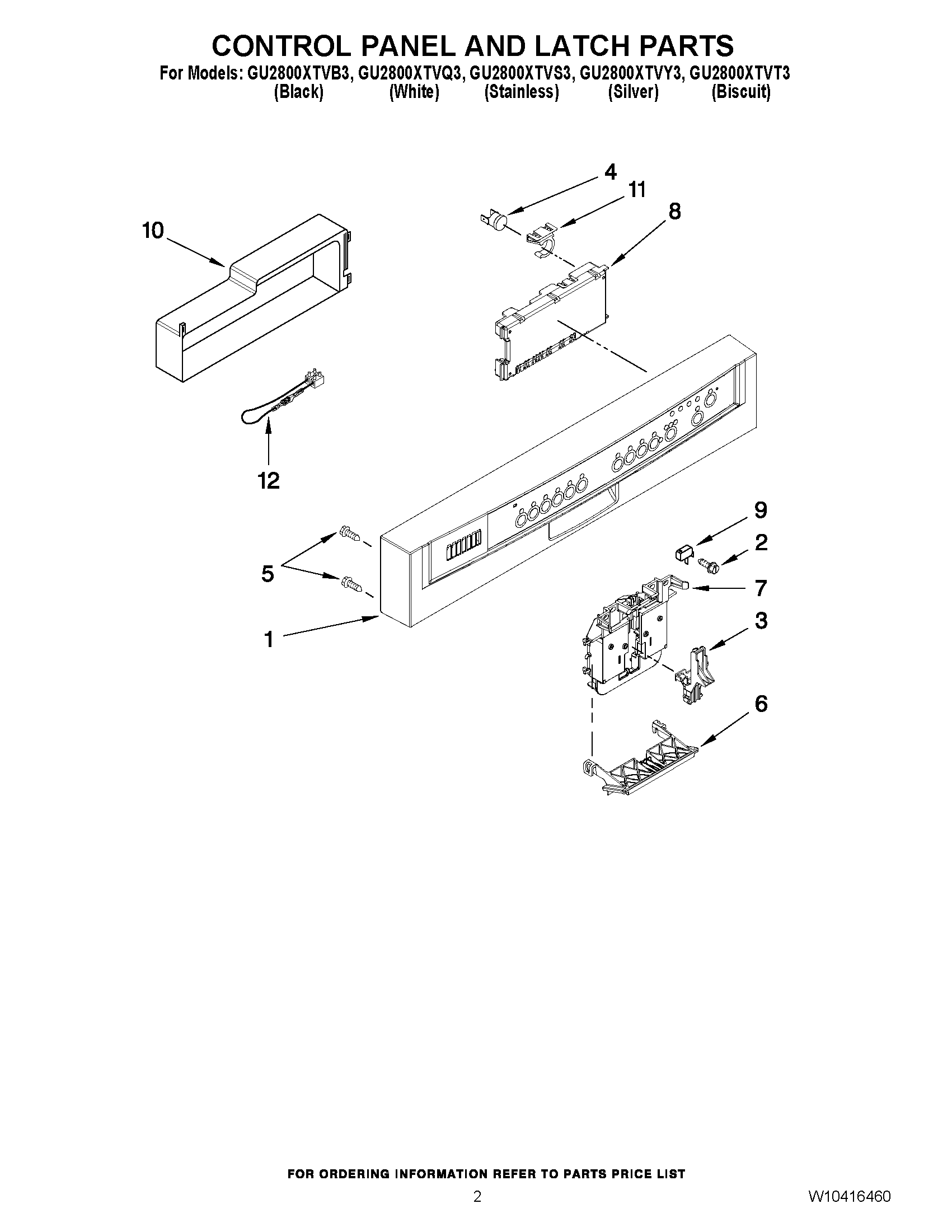

GU2800XTVY3 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10175356 Whirlpool Dishwasher Control Panel
1Console Asm. (Includes Active Overlay & Insert) (White)
1Console Asm. (Includes Active Overlay & Insert) (Black)
1Console Asm. (Includes Active Overlay & Insert) (Biscuit)
2WP3400412 Whirlpool Dishwasher Screw
3WP8524471 Whirlpool Dishwasher Actuator
4W10258275 Whirlpool Dishwasher Bimetal Fuse
5WPW10348413 Whirlpool Dishwasher Screw
6Handle, Latch (White)
6Handle, Latch (Black)
68575334 Whirlpool Dishwasher Handle
68575333 Whirlpool Dishwasher Handle
78193882 Whirlpool Dishwasher Primary Latch Bolt
8WPW10285178-includeCORE Whirlpool WPW10285178 Dishwasher Electronic Control Board
9WP8269209 Whirlpool Door Switch
10Cover Control Shield Assembly
11Clip, BI-Metal
12WPW10083167 Whirlpool Dishwasher Wire Harness
