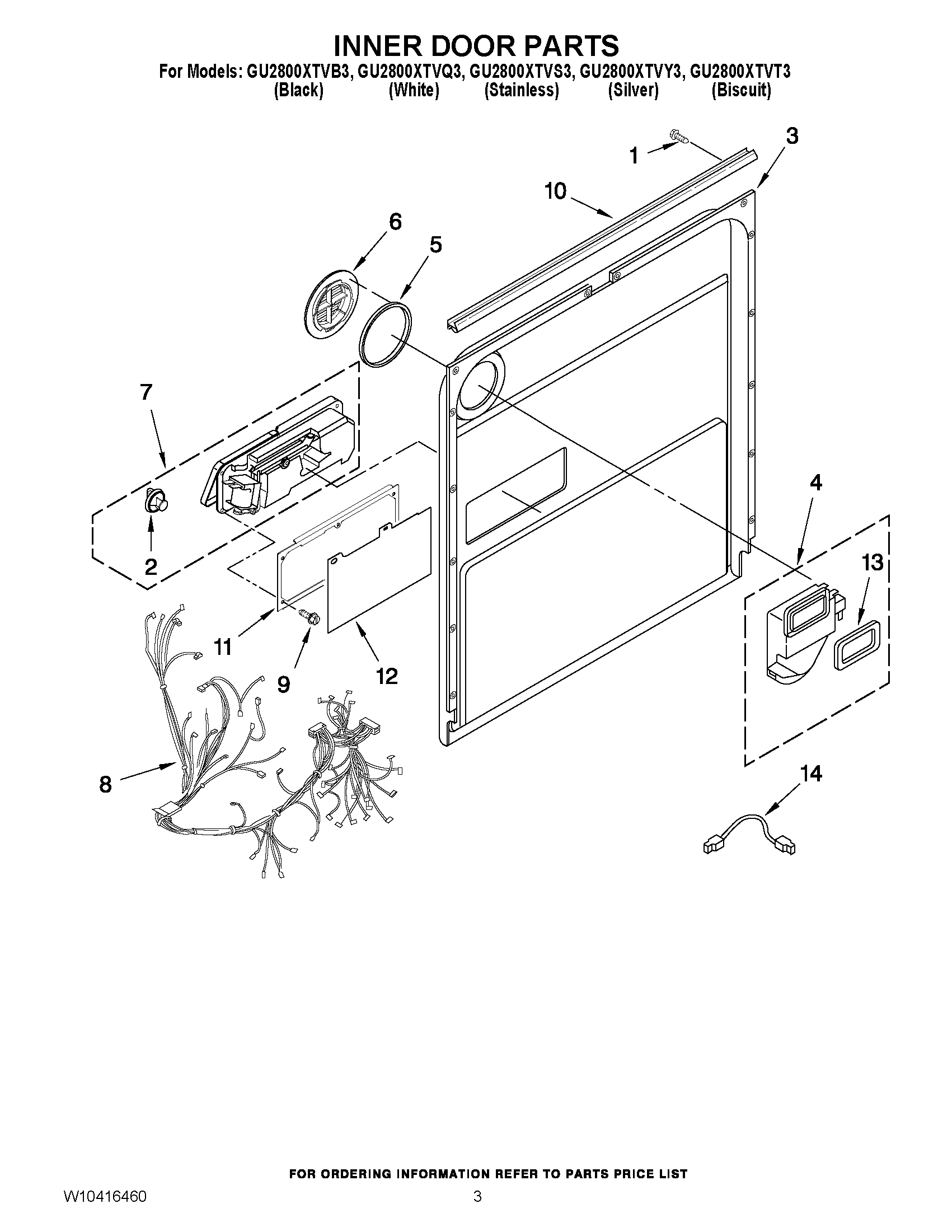

GU2800XTVY3 03 – INNER DOOR PARTS

Products

Position	Product
1	WPW10348413 Whirlpool Dishwasher Screw
2	WP8558307 Whirlpool Rinse Aid Dispenser Cap
3	Inner Door Mastic Assembly (Also Order Item 6)
4	WPW10164259 Whirlpool Dishwasher Vent Assembly
5	WP8269259 Whirlpool Air Vent Gasket
6	Deflector, Vent (Also Order Item 5)
7	WPW10195175 Whirlpool Dishwasher Detergent Dispenser
8	WIRING HARNESS MAIN
9	WPW10177098 Whirlpool Dishwasher Screw
10	WP8269296 Whirlpool Dishwasher Seal
11	WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
12	WP8531865 Whirlpool Dishwasher Door Shield
13	WP8269258 Whirlpool Dishwasher Gasket
14	Harness, Vent Motor
