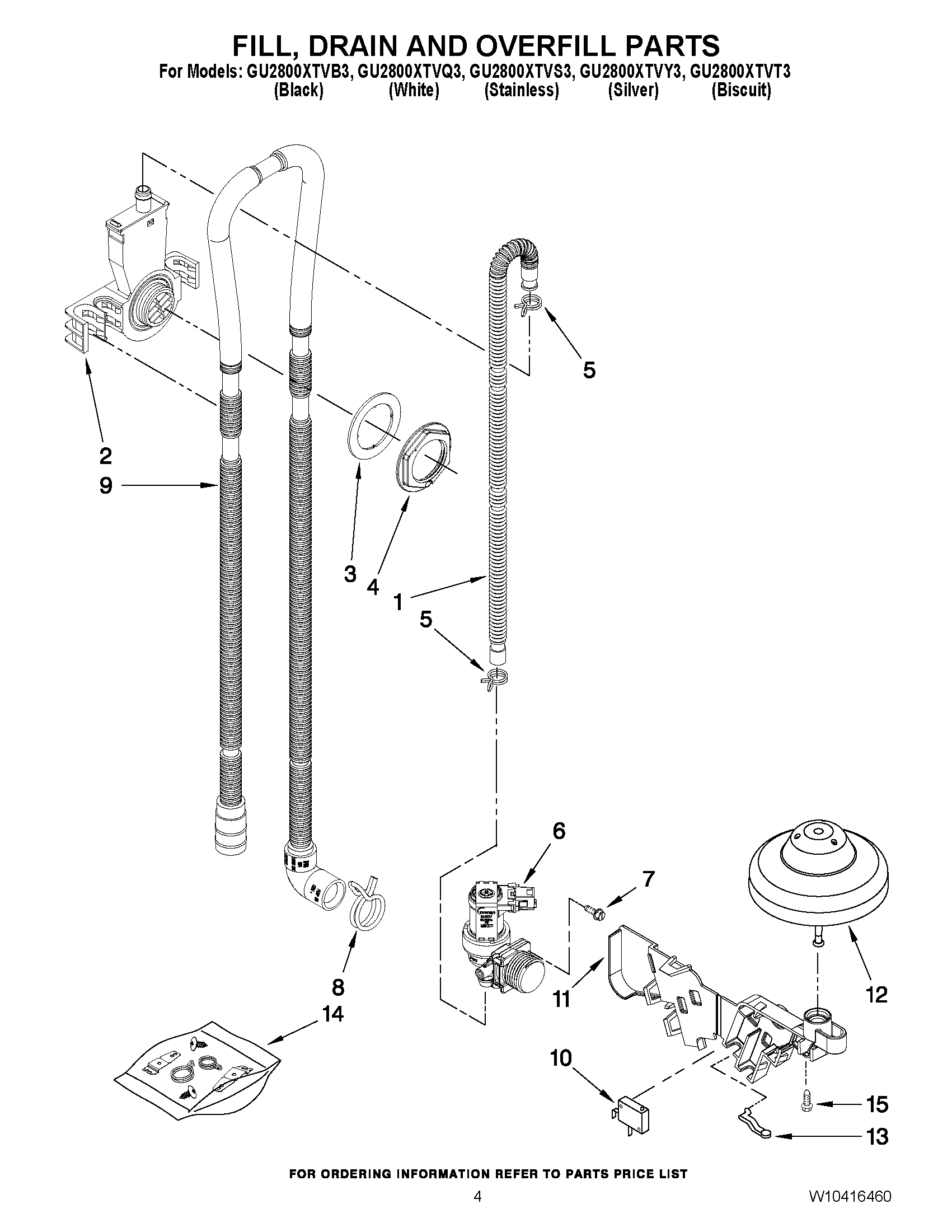

GU2800XTVY3 04 – FILL, DRAIN AND OVERFILL PARTS

GU2800XTVY3 04 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

GU2800XTVY3 04 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1W10878507 Whirlpool Inlet Hose
2WPW10195536 Whirlpool Water Inlet Valve
3WP8531323 Whirlpool Gasket Seal
4WPW10508676 Whirlpool Dishwasher Tube Nut
5WP596669 Whirlpool Hose Clamp
6WPW10327249 Whirlpool Dishwasher Water Inlet Fill Valve
7WP489069 Whirlpool Compactor Screw
8WP356138 Whirlpool Hose Clamp
9WPW10545278 Whirlpool Drain Hose
10WPW10102495 Whirlpool Dishwasher Switch
11WPW10175383 Whirlpool Dishwasher Standpipe
12WP8268895 Whirlpool Dishwasher Float Assembly
13WP8268892 Whirlpool Dishwasher Lever
14WPW10292152 Whirlpool Hardware Kit
15WP304231 Whirlpool Dishwasher Screw
