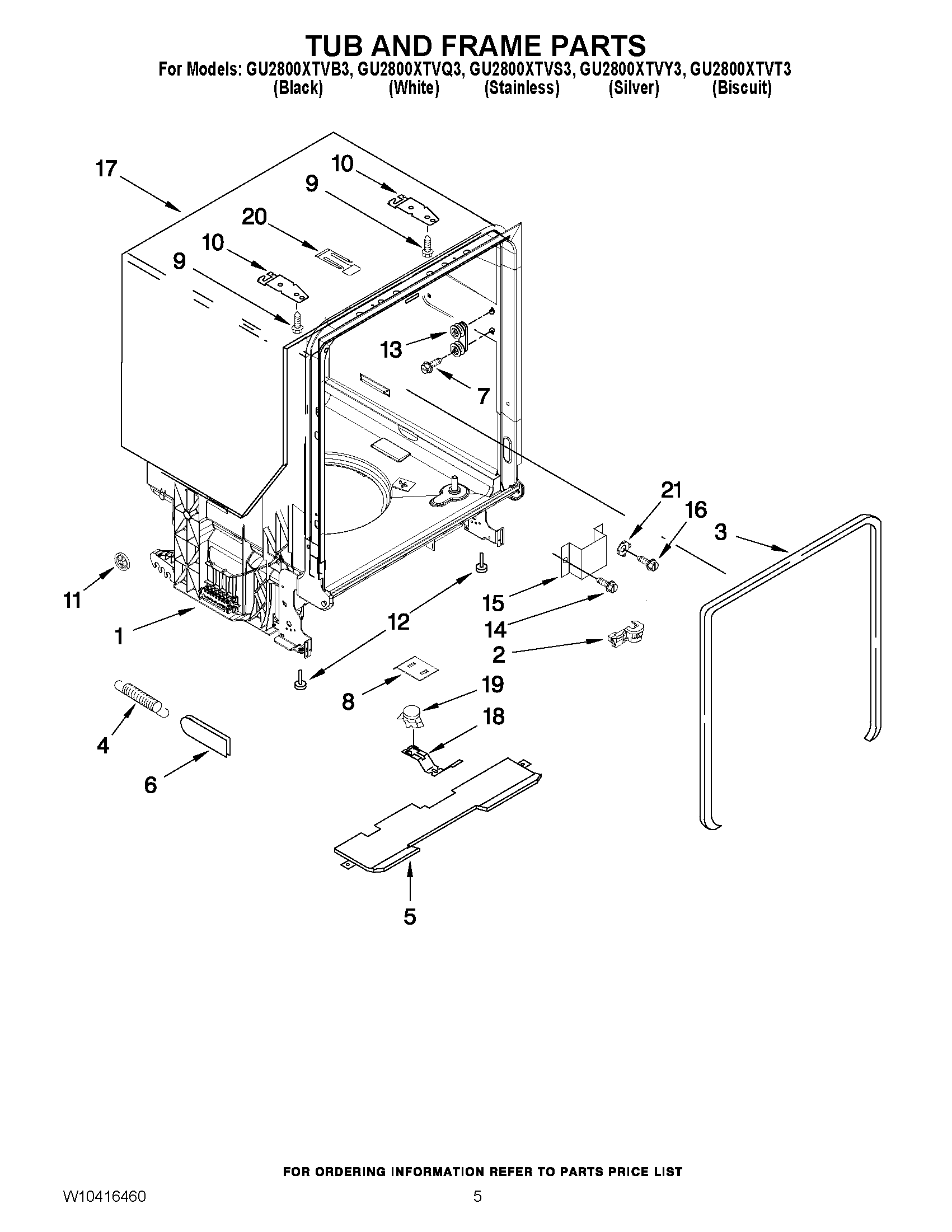

GU2800XTVY3 05 – TUB AND FRAME PARTS

GU2800XTVY3 05 – TUB AND FRAME PARTS

Written by

in

GU2800XTVY3 05 – TUB AND FRAME PARTS

Products

PositionProduct
1TUB-DISHWR
2W11384788 Whirlpool Dishwasher Relief Strainer
3W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
4WPW10337934 Whirlpool Spring Assembly
5WPW10746770 Whirlpool Insulation Pad
6WP8268990 Whirlpool Dishwasher Door Spring Bushing
8W10321574 Whirlpool Dishwasher Shield
9WP308685 Whirlpool Microwave Screw
10WP8269145 Whirlpool Dishwasher Mounting Bracket
11WP8269831 Whirlpool Dishwasher Wheel
128193716 Whirlpool Leveling Leg
13WP8575897 Whirlpool Dishwasher Tub Wheel
14WP3400892 Whirlpool Dishwasher Screw
15WP8268991 Whirlpool Dishwasher Cover Assembly
16WP3400014 Whirlpool Dishwasher Screw
17W10877094 Whirlpool Shield
18W10539489 Whirlpool Dishwasher Bracket-Stat
19WP661566 Whirlpool High Limit Thermostat
20WP8580309 Whirlpool Dishwasher Strike
21WP3378128 Whirlpool Dishwasher Washer
