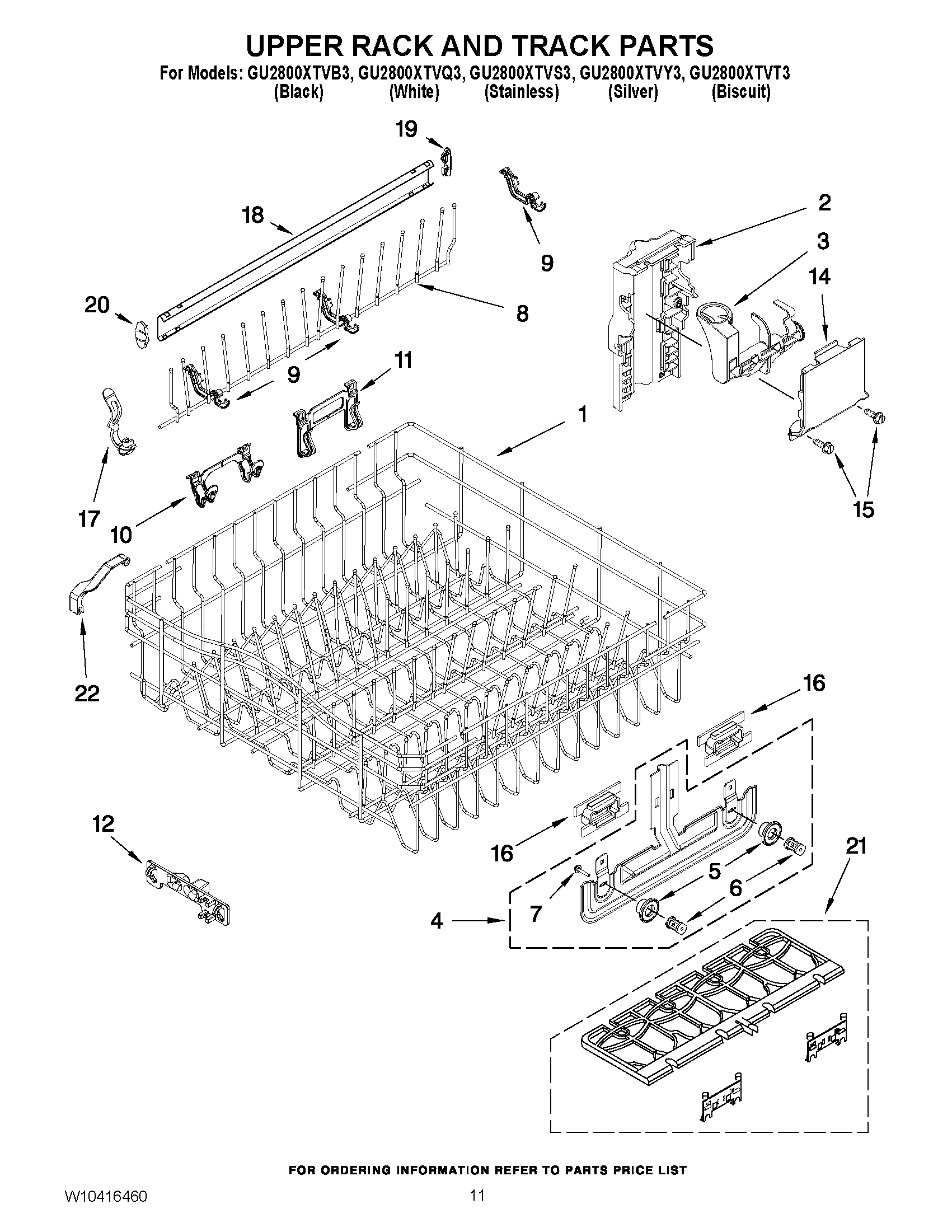

GU2800XTVY3 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	W10727422 Whirlpool Dishwasher Dishrack
2	8193741 Whirlpool Dishwasher Adjuster P1
3	Actuator, Adjuster (Left Hand)
3	Actuator, Adjuster (Right Hand)
4	W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
5	WP3385088 Whirlpool Dishwasher Upper Wheel
6	WP8268703 Whirlpool Dishwasher Rack Axle
7	WP8281156 Whirlpool Dishwasher Screw
8	W10727426 Whirlpool Dishwasher Rack Tine
9	PIVOT-TINE
10	Clip, Side Utensil
11	Clip, Side (Light Items)
12	WP8539119 Whirlpool Dishwasher Positioner
15	WP9741232 Whirlpool Dishwasher Screw
16	WP8268738 Whirlpool Dishwasher Positioner
17	WP8539113 Whirlpool Dishwasher No Flip Dishrack Clip
18	WP3385089 Whirlpool Track
20	WP8565925 Whirlpool Slide Rail Stop
21	WPW10082810 Whirlpool Dishwasher Cup Shelf
22	WPW10267076 Whirlpool Guard Clip
