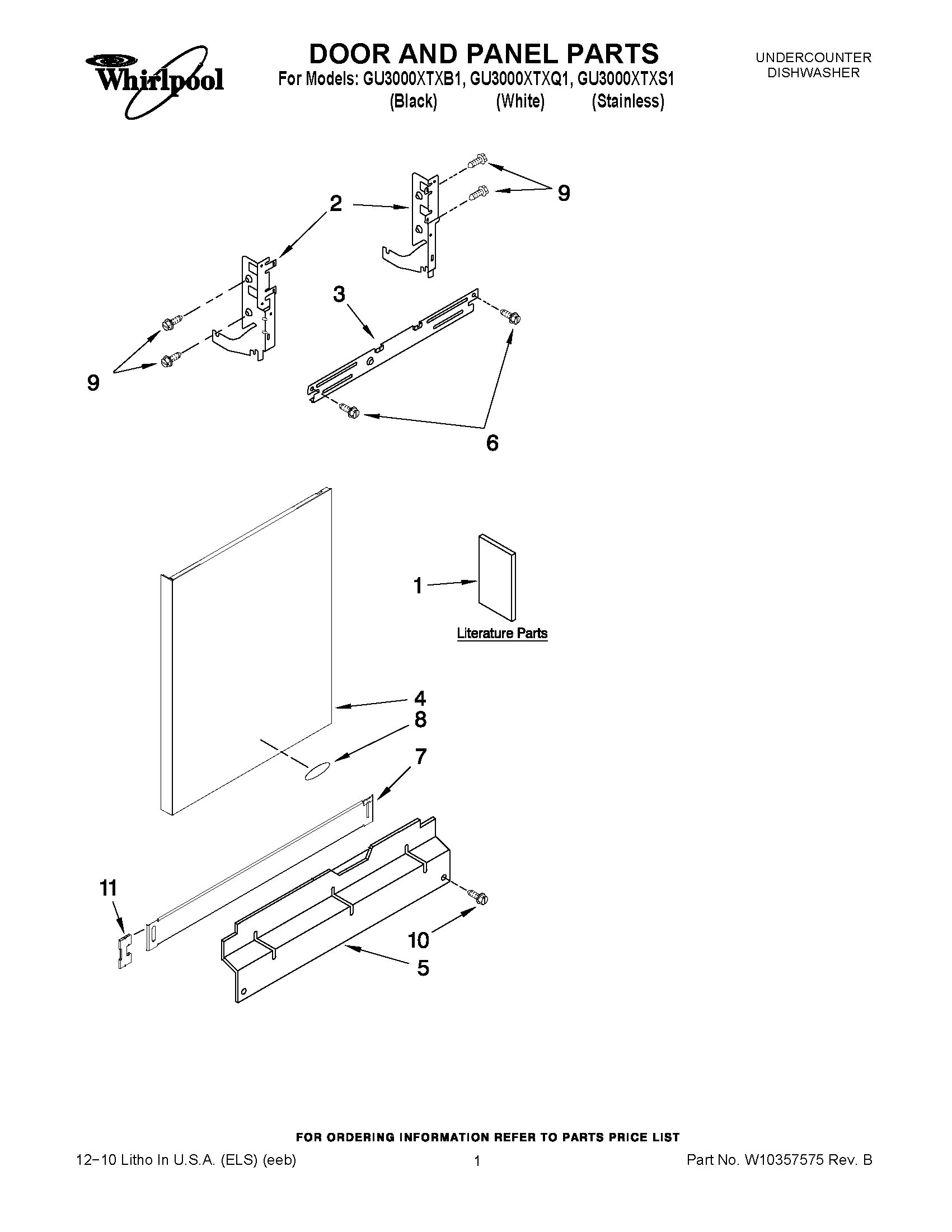

GU3000XTXB1 01 – DOOR AND PANEL PARTS

GU3000XTXB1 01 – DOOR AND PANEL PARTS

Written by

in

GU3000XTXB1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Tech Sheet
1Guide, Use & Care English/French
1Guide, Use & Care Spanish
1INSTRUCTIONS, INSTALLATION
1ENERGY GUIDE
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4PANEL FRONT (STAINLESS)
4PANEL FRONT (WHITE)
4PANEL FRONT (BLACK)
5W10909066 Whirlpool Dishwasher Panel
6WP489069 Whirlpool Compactor Screw
7WP8573287 Whirlpool Dishwasher Toe Panel
7W10909064 Whirlpool Dishwasher Black Access Panel
8NAMEPLATE
9WP3400071 Whirlpool Screw
10WPW10503549 Whirlpool Dishwasher Retainer Clip
10WP302868 Whirlpool Screw
11WP8269016 Whirlpool Clip Assembly
