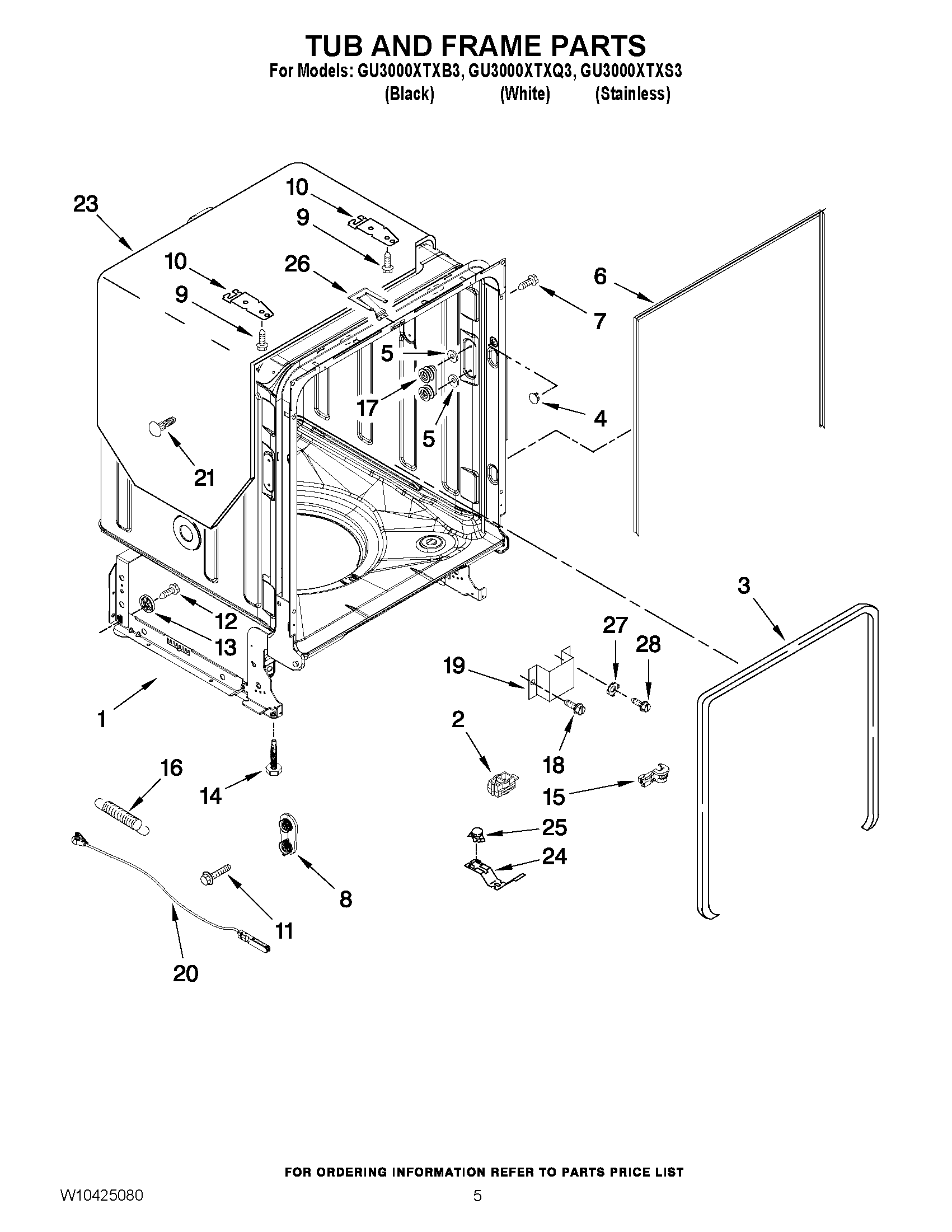

GU3000XTXB3 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	W10321574 Whirlpool Dishwasher Shield
3	W11196317 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WP9743002 Whirlpool Dishwasher Gasket
6	SEAL
7	WPW10309090 Whirlpool Dishwasher Screw
8	WPW10084086 Whirlpool Dishwasher Mount
9	WP308685 Whirlpool Microwave Screw
10	WP8269145 Whirlpool Dishwasher Mounting Bracket
11	WP3400074 Whirlpool Dishwasher Screw
12	WPW10348411 Whirlpool Roller Wheel Screw
13	WP8268977 Whirlpool Dishwasher Wheel
14	8193716 Whirlpool Leveling Leg
15	W11384788 Whirlpool Dishwasher Relief Strainer
16	SPRING
17	WP8270019 Whirlpool Dishwasher Dishrack Wheel
18	WP3400892 Whirlpool Dishwasher Screw
19	WP8268991 Whirlpool Dishwasher Cover Assembly
20	8194001 Whirlpool Dishwasher Door Balance Link Kit
21	WP304666 Whirlpool Dishwasher Retainer
23	W11086533 Whirlpool Dishwasher Shield
24	BRACKET, THERMOSTAT
25	WP661566 Whirlpool High Limit Thermostat
26	WP8580309 Whirlpool Dishwasher Strike
27	WP3378128 Whirlpool Dishwasher Washer
28	WP3400014 Whirlpool Dishwasher Screw
