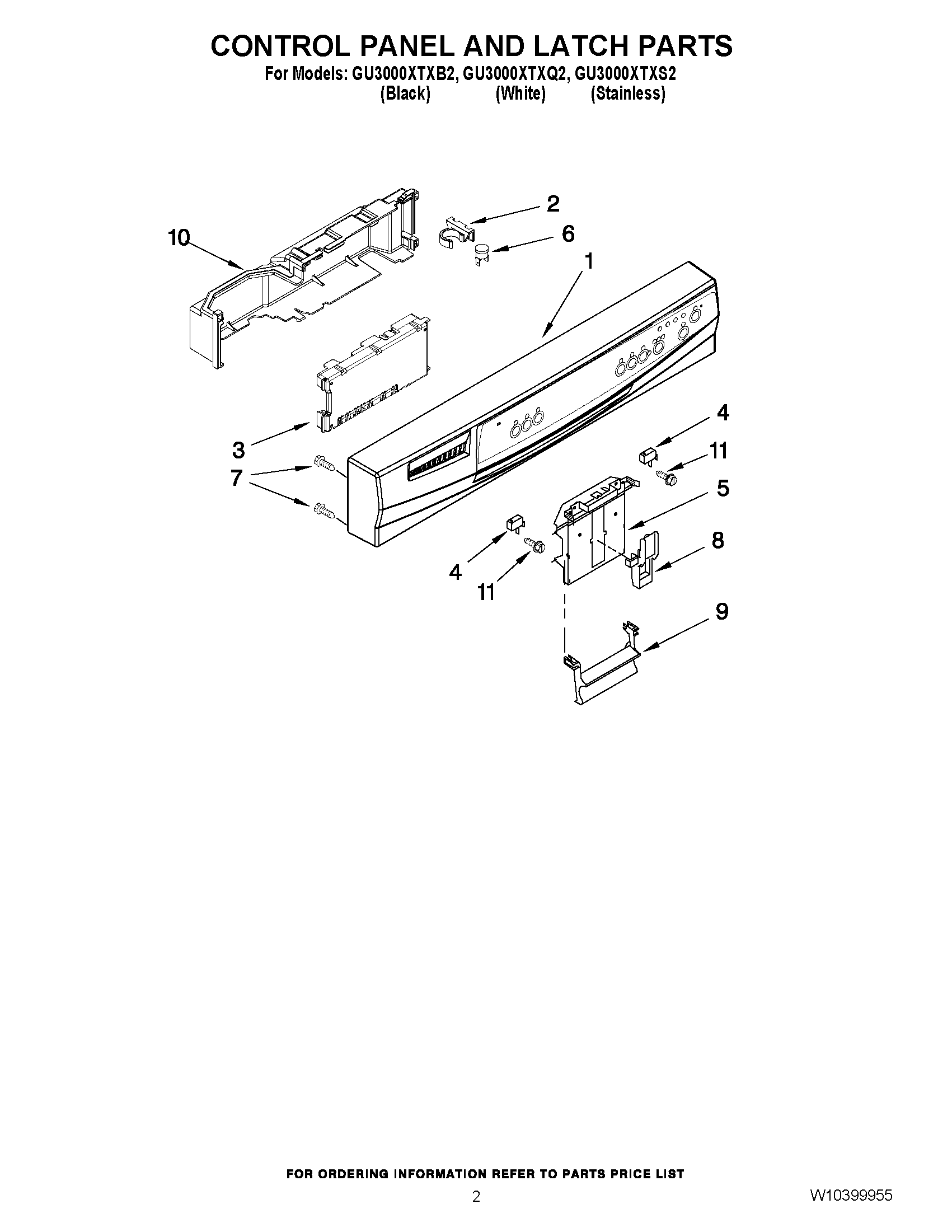

GU3000XTXS2 02 – CONTROL PANEL AND LATCH PARTS

GU3000XTXS2 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

GU3000XTXS2 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASM. (INCLUDES ACTIVE OVERLAY & INSERT) (WHITE)
1CONSOLE ASM. (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)
2Clip, BI-Metal
3WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
4WP8269209 Whirlpool Door Switch
58193882 Whirlpool Dishwasher Primary Latch Bolt
6W10258275 Whirlpool Dishwasher Bimetal Fuse
7WPW10348408 Whirlpool Dishwasher Screw
8WP8524471 Whirlpool Dishwasher Actuator
9Handle, Latch (Black)
9Handle, Latch (White)
10Cover Control Shield Assembly
11WP3400412 Whirlpool Dishwasher Screw
