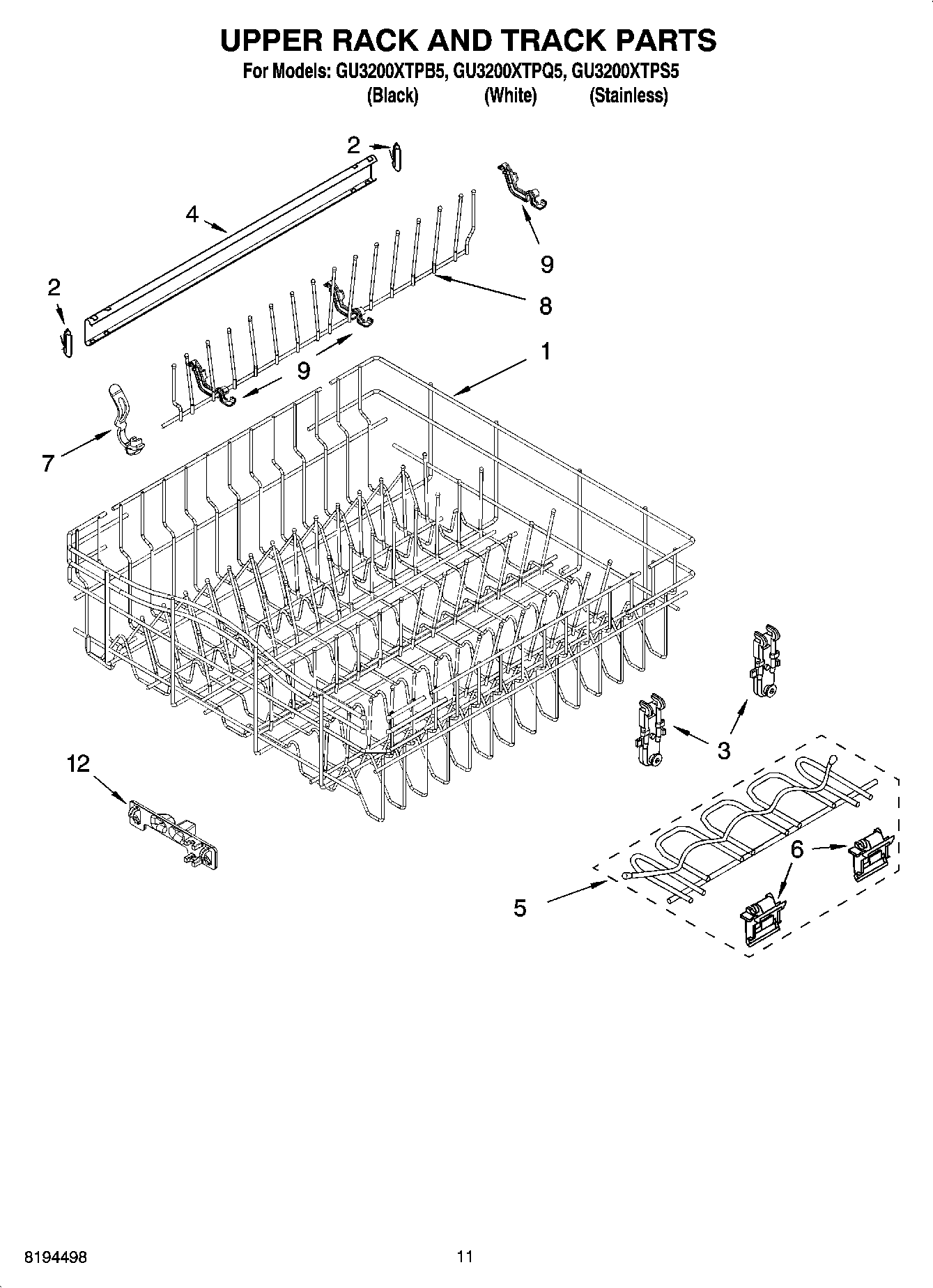

GU3200XTPB5 09 – UPPER RACK AND TRACK PARTS

GU3200XTPB5 09 – UPPER RACK AND TRACK PARTS

Written by

in

GU3200XTPB5 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10727422 Whirlpool Dishwasher Dishrack
2WP8565925 Whirlpool Slide Rail Stop
3WP8268655 Whirlpool Roller Assembly
4WP3385089 Whirlpool Track
5Cupshelf, Assembly
68269736 Whirlpool Dishwasher Clip
7WP8539113 Whirlpool Dishwasher No Flip Dishrack Clip
8W10727426 Whirlpool Dishwasher Rack Tine
9WP8539189 Whirlpool Dishwasher Pivot Tine
12WP8539119 Whirlpool Dishwasher Positioner
