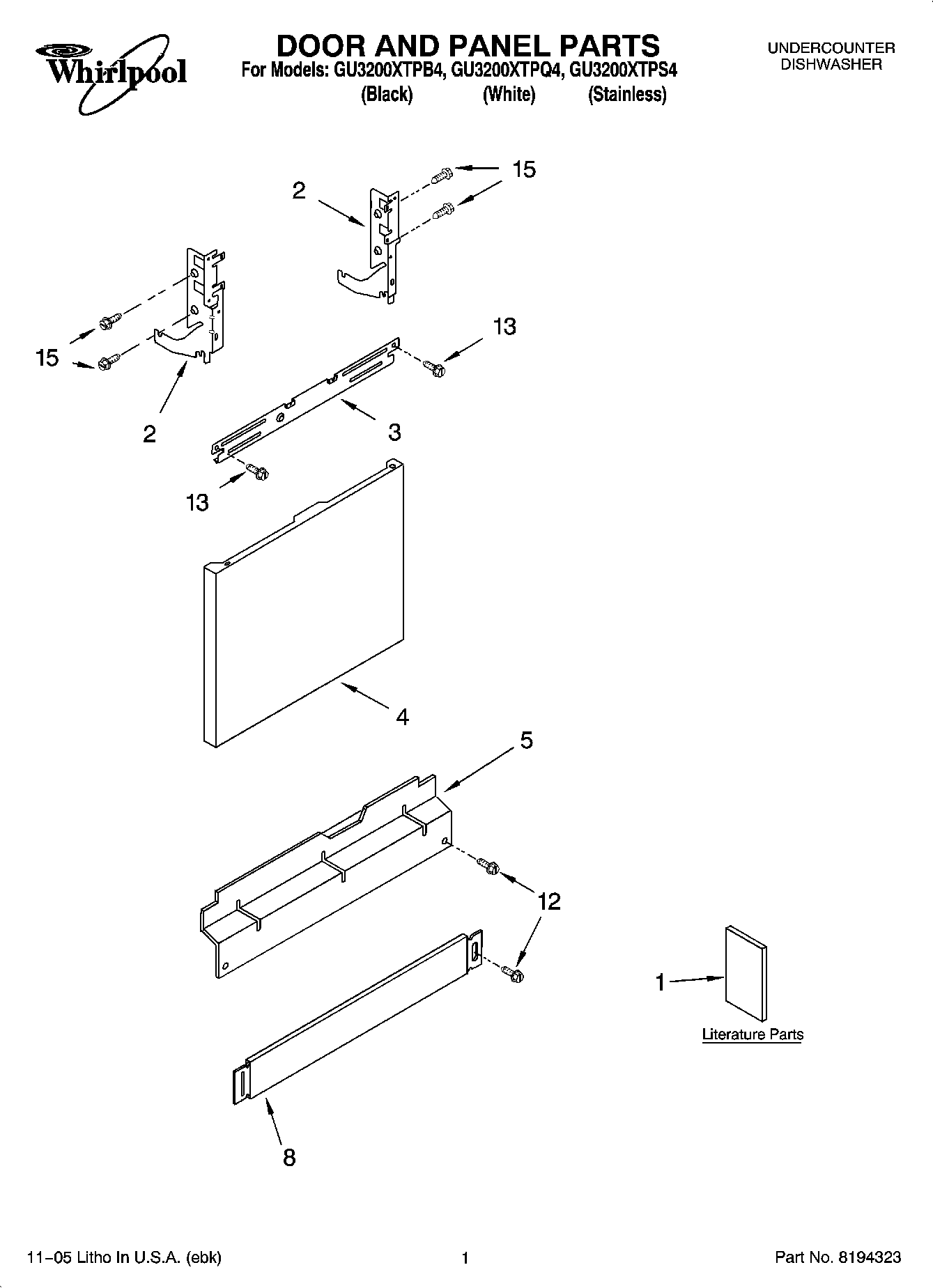

GU3200XTPS4 01 – DOOR AND PANEL PARTS

GU3200XTPS4 01 – DOOR AND PANEL PARTS

Written by

in

GU3200XTPS4 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1Guide, Use & Care Tech Sheet
1Tech Sheet
1Instructions, Installation
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4W10301571 Whirlpool Dishwasher Panel
4W10301577 Whirlpool Outer Door Panel
4Panel Front (White)
5W10909066 Whirlpool Dishwasher Panel
8WPW10586591 Whirlpool Dishwasher Toe Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
12WP302868 Whirlpool Screw
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
