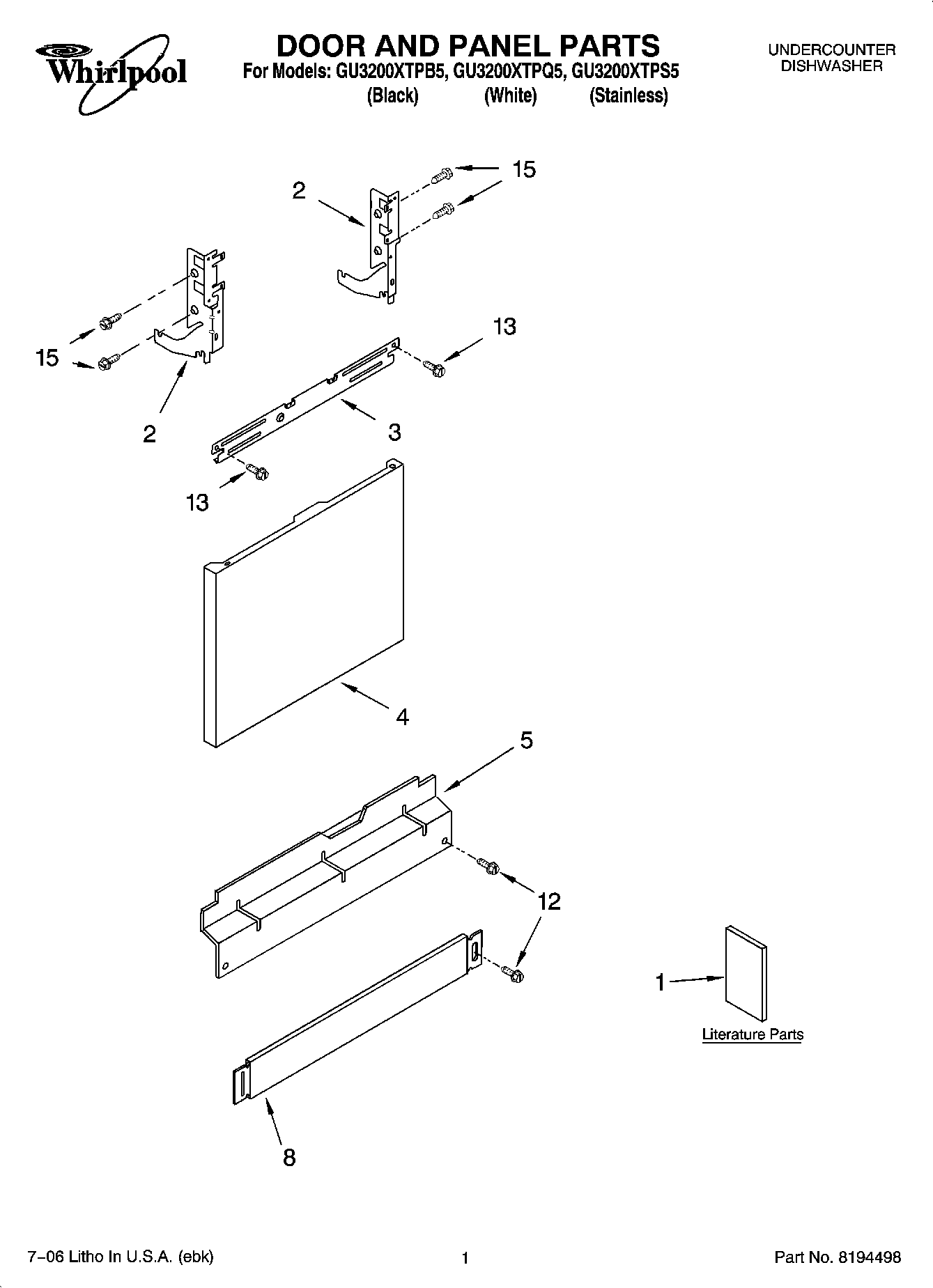

GU3200XTPS5 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Energy Guide
1	Instructions, Installation
1	Guide, Use & Care Tech Sheet
1	Tech Sheet
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	Stiffener, Door
4	W10301577 Whirlpool Outer Door Panel
4	Panel Front (White)
4	W10301571 Whirlpool Dishwasher Panel
5	W10909064 Whirlpool Dishwasher Black Access Panel
5	W10909066 Whirlpool Dishwasher Panel
8	WP8573287 Whirlpool Dishwasher Toe Panel
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
12	WP302868 Whirlpool Screw
13	WP489069 Whirlpool Compactor Screw
15	WP3400071 Whirlpool Screw
