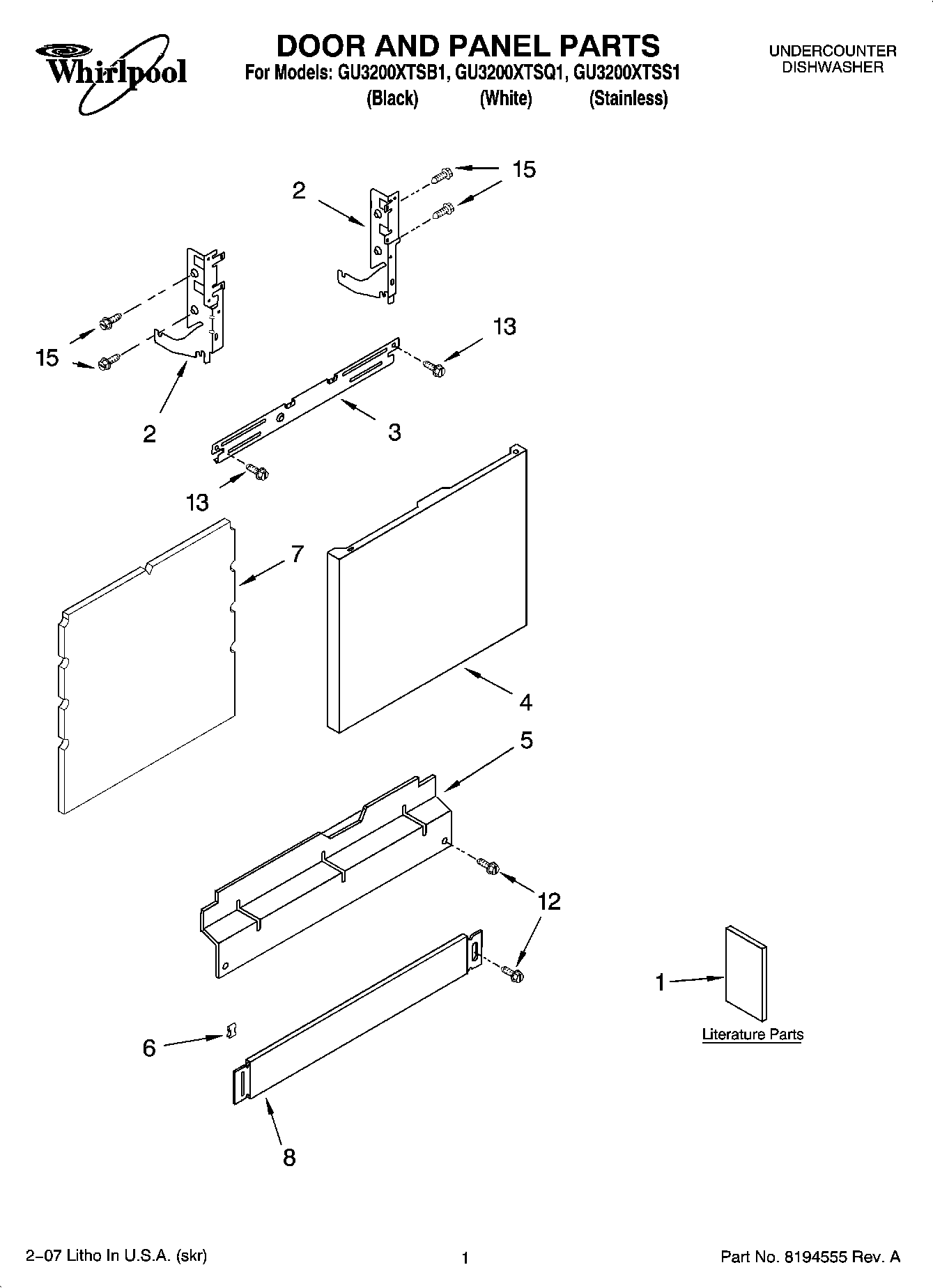

GU3200XTSQ1 01 – DOOR AND PANEL PARTS

GU3200XTSQ1 01 – DOOR AND PANEL PARTS

Written by

in

GU3200XTSQ1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Instructions, Installation
1Guide, Use & Care
1Energy Guide
1Tech Sheet
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Panel Front (White)
4W10301571 Whirlpool Dishwasher Panel
4W10301577 Whirlpool Outer Door Panel
5W10909066 Whirlpool Dishwasher Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
6WP8269016 Whirlpool Clip Assembly
7WPW10073520 Whirlpool Dishwasher Insulation Pad
8WP8573287 Whirlpool Dishwasher Toe Panel
12WP302868 Whirlpool Screw
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
