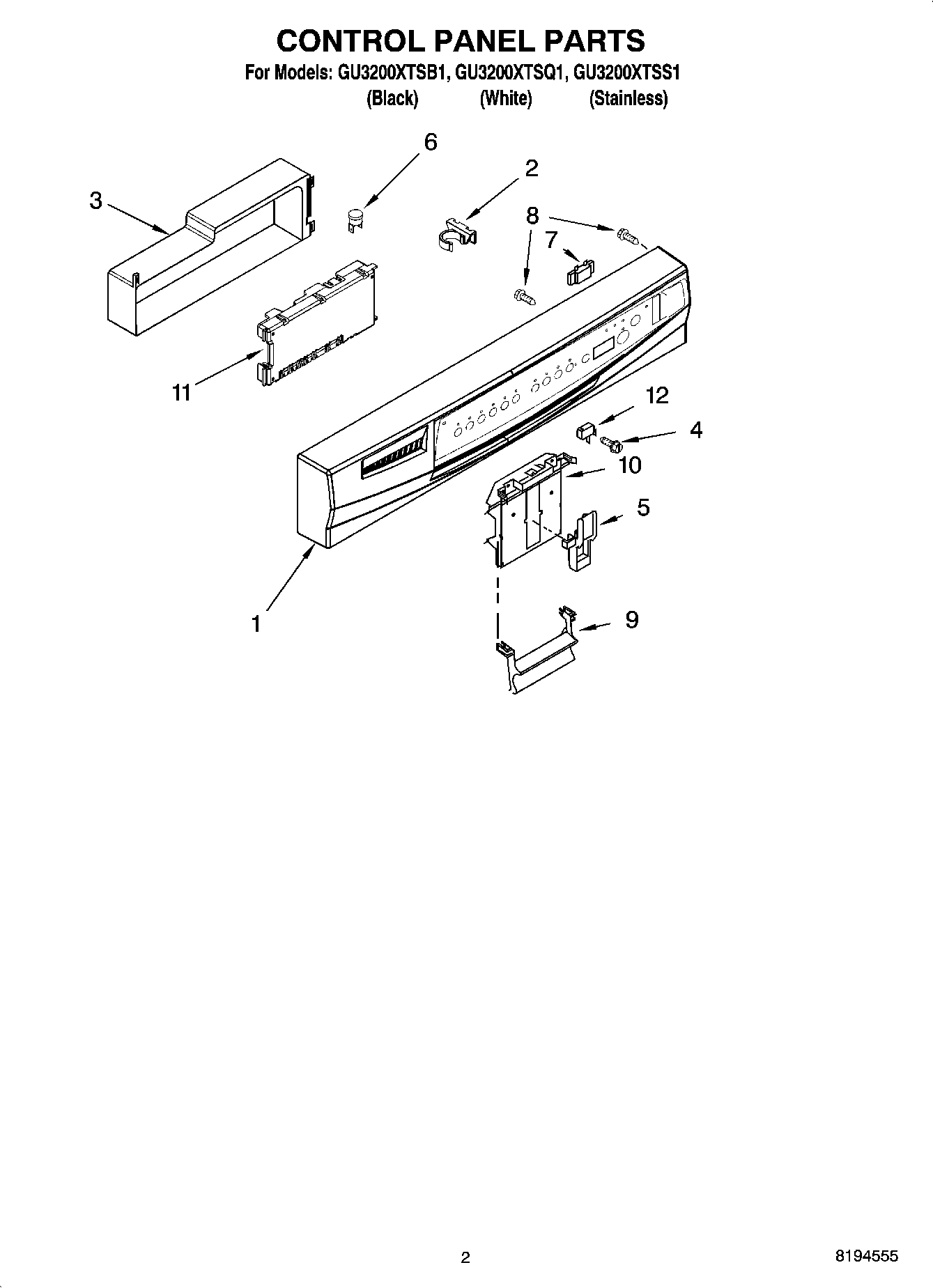

GU3200XTSQ1 02 – CONTROL PANEL PARTS

GU3200XTSQ1 02 – CONTROL PANEL PARTS

Written by

in

GU3200XTSQ1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Asm. (Includes Active Overlay & Insert) (White)
1Console Asm. (Includes Active Overlay & Insert) (Black)
2Clip, BI-Metal
3Cover Control Shield Assembly
4WP3400412 Whirlpool Dishwasher Screw
5WP8524471 Whirlpool Dishwasher Actuator
6W10258275 Whirlpool Dishwasher Bimetal Fuse
7WP8269206 Whirlpool Dishwasher Display
8WPW10348409 Whirlpool Screw
9Handle, Latch (White)
9Handle, Latch (Black)
108193882 Whirlpool Dishwasher Primary Latch Bolt
11WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
12WP8269209 Whirlpool Door Switch
