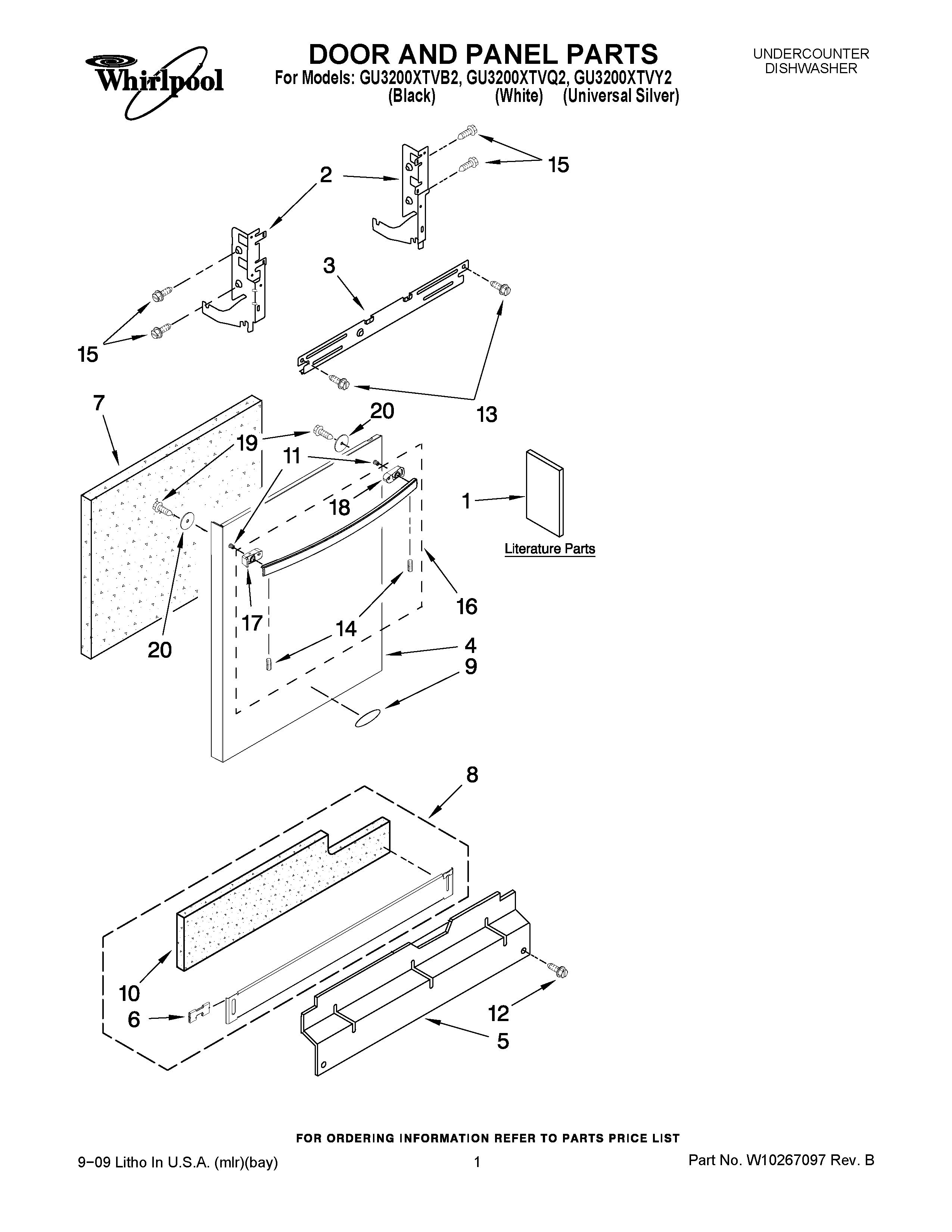

GU3200XTVB2 01 – DOOR AND PANEL PARTS

GU3200XTVB2 01 – DOOR AND PANEL PARTS

Written by

in

GU3200XTVB2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Instructions, Installation
1Tech Sheet
1Guide, Use & Care English/French
1ENERGY GUIDE
1Guide, Use & Care Spanish
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4Panel Front (Includes Items 16 & 17) (Stainless)
4Panel Front (Includes Items 9 & 19) (White)
4Panel Front (Includes Items 9 & 19) (Black)
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10909066 Whirlpool Dishwasher Panel
6WP8269016 Whirlpool Clip Assembly
7WPW10073520 Whirlpool Dishwasher Insulation Pad
8W10799406 Whirlpool Dishwasher Toe Panel
9NAMEPLATE
10SHIELD
11WP8564951 Whirlpool Dishwasher Stud
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14WP8534008 Whirlpool Screw
15WP3400071 Whirlpool Screw
16Handle (White)
16Handle (Black)
16Handle
17Endcap, Left (Black)
17Endcap, Left (White)
17Endcap, L/H
18Endcap, R/H
18Endcap, Right (Black)
18Endcap, Right (White)
19Screw
20PLATE-BACKING
