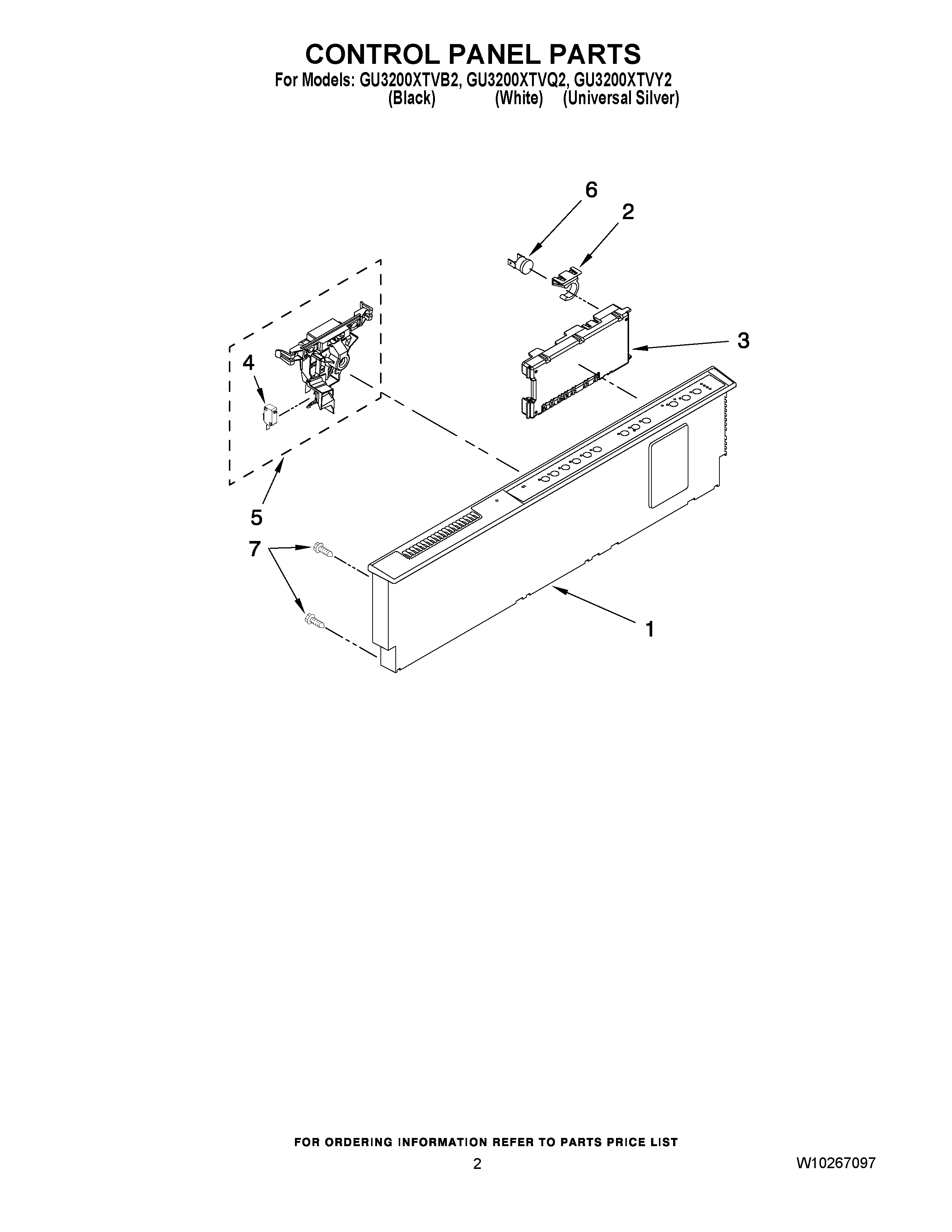

GU3200XTVB2 02 – CONTROL PANEL PARTS

GU3200XTVB2 02 – CONTROL PANEL PARTS

Written by

in

GU3200XTVB2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W10219610 Whirlpool Control Panel
1Console Asm. (Includes Active Overlay & Insert) (Black)
1Console Asm. (Includes Active Overlay & Insert) (Ultimate Silver)
2Clip, BI-Metal
3WPW10285179-includeCORE Whirlpool WPW10285179 Dishwasher Electronic Control Board
4WPW10134019 Whirlpool Dishwasher Switch
5WPW10404412 Whirlpool Door Latch
6W10258275 Whirlpool Dishwasher Bimetal Fuse
7WP8533965 Whirlpool Dishwasher Screw
