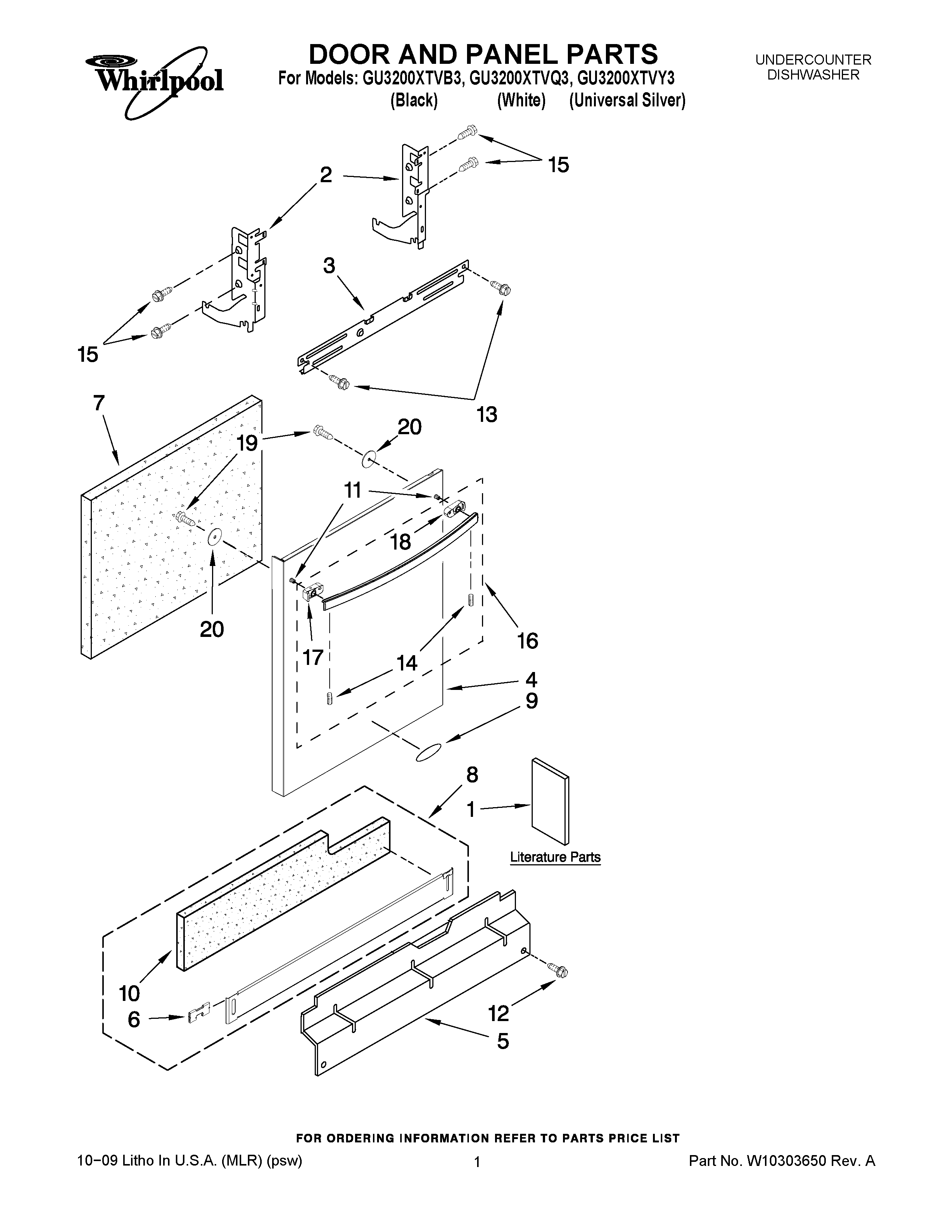

GU3200XTVQ3 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Instructions, Installation
1	Tech Sheet
1	Guide, Use & Care English/French
1	ENERGY GUIDE
1	Guide, Use & Care Spanish
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	Stiffener, Door
4	Panel Front (Includes Items 16 & 17) (Stainless)
4	Panel Front (Includes Items 9 & 19) (White)
4	Panel Front (Includes Items 9 & 19) (Black)
5	W10909064 Whirlpool Dishwasher Black Access Panel
5	W10909066 Whirlpool Dishwasher Panel
6	WP8269016 Whirlpool Clip Assembly
7	WPW10073520 Whirlpool Dishwasher Insulation Pad
8	W10799406 Whirlpool Dishwasher Toe Panel
9	NAMEPLATE
10	SHIELD
11	WP8564951 Whirlpool Dishwasher Stud
12	WP302868 Whirlpool Screw
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
13	WP489069 Whirlpool Compactor Screw
14	WP8534008 Whirlpool Screw
15	WP3400071 Whirlpool Screw
16	Handle
16	Handle (Black)
16	Handle (White)
17	ENDCAP, LEFT (ULTIMATE SILVER)
17	Endcap, Left (White)
17	Endcap, Left (Black)
18	Endcap, Right (White)
18	Endcap, Right (Black)
18	Endcap, Right (Midnight Grey)
19	Screw
20	PLATE-BACKING
