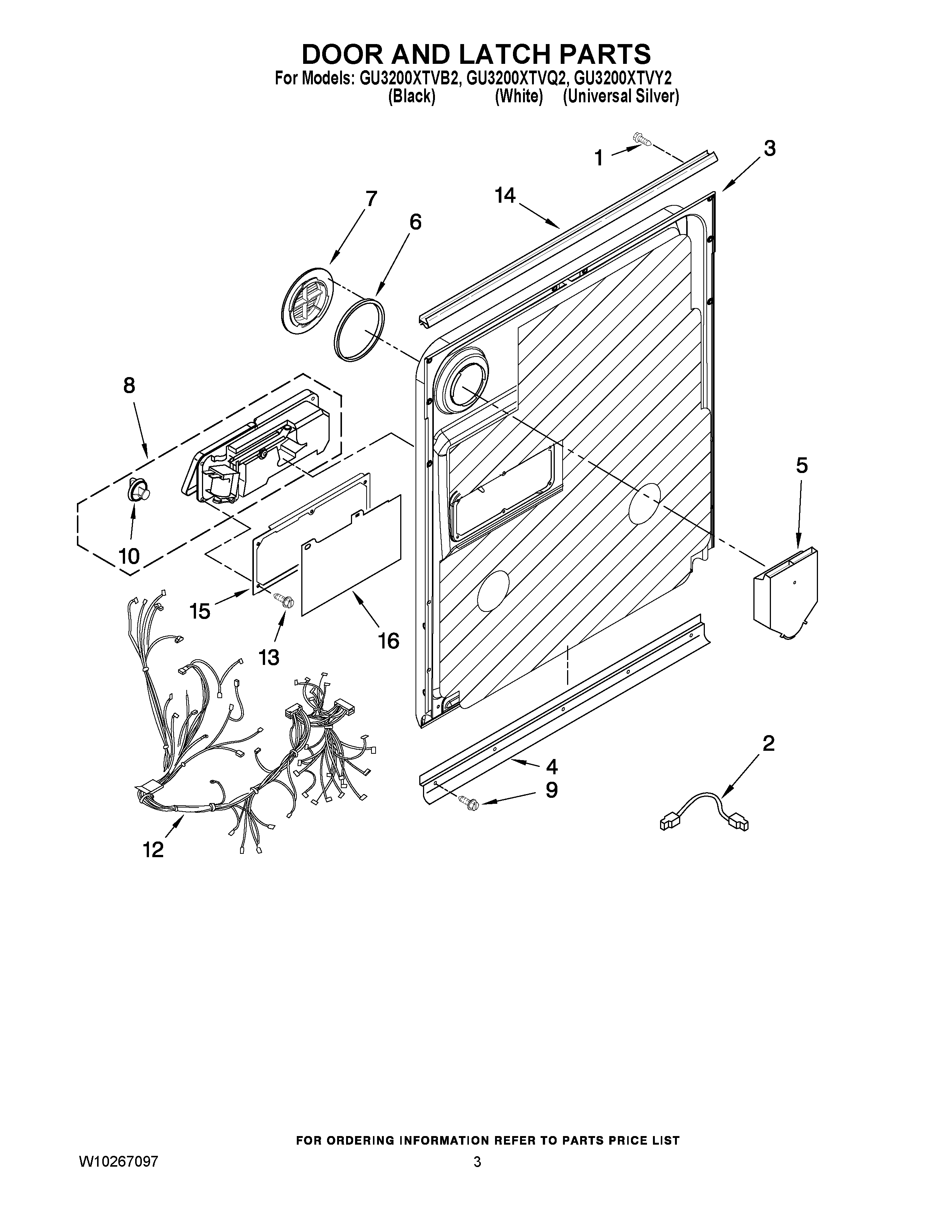

GU3200XTVY2 03 – DOOR AND LATCH PARTS

GU3200XTVY2 03 – DOOR AND LATCH PARTS

Written by

in

GU3200XTVY2 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2Harness, Vent Motor
3WPW10164357 Whirlpool Dishwasher Inner Door
4WP8268937 Whirlpool Dishwasher Air Inlet
5WP8572611 Whirlpool Air Duct Assembly
6WP8269259 Whirlpool Air Vent Gasket
7WP8545536 Whirlpool Dishwasher Deflector
8WPW10195175 Whirlpool Dishwasher Detergent Dispenser
9W11631670 Whirlpool Screw
10WP8558307 Whirlpool Rinse Aid Dispenser Cap
12WPW10413099 Whirlpool Dishwasher Wire Harness
13WPW10177098 Whirlpool Dishwasher Screw
14WP8535660 Whirlpool Dishwasher Seal
15WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
16WP8531865 Whirlpool Dishwasher Door Shield
