GU3200XTVY2 04 – FILL, DRAIN AND OVERFILL PARTS

GU3200XTVY2 04 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

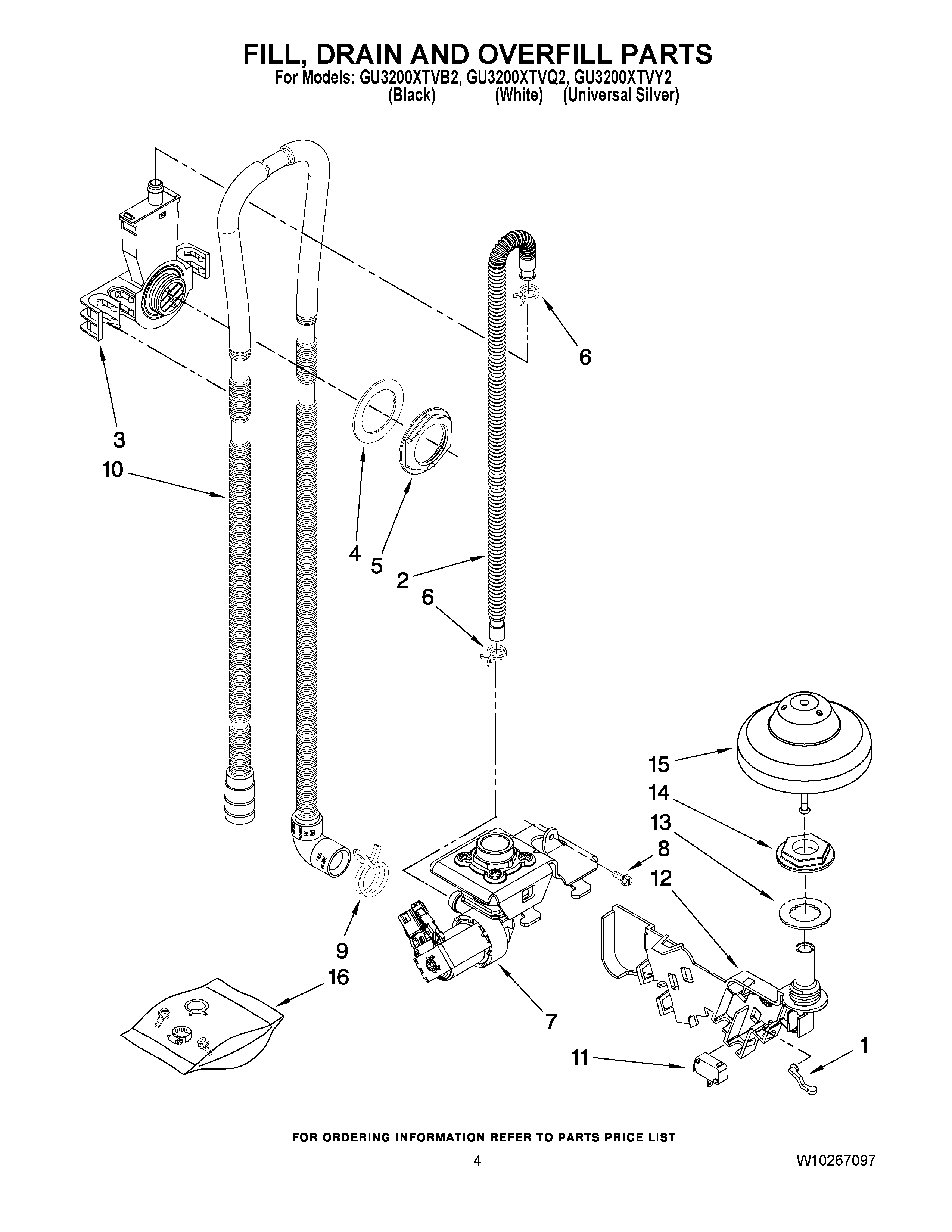

GU3200XTVY2 04 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1WP8268892 Whirlpool Dishwasher Lever
2W10878507 Whirlpool Inlet Hose
3WPW10195536 Whirlpool Water Inlet Valve
4WP8531323 Whirlpool Gasket Seal
5WPW10213825 Whirlpool Dishwasher Tube Nut
6WP596669 Whirlpool Hose Clamp
7W10648041 Whirlpool Water Inlet Valve
8WP489069 Whirlpool Compactor Screw
9WP356138 Whirlpool Hose Clamp
10WPW10545278 Whirlpool Drain Hose
11WP8268909 Whirlpool Dishwasher Switch
128193506 Whirlpool Dishwasher Switch
13WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
14WP9741998 Whirlpool Dishwasher Nut
15WP8268895 Whirlpool Dishwasher Float Assembly
16WPW10292170 Whirlpool Dishwasher Miscellaneous Parts
