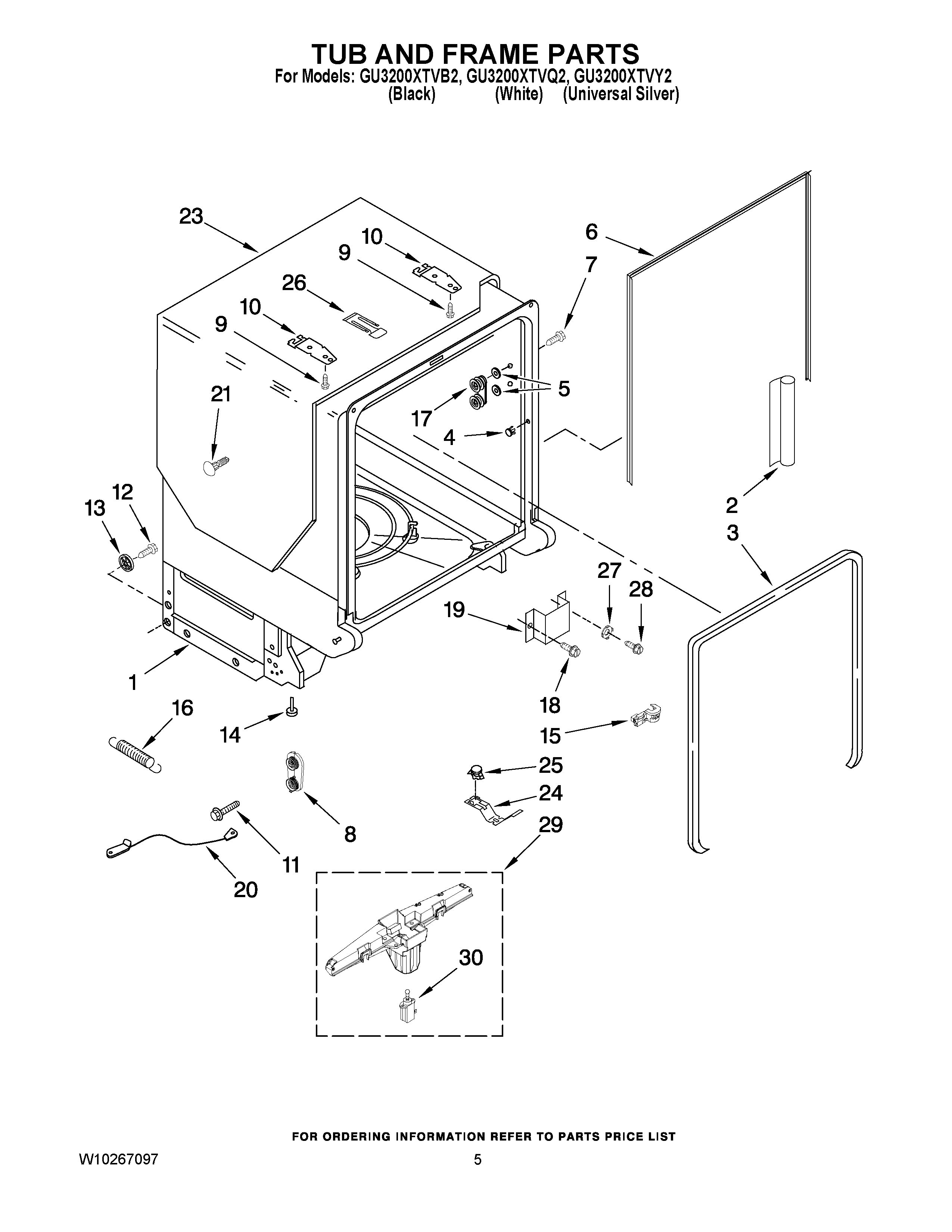

GU3200XTVY2 05 – TUB AND FRAME PARTS

Products

Position	Product
1	Tub Assembly (Includes Heater Assembly)
2	Barrier, Moisture Undercounter
3	W11196317 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WP9743002 Whirlpool Dishwasher Gasket
6	SEAL
7	WPW10348407 Whirlpool Dishwasher Screw
8	WPW10084086 Whirlpool Dishwasher Mount
9	WP308685 Whirlpool Microwave Screw
10	WP8269145 Whirlpool Dishwasher Mounting Bracket
11	WP3400074 Whirlpool Dishwasher Screw
12	Screw (2)
13	WP8268977 Whirlpool Dishwasher Wheel
14	8193716 Whirlpool Leveling Leg
15	W11384788 Whirlpool Dishwasher Relief Strainer
16	SPRING
17	WP8270019 Whirlpool Dishwasher Dishrack Wheel
18	WP3400892 Whirlpool Dishwasher Screw
19	WP8268991 Whirlpool Dishwasher Cover Assembly
20	8194001 Whirlpool Dishwasher Door Balance Link Kit
21	WP304666 Whirlpool Dishwasher Retainer
23	W10877094 Whirlpool Shield
24	9742648 Whirlpool Dishwasher Stat Bracket
25	WP661566 Whirlpool High Limit Thermostat
26	Strike, Latch
27	WP3378128 Whirlpool Dishwasher Washer
28	WP3400014 Whirlpool Dishwasher Screw
29	WP8572661 Whirlpool Dishwasher Actuator
30	Motor, Wax
