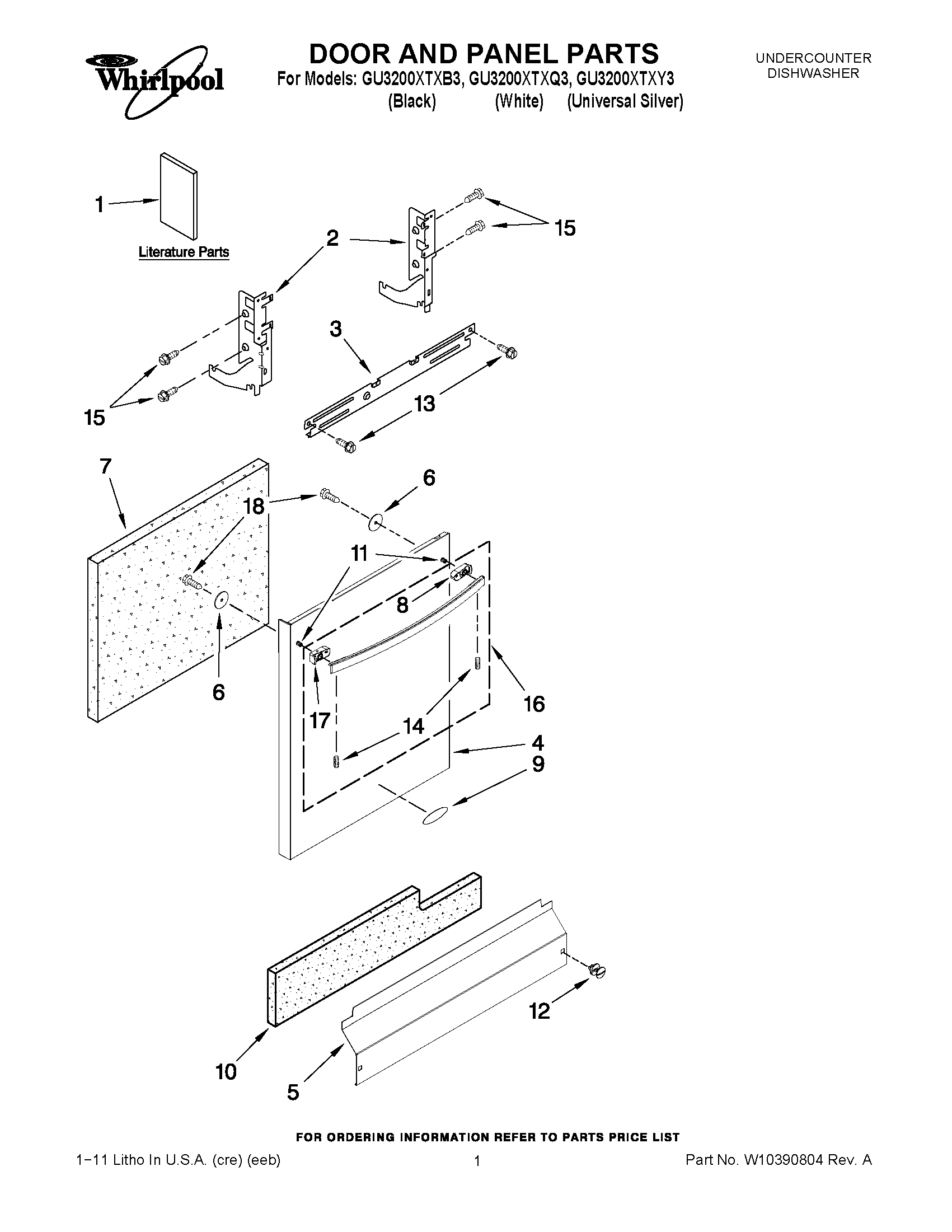

GU3200XTXB3 01 – DOOR AND PANEL PARTS

GU3200XTXB3 01 – DOOR AND PANEL PARTS

Written by

in

GU3200XTXB3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1Tech Sheet
1Guide, Use & Care English/French
1Guide, Use & Care Spanish
1INSTRUCTIONS, INSTALLATION
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Panel Front (Includes Items 9 & 19) (Black)
4Panel Front (Includes Items 9 & 19) (White)
4Panel Front (Includes Items 16 & 17) (Stainless)
5W10827632 Whirlpool Dishwasher Control Panel
5W10827631 Whirlpool Toe Panel
6PLATE-BACKING
7WPW10073520 Whirlpool Dishwasher Insulation Pad
8Endcap, Right (White)
8Endcap, Right (Black)
8Endcap, R/H
9NAMEPLATE
10SHIELD
11WP8564951 Whirlpool Dishwasher Stud
12WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13WP489069 Whirlpool Compactor Screw
14WP8534008 Whirlpool Screw
15WP3400071 Whirlpool Screw
16Handle (White)
16Handle (Black)
16Handle
17Endcap, Left (Black)
17Endcap, Left (White)
17Endcap, L/H
18Screw
