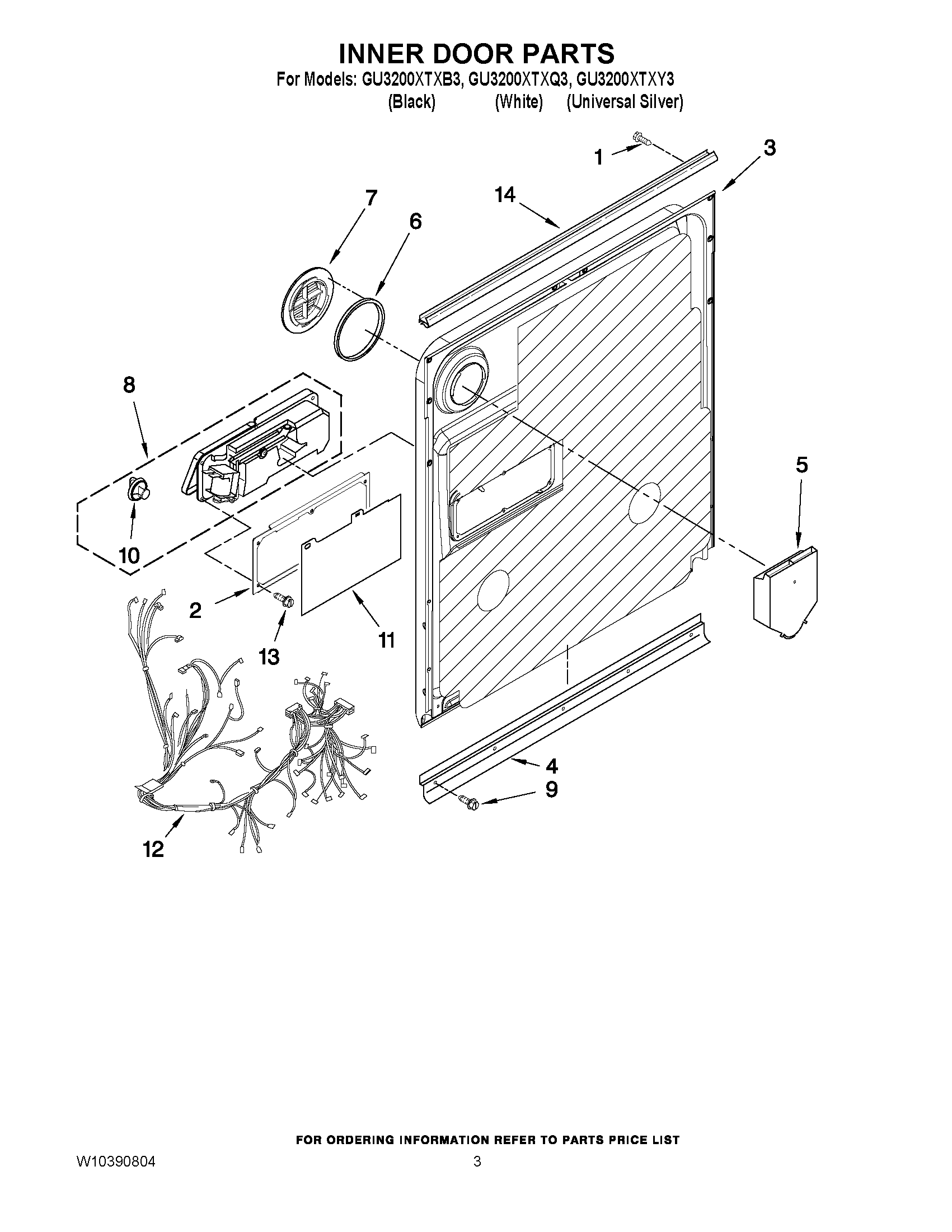

GU3200XTXB3 03 – INNER DOOR PARTS

GU3200XTXB3 03 – INNER DOOR PARTS

Written by

in

GU3200XTXB3 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
3WPW10164357 Whirlpool Dishwasher Inner Door
4WP8268937 Whirlpool Dishwasher Air Inlet
5W10258708 Whirlpool Dishwasher Vent
6WP8269259 Whirlpool Air Vent Gasket
7WP8545536 Whirlpool Dishwasher Deflector
8WPW10195175 Whirlpool Dishwasher Detergent Dispenser
9W11631670 Whirlpool Screw
10WP8558307 Whirlpool Rinse Aid Dispenser Cap
11SHIELD
12WPW10413098 Whirlpool Dishwasher Wire Harness
13WPW10177098 Whirlpool Dishwasher Screw
14WP8535660 Whirlpool Dishwasher Seal
