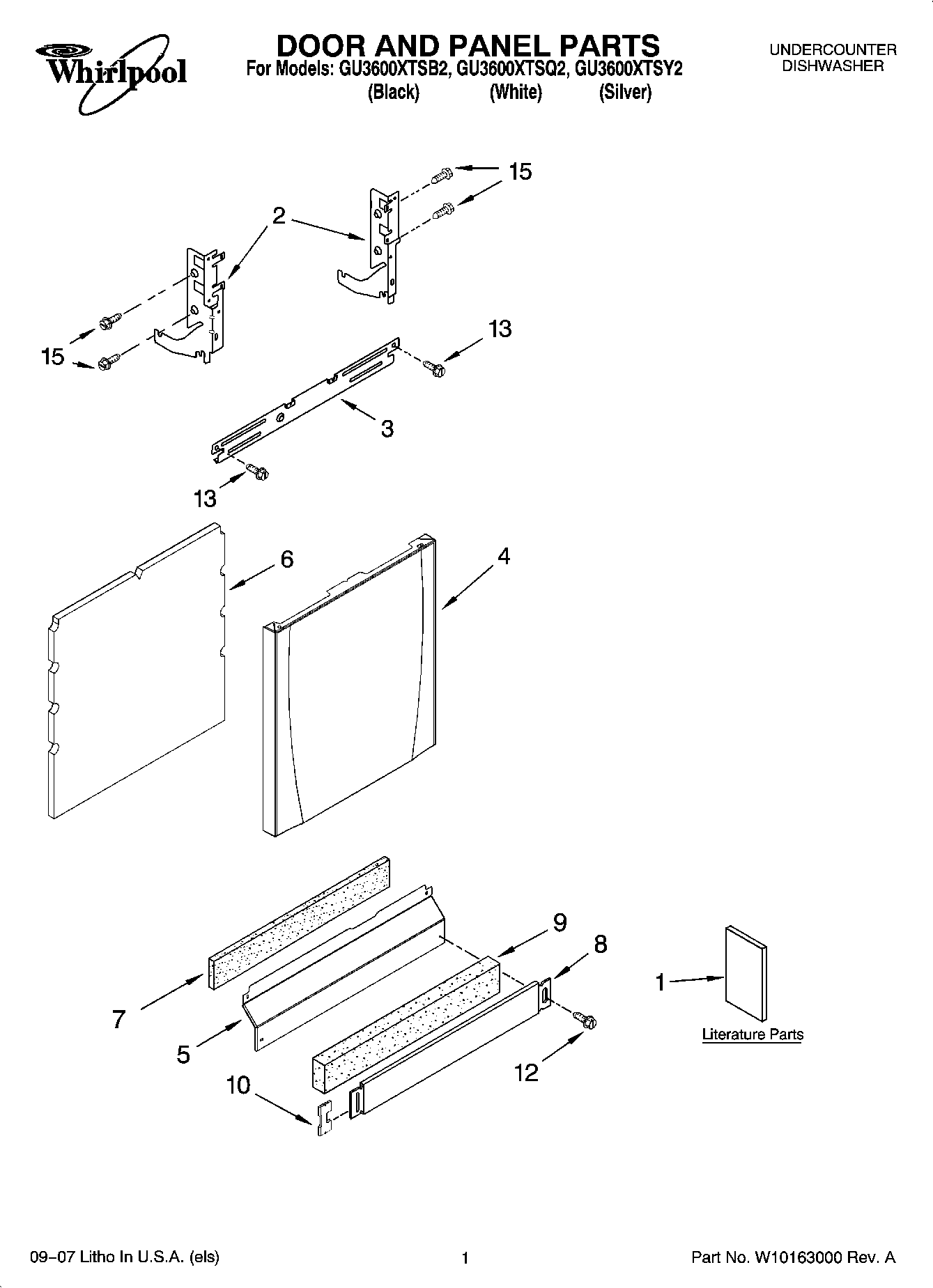

GU3600XTSY2 01 – DOOR AND PANEL PARTS

GU3600XTSY2 01 – DOOR AND PANEL PARTS

Written by

in

GU3600XTSY2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Tech Sheet
1Guide, Use & Care
1Instructions, Installation
1Energy Guide
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4Panel Front (Black)
4Panel Front (White)
4Panel Front (Stainless)
5W10909066 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7SHIELD
8WPW10586591 Whirlpool Dishwasher Toe Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
10WP8269016 Whirlpool Clip Assembly
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
