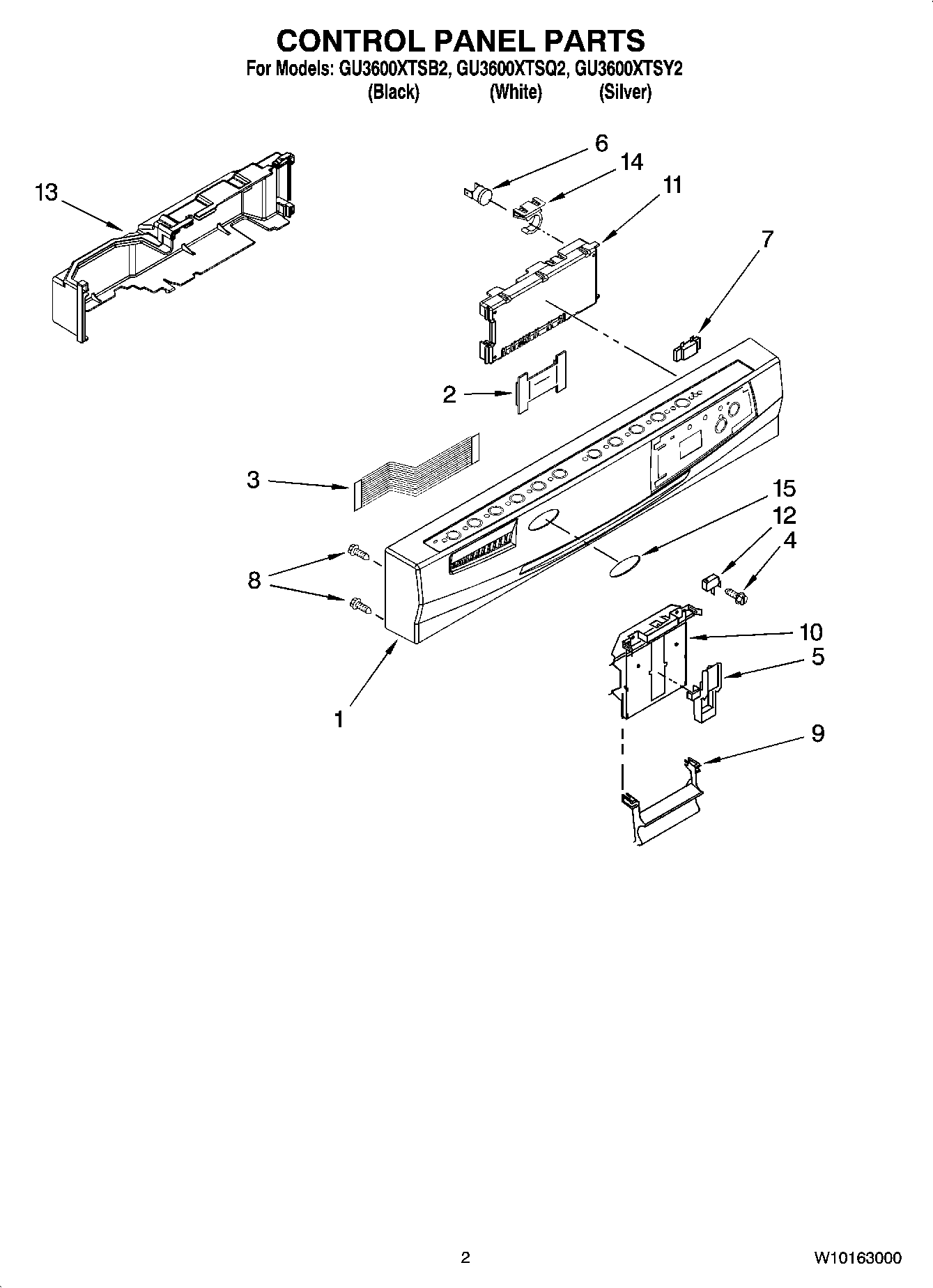

GU3600XTSY2 02 – CONTROL PANEL PARTS
Written by
in
GU3600XTSY2 02 – CONTROL PANEL PARTS
Products
Position
Product
1
Console Asm. (Includes Active Overlay & Insert) (Black)
1
Console Asm. (Includes Active Overlay & Insert) (Silver)
1
Console Asm. (Includes Active Overlay & Insert) (White)
2
Board, Interconnect
3
Cable, Ribbon
4
WP3400412 Whirlpool Dishwasher Screw
5
WP8524471 Whirlpool Dishwasher Actuator
6
W10258275 Whirlpool Dishwasher Bimetal Fuse
7
WP8269206 Whirlpool Dishwasher Display
8
WPW10348409 Whirlpool Screw
9
8575334 Whirlpool Dishwasher Handle
9
Handle, Latch (Black)
9
Handle, Latch (White)
10
8193882 Whirlpool Dishwasher Primary Latch Bolt
11
WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
12
WP8269209 Whirlpool Door Switch
13
Cover, Control Shield
14
Clip, BI-Metal
15
9757613 Whirlpool Oven Nameplate
←
